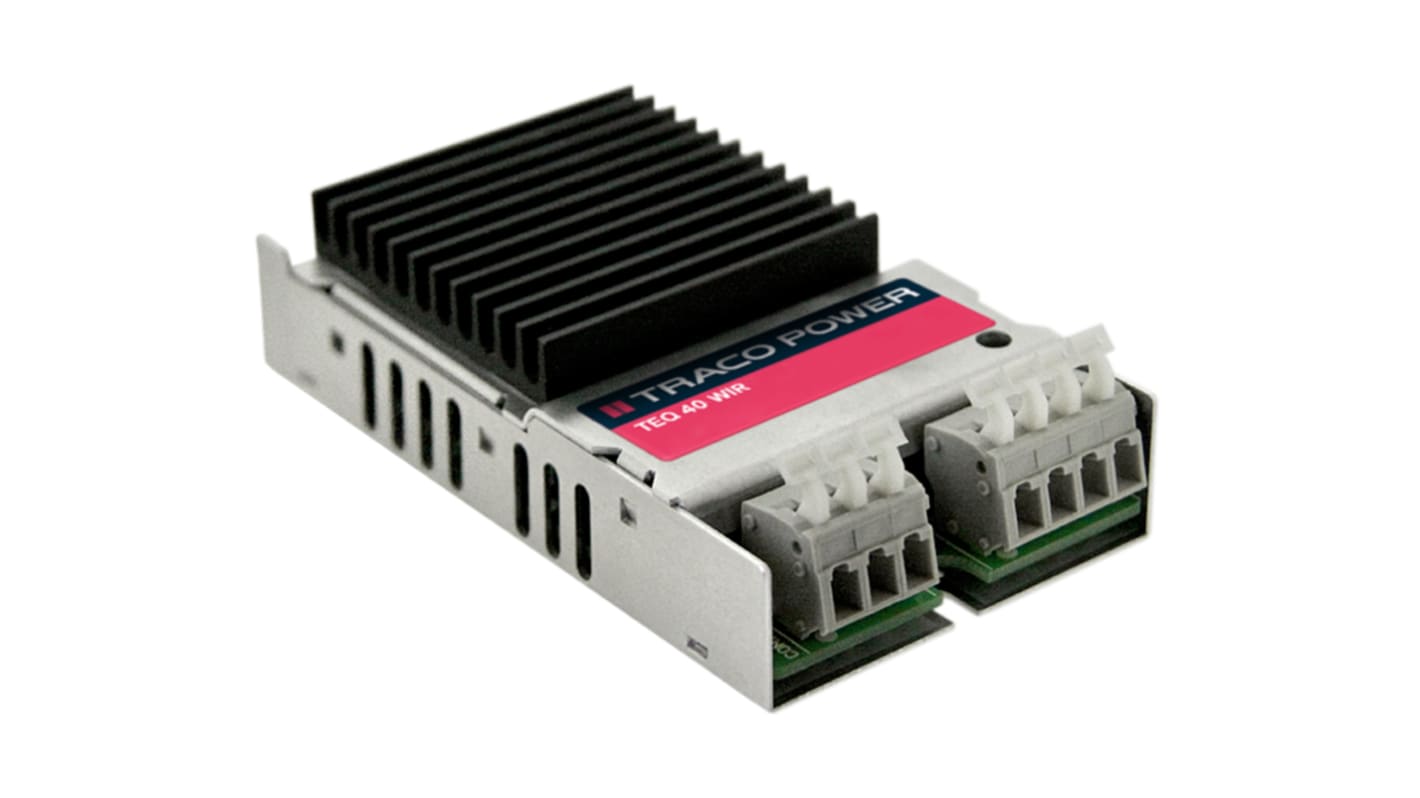

TRACOPOWER TEQ 40WIR DC-DC Converter, 12V dc/ 3.33A Output, 43 → 160 V dc Input, 40W, Chassis Mount, +83°C Max
- RS Stock No.:
- 135-3715
- Mfr. Part No.:
- TEQ 40-7212WIR
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£158.50
(exc. VAT)
£190.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £158.50 |
| 5 - 9 | £153.75 |
| 10 - 24 | £148.99 |
| 25 - 49 | £142.64 |
| 50 + | £136.31 |
*price indicative
- RS Stock No.:
- 135-3715
- Mfr. Part No.:
- TEQ 40-7212WIR
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 43 → 160 V dc | |
| Power Rating | 40W | |
| Input Voltage Nominal | 110 V dc | |
| Output Current | 3.33A | |
| Mounting Type | Chassis Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Isolation Voltage | 3kV dc | |
| Width | 57.2mm | |
| Depth | 26.1mm | |
| Length | 103mm | |
| Series | TEQ 40WIR | |
| Railway Approved | Yes | |
| Load Regulation | 0.01 | |
| Efficiency | 90% | |
| Standards Met | EN 50155, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61373, IEC/EN 60950-1, MIL-HDBK-217F, MIL-STD-810F, UL 60950-1 | |
| Maximum Temperature | +83°C | |
| Minimum Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 12V dc | ||
Input Voltage Range 43 → 160 V dc | ||
Power Rating 40W | ||
Input Voltage Nominal 110 V dc | ||
Output Current 3.33A | ||
Mounting Type Chassis Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Isolation Voltage 3kV dc | ||
Width 57.2mm | ||
Depth 26.1mm | ||
Length 103mm | ||
Series TEQ 40WIR | ||
Railway Approved Yes | ||
Load Regulation 0.01 | ||
Efficiency 90% | ||
Standards Met EN 50155, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61373, IEC/EN 60950-1, MIL-HDBK-217F, MIL-STD-810F, UL 60950-1 | ||
Maximum Temperature +83°C | ||
Minimum Temperature -40°C | ||
TRACOPOWER TEQ 40WIR Series DC-DC Converter, 12V DC Output Voltage, 40W Power Rating - TEQ 40-7212WIR
This isolated DC-DC converter provides a stable output of 12V DC from an extensive input voltage range of 43 to 160V DC. With compact dimensions and a robust chassis mount design, it caters to industrial application demands, particularly where PCB mounting is impractical. The converter's efficiency and operational reliability make it suitable for various critical applications.
Features & Benefits
• Ultra-wide input voltage range for flexible use
• Efficiency of up to 90% to minimise power loss
• Under voltage lock-out protection to enhance system reliability
• Single output design ensures consistent power delivery
• Complies with EN 50155 regulations for railway applications
• Efficiency of up to 90% to minimise power loss
• Under voltage lock-out protection to enhance system reliability
• Single output design ensures consistent power delivery
• Complies with EN 50155 regulations for railway applications
Applications
• High voltage input in automation systems
• Powering control equipment in harsh environments
• Railway requiring robust power supplies
• Various industrial equipment needing efficient power conversion
• Powering control equipment in harsh environments
• Railway requiring robust power supplies
• Various industrial equipment needing efficient power conversion
How does the converter handle input voltage fluctuations?
It maintains a stable output during variations, ensuring dependable performance.
What type of mounting is compatible with this converter?
It is specifically designed for chassis mounting, facilitating integration into various systems.
Can this converter function in extreme temperatures?
Yes, it operates efficiently between -40°C and +83°C, catering to harsh environmental conditions.
Is there a protection feature against short circuits?
Yes, it includes short circuit protection to ensure safety during operation.
