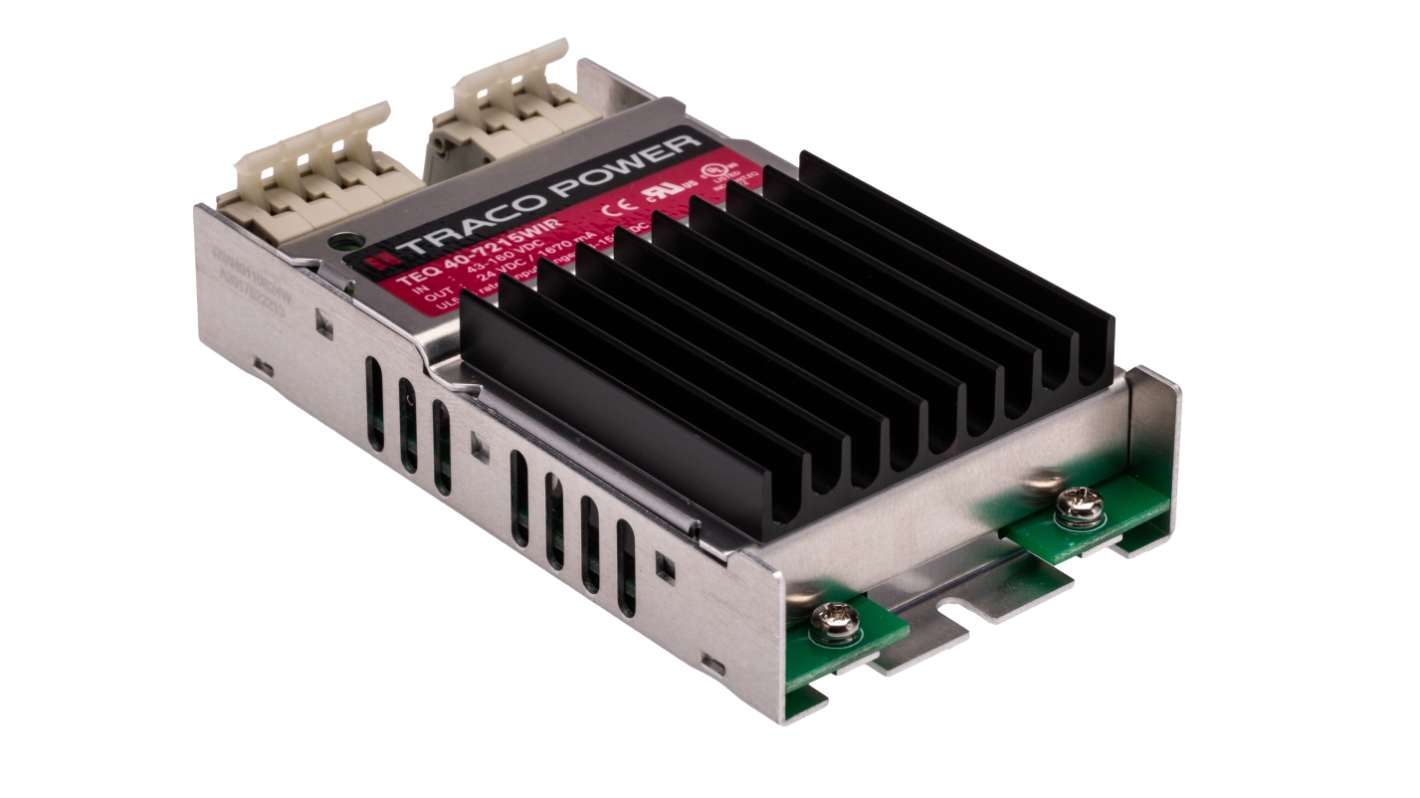

TRACOPOWER TEQ 40WIR DC-DC Converter, 24V dc/ 1.67A Output, 43 → 160 V dc Input, 40W, Chassis Mount, +83°C Max
- RS Stock No.:
- 135-3717
- Mfr. Part No.:
- TEQ 40-7215WIR
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£136.87
(exc. VAT)
£164.24
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
- Plus 45 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £136.87 |
| 5 - 9 | £132.76 |
| 10 - 24 | £128.66 |
| 25 - 49 | £123.17 |
| 50 + | £117.70 |
*price indicative
- RS Stock No.:
- 135-3717
- Mfr. Part No.:
- TEQ 40-7215WIR
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 24V dc | |
| Input Voltage Range | 43 → 160 V dc | |
| Power Rating | 40W | |
| Input Voltage Nominal | 110 V dc | |
| Output Current | 1.67A | |
| Mounting Type | Chassis Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Isolation Voltage | 3kV dc | |
| Length | 103mm | |
| Width | 57.2mm | |
| Depth | 26.1mm | |
| Series | TEQ 40WIR | |
| Railway Approved | Yes | |
| Load Regulation | 0.01 | |
| Maximum Temperature | +83°C | |
| Minimum Temperature | -40°C | |
| Efficiency | 89% | |
| Standards Met | EN 50155, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61373, IEC/EN 60950-1, MIL-HDBK-217F, MIL-STD-810F, UL 60950-1 | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 24V dc | ||
Input Voltage Range 43 → 160 V dc | ||
Power Rating 40W | ||
Input Voltage Nominal 110 V dc | ||
Output Current 1.67A | ||
Mounting Type Chassis Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Isolation Voltage 3kV dc | ||
Length 103mm | ||
Width 57.2mm | ||
Depth 26.1mm | ||
Series TEQ 40WIR | ||
Railway Approved Yes | ||
Load Regulation 0.01 | ||
Maximum Temperature +83°C | ||
Minimum Temperature -40°C | ||
Efficiency 89% | ||
Standards Met EN 50155, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61373, IEC/EN 60950-1, MIL-HDBK-217F, MIL-STD-810F, UL 60950-1 | ||
TRACOPOWER TEQ 40WIR Series DC-DC Converter, 24V DC Output Voltage, 40W Power Rating - TEQ 40-7215WIR
This isolated DC-DC converter is essential for transforming high input voltages into stabilised 24V DC outputs, which is critical for various automation and electrical engineering applications. With an input voltage range of 43 to 160V DC, it is particularly well-suited for railway and industrial environments where efficiency and dependability are critical.
Features & Benefits
• Under voltage lock-out circuit prevents operation at low voltage
• Overtemperature protection ensures safe functioning under high loads
• Short circuit protection enhances safety
• High efficiency rating of 89% minimises energy loss
• Compact chassis mount design allows for versatile installation
• Compliance with EN 50155 confirms suitability for railway applications
• Overtemperature protection ensures safe functioning under high loads
• Short circuit protection enhances safety
• High efficiency rating of 89% minimises energy loss
• Compact chassis mount design allows for versatile installation
• Compliance with EN 50155 confirms suitability for railway applications
Applications
• Used in railway control systems
• Integrated within industrial equipment and machinery
• Employed in high voltage power distribution networks
• Utilised as a power supply for IIoT
• Suitable for telecommunications and electronic devices
• Integrated within industrial equipment and machinery
• Employed in high voltage power distribution networks
• Utilised as a power supply for IIoT
• Suitable for telecommunications and electronic devices
How can safe installation be ensured for high current applications?
It is advisable to use appropriate fuses based on the input voltage to prevent overcurrent situations, with specific values provided in the specifications.
What environmental conditions can it withstand during operation?
The converter can operate in temperatures from -40 to +83°C, making it capable of handling various demanding conditions.
Does it maintain output voltage stability under varying loads?
Yes, it features robust load regulation of 0.01, ensuring stable output voltage despite significant changes in load conditions.
How can its operational status be monitored?
An output LED indicator is included for easy visual confirmation of operational status during use.
