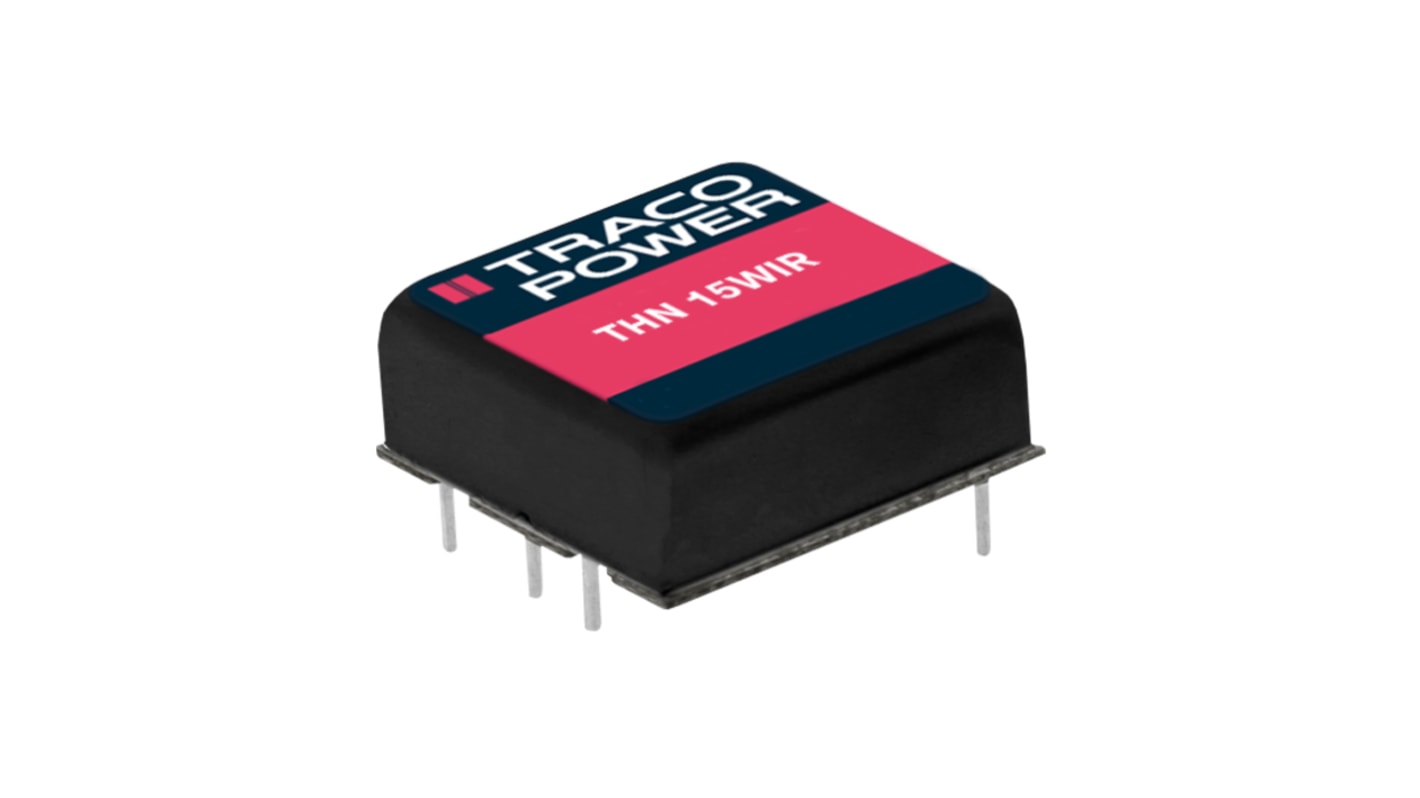

TRACOPOWER THN 15WIR DC-DC Converter, 15V dc/ 1A Output, 9 → 36 V dc Input, 15W, PCB Mount, +85°C Max Temp -40°C
- RS Stock No.:
- 135-1528
- Mfr. Part No.:
- THN 15-2413WIR
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£425.94
(exc. VAT)
£511.13
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 14 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £425.94 | £42.594 |
| 5 - 9 | £413.16 | £41.316 |
| 10 - 24 | £400.38 | £40.038 |
| 25 - 49 | £383.35 | £38.335 |
| 50 + | £366.31 | £36.631 |
*price indicative
- RS Stock No.:
- 135-1528
- Mfr. Part No.:
- THN 15-2413WIR
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 15V dc | |
| Input Voltage Range | 9 → 36 V dc | |
| Power Rating | 15W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 1A | |
| Mounting Type | PCB Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | -10 %, +20% | |
| Package | DIP-6 | |
| Isolation Voltage | 3kV dc | |
| Depth | 9.9mm | |
| Width | 25.4mm | |
| Length | 25.4mm | |
| Series | THN 15WIR | |
| Railway Approved | Yes | |
| Load Regulation | 0.002 | |
| Minimum Temperature | -40°C | |
| Standards Met | CB Scheme, CE Certified, cULus Recognised, EMI 55022 Class A, EN 45545-2, IEC/EN 60950-1, UL 60950-1 | |
| Maximum Temperature | +85°C | |
| Efficiency | 89% | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 15V dc | ||
Input Voltage Range 9 → 36 V dc | ||
Power Rating 15W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 1A | ||
Mounting Type PCB Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range -10 %, +20% | ||
Package DIP-6 | ||
Isolation Voltage 3kV dc | ||
Depth 9.9mm | ||
Width 25.4mm | ||
Length 25.4mm | ||
Series THN 15WIR | ||
Railway Approved Yes | ||
Load Regulation 0.002 | ||
Minimum Temperature -40°C | ||
Standards Met CB Scheme, CE Certified, cULus Recognised, EMI 55022 Class A, EN 45545-2, IEC/EN 60950-1, UL 60950-1 | ||
Maximum Temperature +85°C | ||
Efficiency 89% | ||
