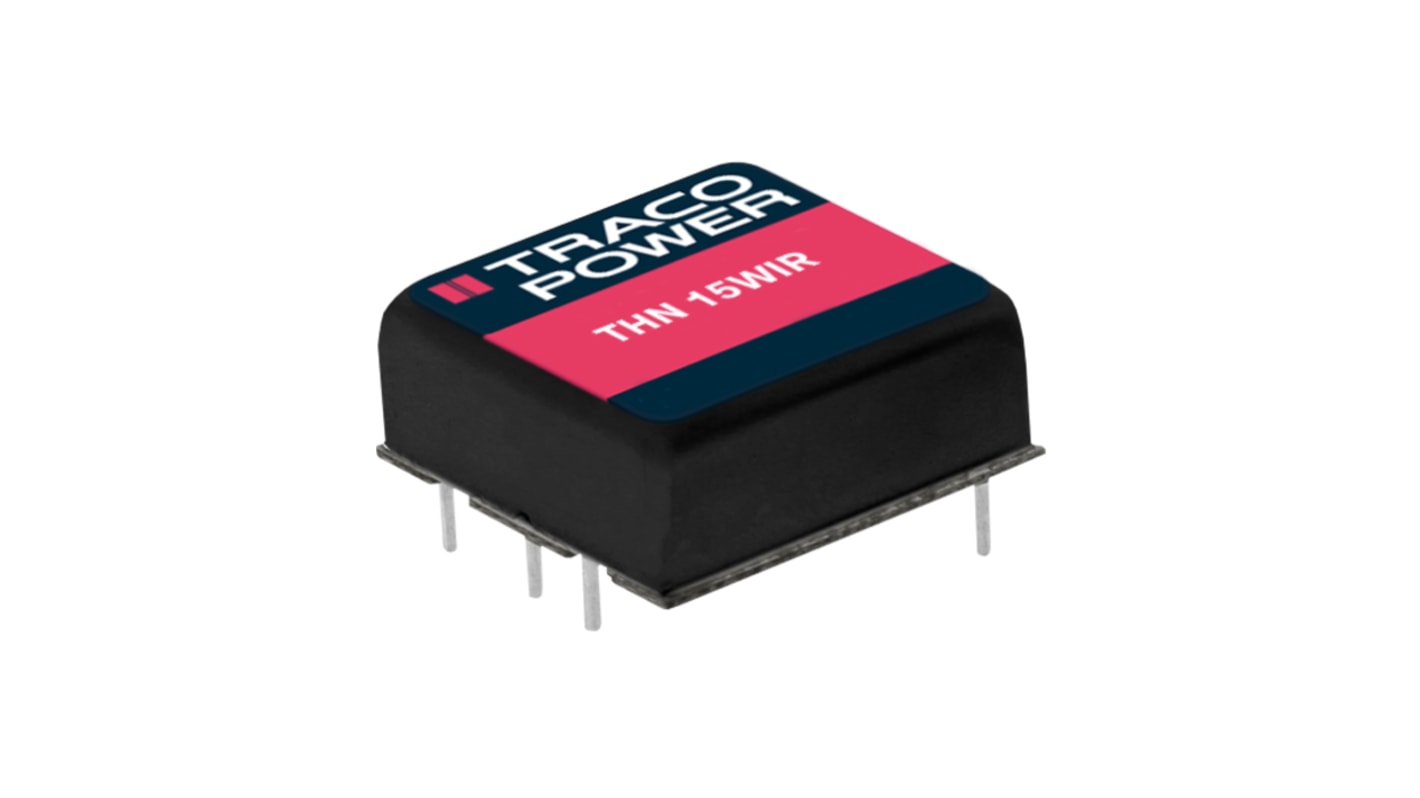

TRACOPOWER THN 15WIR DC-DC Converter, 12V dc/ 1.3A Output, 9 → 36 V dc Input, 15W, PCB Mount, +85°C Max Temp

RS Stock No.:: 135-1527
Mfr. Part No.:: THN 15-2412WIR
Brand:: TRACOPOWER

TRACOPOWER THN 15WIR DC-DC Converter, 12V dc/ 1.3A Output, 9 → 36 V dc Input, 15W, PCB Mount, +85°C Max Temp

Bulk discount available

Subtotal (1 tube of 10 units)*

£411.88

(exc. VAT)

£494.26

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

6 unit(s) shipping from 29 October 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)	Per Tube	Per unit*
1 - 4	£411.88	£41.188
5 - 9	£399.52	£39.952
10 - 24	£387.16	£38.716
25 - 49	£370.69	£37.069
50 +	£354.21	£35.421

*price indicative

RS Stock No.:: 135-1527
Mfr. Part No.:: THN 15-2412WIR
Brand:: TRACOPOWER

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TRACOPOWER
	Output Voltage	12V dc
	Input Voltage Range	9 → 36 V dc
	Power Rating	15W
	Input Voltage Nominal	24 V dc
	Output Current	1.3A
	Mounting Type	PCB Mount
	Isolated	Yes
	Number of Outputs	1
	Output Voltage Adjustment Range	-10 %, +20%
	Package	DIP-6
	Isolation Voltage	3kV dc
	Depth	9.9mm
	Length	25.4mm
	Width	25.4mm
	Railway Approved	Yes
	Series	THN 15WIR
	Load Regulation	0.002
	Efficiency	89%
	Minimum Temperature	-40°C
	Maximum Temperature	+85°C
	Standards Met	CB Scheme, CE Certified, cULus Recognised, EMI 55022 Class A, EN 45545-2, IEC/EN 60950-1, UL 60950-1

	Select all
	Brand TRACOPOWER
	Output Voltage 12V dc
	Input Voltage Range 9 → 36 V dc
	Power Rating 15W
	Input Voltage Nominal 24 V dc
	Output Current 1.3A
	Mounting Type PCB Mount
	Isolated Yes
	Number of Outputs 1
	Output Voltage Adjustment Range -10 %, +20%
	Package DIP-6
	Isolation Voltage 3kV dc
	Depth 9.9mm
	Length 25.4mm
	Width 25.4mm
	Railway Approved Yes
	Series THN 15WIR
	Load Regulation 0.002
	Efficiency 89%
	Minimum Temperature -40°C
	Maximum Temperature +85°C
	Standards Met CB Scheme, CE Certified, cULus Recognised, EMI 55022 Class A, EN 45545-2, IEC/EN 60950-1, UL 60950-1

TRACOPOWER THN Power Rating 15WIR Series DC-DC Converter, 15W Power Rating, 12V DC Output Voltage - THN 15-2412WIR

This DC-DC converter is a compact and efficient solution designed to provide a stable 12V DC output. Measuring just 25.4mm x 25.4mm x 9.9mm, it fits seamlessly into various applications, particularly in harsh environments. The unit features an input voltage range of 9-36V DC, ensuring versatility across systems.

Features & Benefits

• Supports an ultra-wide input voltage range for flexibility
• High-efficiency operation reaching up to 89% in performance
• Integrated under-voltage lockout for enhanced reliability
• Provides 3 kV DC isolation for optimal safety and performance
• Adjustable output voltage accommodates specific application needs

Applications

• Installed in railway systems for power supply stability
• Utilised in automation equipment for reliable performance
• Deployed in electronics for robust power management
• Integrated into transportation devices ensuring compliance with safety standards

What input voltage options does this unit offer for diverse applications?

It operates within a wide input voltage range of 9-36V DC, which allows for flexibility in various systems, accommodating different power requirements.

How does this unit handle demanding environmental conditions?

The robust design includes features to resist electromagnetic interference, shock, vibration, and thermal shock, making it suited for harsh environments.

Can output voltage be adjusted to meet specific needs?

Yes, the output voltage can be adjusted within a range of -10% to +20%, enabling fine-tuning for diverse applications.

What isolation standards does this converter meet for safety?

It provides a high level of safety with 3 kV DC isolation and meets several standards, ensuring operational safety in critical applications, especially in railway systems.
