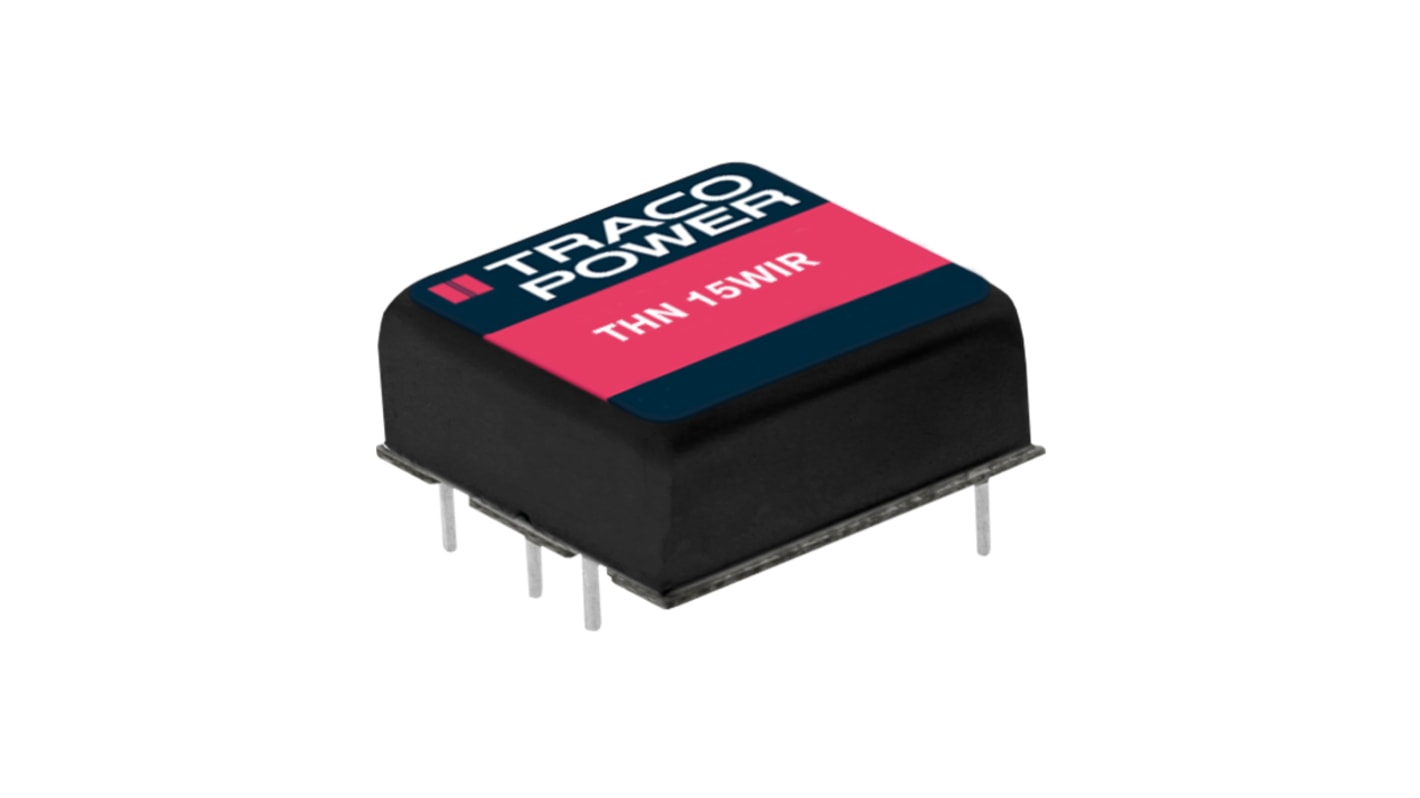

TRACOPOWER THN 15WIR DC/DC Converter, 5V dc/ 3 A, 36V dc Input, 9V Input 15 W, PCB, 90 °C Max Temp -40 °C Min Temp
- RS Stock No.:
- 135-1526
- Mfr. Part No.:
- THN 15-2411WIR
- Brand:
- TRACOPOWER
Temporarily out of stock
- RS Stock No.:
- 135-1526
- Mfr. Part No.:
- THN 15-2411WIR
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage 1 | 5V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 36V dc | |
| Minimum Input Voltage | 9V | |
| Output Current 1 | 3A | |
| Mount Type | PCB | |
| Input Ratio | 4:1 | |
| Number of Outputs | 1 | |
| MTBF | 1600000h | |
| Output Voltage Adjustment Range | ±10 % | |
| Isolation Voltage | 3kV dc | |
| Maximum Output Power | 15W | |
| Depth | 9.9mm | |
| Length | 25.4mm | |
| Series | THN 15WIR | |
| Width | 25.4mm | |
| Standards/Approvals | No | |
| Maximum Operating Temperature | 90°C | |
| Efficiency | 90% | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 1 5V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 36V dc | ||
Minimum Input Voltage 9V | ||
Output Current 1 3A | ||
Mount Type PCB | ||
Input Ratio 4:1 | ||
Number of Outputs 1 | ||
MTBF 1600000h | ||
Output Voltage Adjustment Range ±10 % | ||
Isolation Voltage 3kV dc | ||
Maximum Output Power 15W | ||
Depth 9.9mm | ||
Length 25.4mm | ||
Series THN 15WIR | ||
Width 25.4mm | ||
Standards/Approvals No | ||
Maximum Operating Temperature 90°C | ||
Efficiency 90% | ||
Minimum Operating Temperature -40°C | ||
TRACOPOWER THN 15WIR Series DC-DC Converter, 0.89 Efficiency, 3kV DC Isolation Voltage - THN 15-2411WIR
This Compact DC-DC converter is designed to provide a dependable power supply in various environments. With an input voltage range of 9 to 36V DC and a 5V DC output, it is suited for a range of industrial applications. The converter is railway approved, ensuring compliance with strict industry standards, making it appropriate for automation, electronics, and transportation sectors.
Features & Benefits
• High efficiency of up to 91% ensures optimal operation
• Isolated design enhances safety and reliability
• Compact PCB mount design facilitates system integration
• Adjustable output voltage adds flexibility for different applications
• Operating temperature range of -40°C to +90°C caters to extreme conditions
• Under-voltage lockout feature protects against damage from low input voltages
Applications
• Power conversion for railway systems
• Suitable for industrial automation and control
• Utilised in telecommunications and remote monitoring
• Designed for rugged environments requiring dependable power supply
How does it handle fluctuations in input voltage?
It features an under-voltage lockout to maintain operational integrity.
Can it be used in outdoor applications?
Yes, its broad operating temperature range makes it suitable for outdoor use.
Is installation straightforward on various circuit boards?
Yes, the PCB mount design allows for easy integration with circuit boards.
What kind of load can it manage?
It can efficiently handle a maximum output current of 3A.
