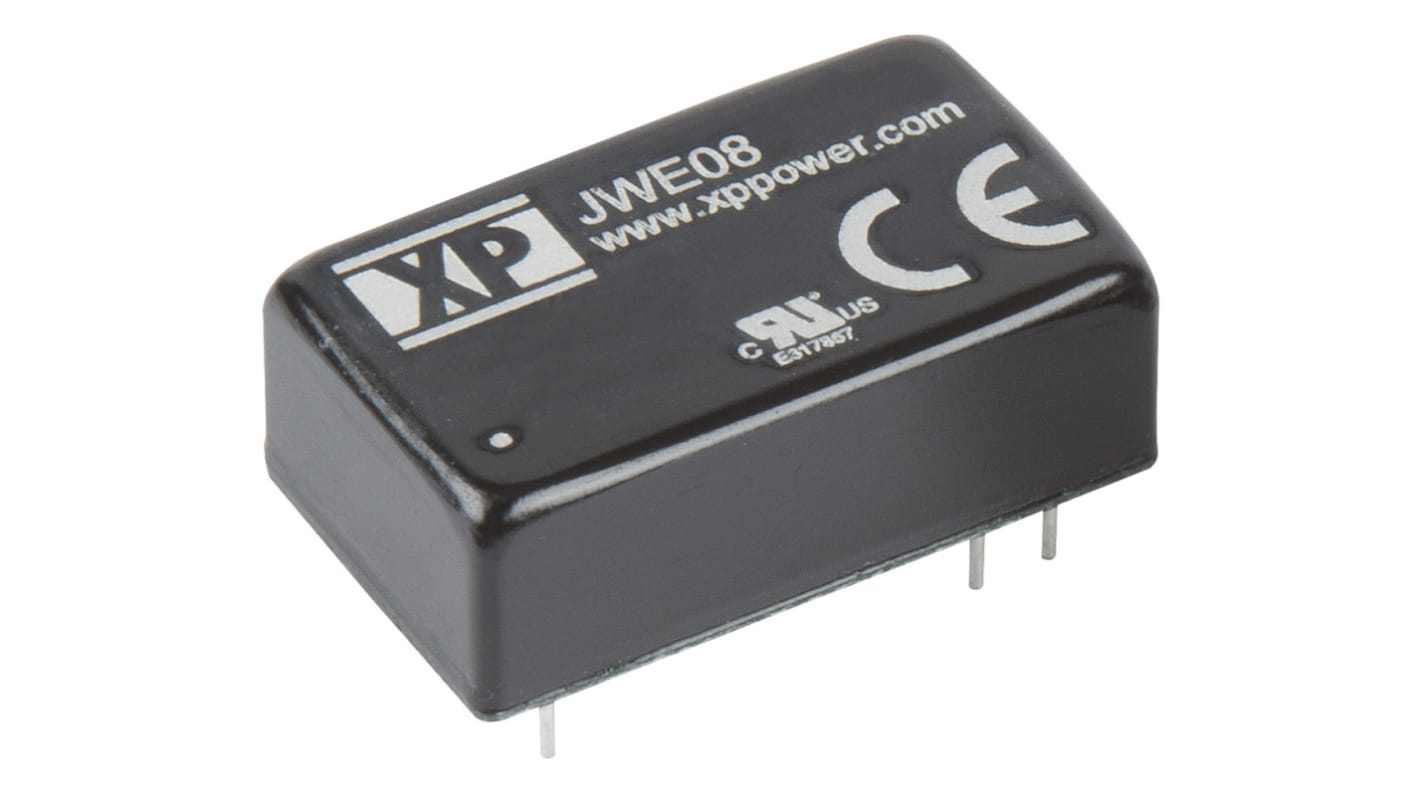

XP Power JWE08 DC-DC Converter, 24V dc/ 335mA Output, 18 → 75 V dc Input, 8W, PCB Mount, +105°C Max Temp -40°C
- RS Stock No.:
- 135-1347
- Mfr. Part No.:
- JWE0848S24
- Brand:
- XP Power
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 135-1347
- Mfr. Part No.:
- JWE0848S24
- Brand:
- XP Power
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | 24V dc | |
| Input Voltage Range | 18 → 75 V dc | |
| Power Rating | 8W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 335mA | |
| Mounting Type | PCB Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | DIP 16 | |
| Isolation Voltage | 1.5kV dc | |
| Depth | 8mm | |
| Width | 13.7mm | |
| Length | 23.8mm | |
| Series | JWE08 | |
| Load Regulation | ±1% | |
| Standards Met | EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60950-1, ITE Approved, MIL-HDBK-217F, UL/cUL 60950-1 | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage 24V dc | ||
Input Voltage Range 18 → 75 V dc | ||
Power Rating 8W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 335mA | ||
Mounting Type PCB Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package DIP 16 | ||
Isolation Voltage 1.5kV dc | ||
Depth 8mm | ||
Width 13.7mm | ||
Length 23.8mm | ||
Series JWE08 | ||
Load Regulation ±1% | ||
Standards Met EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60950-1, ITE Approved, MIL-HDBK-217F, UL/cUL 60950-1 | ||
Minimum Temperature -40°C | ||
Maximum Temperature +105°C | ||
