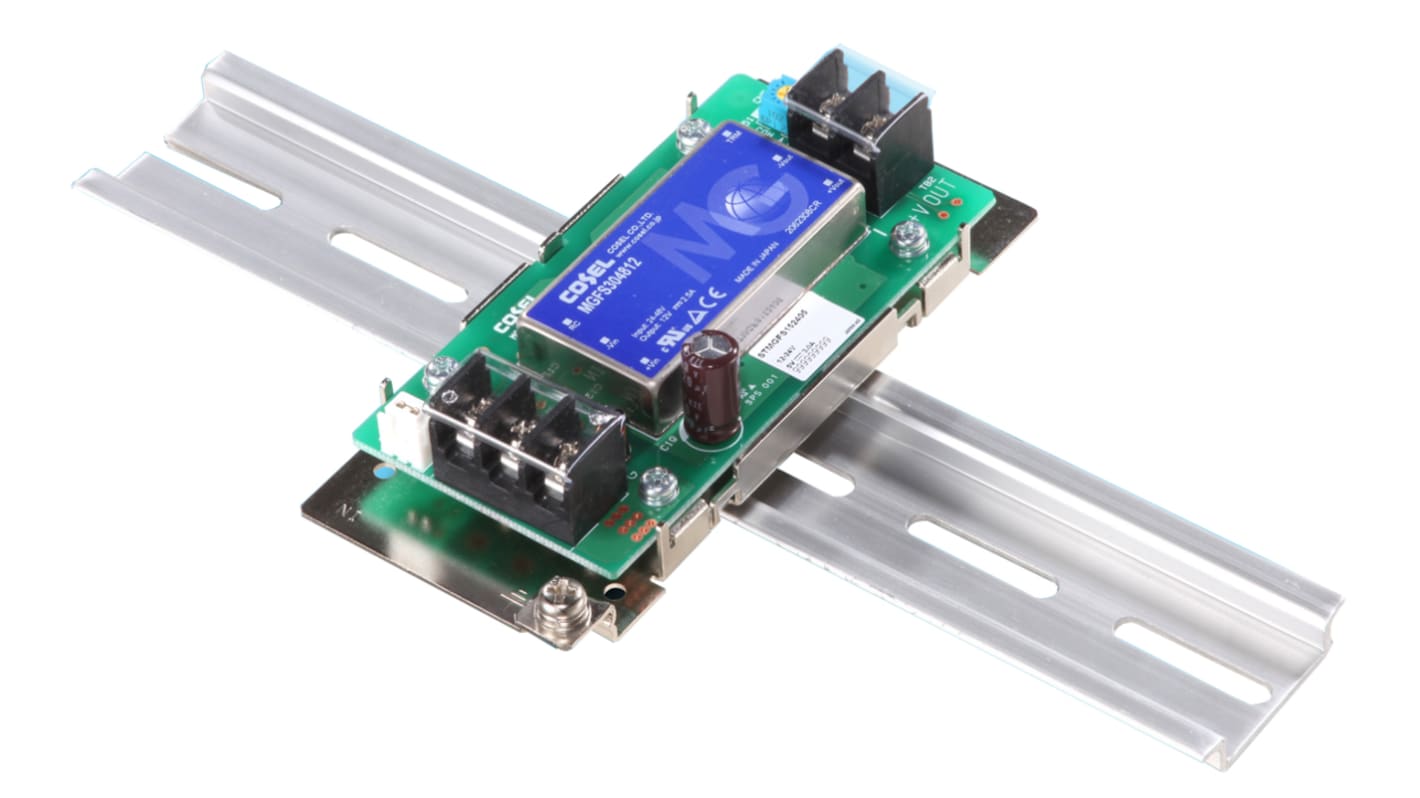

Cosel STMGFS DC-DC Converter, 12V dc/ 2.5A Output, 18 → 76 V dc Input, 30W, PCB Mount, +70°C Max Temp -20°C Min
- RS Stock No.:
- 132-7500
- Mfr. Part No.:
- STMGFS304812
- Brand:
- Cosel
Bulk discount available
Subtotal (1 unit)*
£86.81
(exc. VAT)
£104.17
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £86.81 |
| 5 - 9 | £84.20 |
| 10 - 24 | £82.46 |
| 25 - 49 | £80.73 |
| 50 + | £79.00 |
*price indicative
- RS Stock No.:
- 132-7500
- Mfr. Part No.:
- STMGFS304812
- Brand:
- Cosel
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 18 → 76 V dc | |
| Power Rating | 30W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 2.5A | |
| Mounting Type | PCB Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | 10.8 → 13.2V | |
| Isolation Voltage | 500V dc | |
| Width | 52mm | |
| Depth | 27mm | |
| Length | 117mm | |
| Series | STMGFS | |
| Load Regulation | 100mV | |
| Maximum Temperature | +70°C | |
| Efficiency | 89% | |
| Minimum Temperature | -20°C | |
| Standards Met | CE, cUL, EN 60950-1 Complies, UL 60950-1 | |
Select all | ||
|---|---|---|
Brand Cosel | ||
Output Voltage 12V dc | ||
Input Voltage Range 18 → 76 V dc | ||
Power Rating 30W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 2.5A | ||
Mounting Type PCB Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 10.8 → 13.2V | ||
Isolation Voltage 500V dc | ||
Width 52mm | ||
Depth 27mm | ||
Length 117mm | ||
Series STMGFS | ||
Load Regulation 100mV | ||
Maximum Temperature +70°C | ||
Efficiency 89% | ||
Minimum Temperature -20°C | ||
Standards Met CE, cUL, EN 60950-1 Complies, UL 60950-1 | ||
