Cosel STMGFS DC-DC Converter, 15V dc/ 2A Output, 18 → 76 V dc Input, 30W, PCB Mount, +70°C Max Temp -20°C Min
- RS Stock No.:
- 132-7508
- Mfr. Part No.:
- STMGFS304815-N1
- Brand:
- Cosel
Available to back order for despatch 31/12/2024
Added
Price Each
£75.41
(exc. VAT)
£90.49
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £75.41 |
| 5 - 9 | £73.15 |
| 10 - 24 | £71.64 |
| 25 - 49 | £70.13 |
| 50 + | £68.62 |
- RS Stock No.:
- 132-7508
- Mfr. Part No.:
- STMGFS304815-N1
- Brand:
- Cosel
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

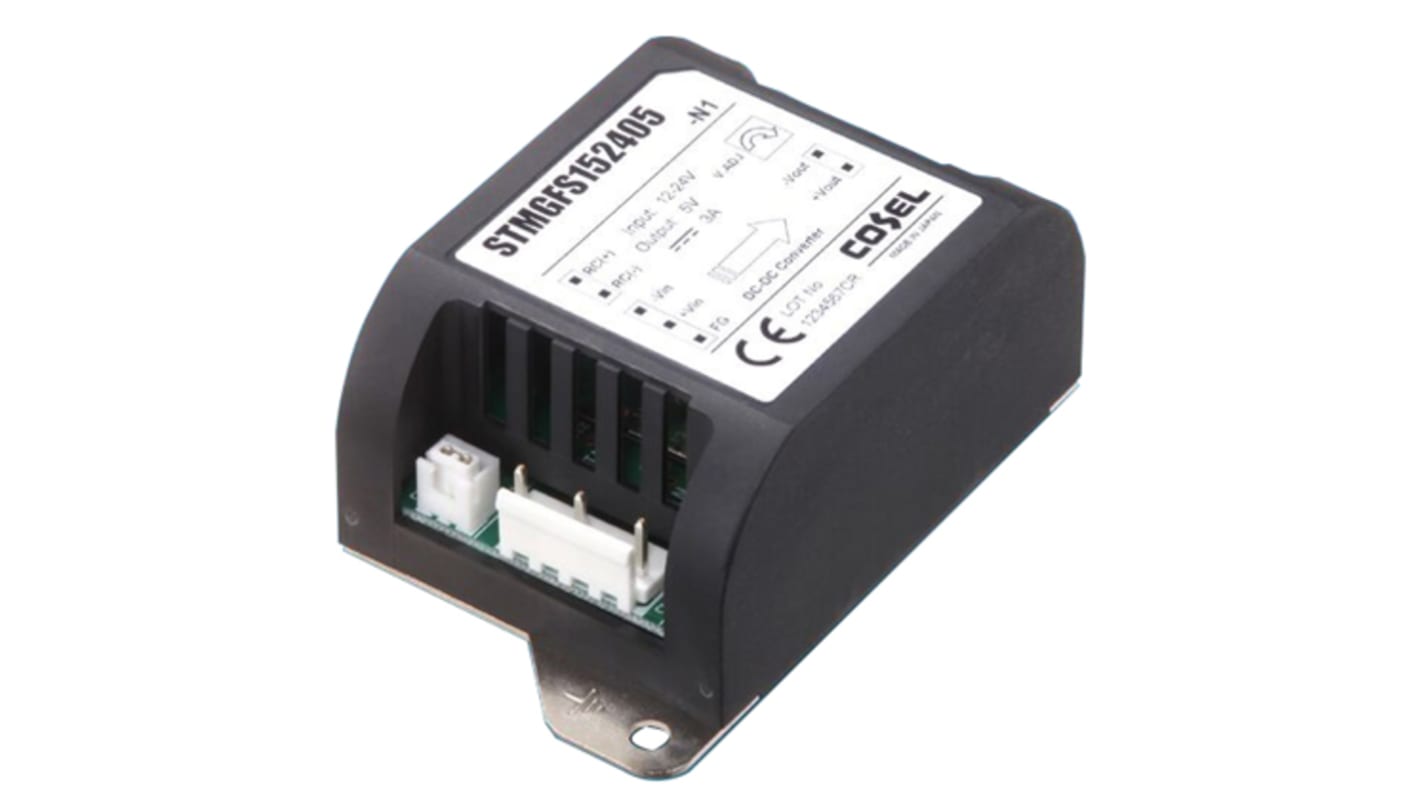

STMGFS Series - With Cover
The STMGFS Series of Cosel DC-DC converters provide a massive range of power ratings and output voltages making them versatile and suitable for many applications. All models have a convection/forced air cooling method. Highly reliable power supplies offering the best quality. 5 Year Warranty
Features and Benefits
• Isolated unit type DC-DC converter with cover (N1)
• Wide input voltage DC9-36 V/DC18-76 V
• Available connector interface (optional)
• Available case cover (optional)
• Available DIN Rail attachment (optional)
• Built in Overcurrent protection (recovery automatically)
• Built in Overvoltage protection (for STMG30)
• Built in Remote ON/OFF
• Built in Output voltage adjustment (for single output, ±10%)
• Wide input voltage DC9-36 V/DC18-76 V
• Available connector interface (optional)
• Available case cover (optional)
• Available DIN Rail attachment (optional)
• Built in Overcurrent protection (recovery automatically)
• Built in Overvoltage protection (for STMG30)
• Built in Remote ON/OFF
• Built in Output voltage adjustment (for single output, ±10%)
Cosel Isolated DC-DC Converters
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 15V dc |
| Input Voltage Range | 18 → 76 V dc |
| Power Rating | 30W |
| Input Voltage Nominal | 48 V dc |
| Output Current | 2A |
| Mounting Type | PCB Mount |
| Isolated | Yes |
| Number of Outputs | 1 |
| Output Voltage Adjustment Range | 13.5 → 16.5V |
| Isolation Voltage | 500V dc |
| Width | 52mm |
| Length | 117mm |
| Depth | 27mm |
| Series | STMGFS |
| Load Regulation | 120mV |
| Efficiency | 89% |
| Standards Met | CE, cUL, EN 60950-1 Complies, UL 60950-1 |
| Minimum Temperature | -20°C |
| Maximum Temperature | +70°C |
