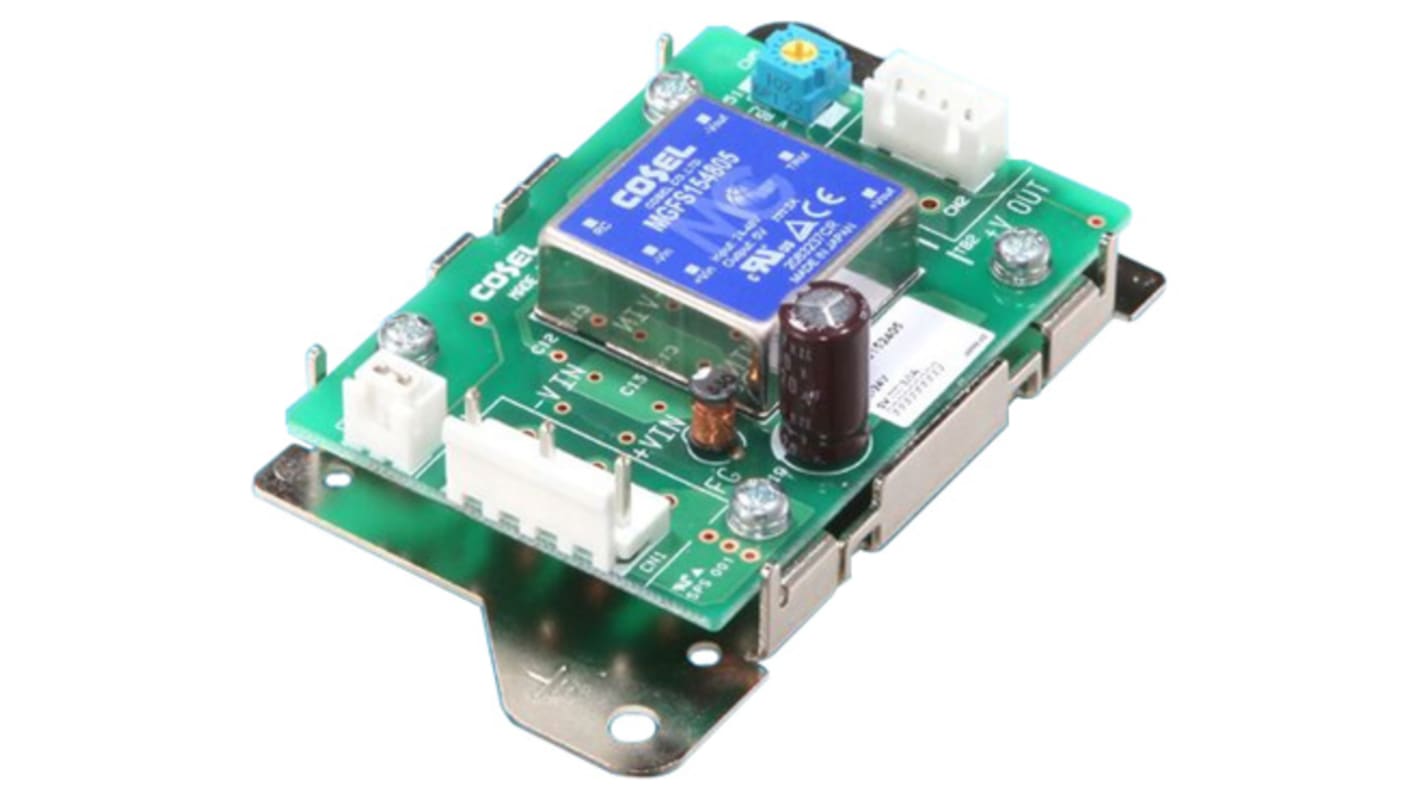

Cosel STMGFS DC-DC Converter, 12V dc/ 1.3A Output, 18 → 76 V dc Input, 15.6W, PCB Mount, +70°C Max Temp -20°C
- RS Stock No.:
- 132-7492
- Mfr. Part No.:
- STMGFS154812
- Brand:
- Cosel
Available to back order for despatch 08/05/2024
Added
Price Each
£61.44
(exc. VAT)
£73.73
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £61.44 |
| 5 - 9 | £59.60 |
| 10 - 24 | £58.37 |
| 25 - 49 | £57.14 |
| 50 + | £55.91 |
- RS Stock No.:
- 132-7492
- Mfr. Part No.:
- STMGFS154812
- Brand:
- Cosel
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
STMGFS Series
The STMGFS Series of Cosel DC-DC converters provide a massive range of power ratings and output voltages making them versatile and suitable for many applications. All models have a convection/forced air cooling method. Highly reliable power supplies offering the best quality. 5 Year Warranty
Features and Benefits
• Isolated unit type DC-DC converter
• Wide input voltage DC9-36 V/DC18-76 V
• Available connector interface (option)
• Available case cover (option)
• Available DIN Rail attachment (option)
• Built in Overcurrent protection (recovery automatically)
• Built in Overvoltage protection (for STMG30)
• Built in Remote ON/OFF
• Built in Output voltage adjustment (for single output, ±10%)
• Wide input voltage DC9-36 V/DC18-76 V
• Available connector interface (option)
• Available case cover (option)
• Available DIN Rail attachment (option)
• Built in Overcurrent protection (recovery automatically)
• Built in Overvoltage protection (for STMG30)
• Built in Remote ON/OFF
• Built in Output voltage adjustment (for single output, ±10%)
Standards
UL60950-1, C-UL, EN60950-1
Cosel Isolated DC-DC Converters
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 18 → 76 V dc |
| Power Rating | 15.6W |
| Input Voltage Nominal | 48 V dc |
| Output Current | 1.3A |
| Mounting Type | PCB Mount |
| Isolated | Yes |
| Number of Outputs | 1 |
| Output Voltage Adjustment Range | 10.8 → 13.2V |
| Isolation Voltage | 500V dc |
| Depth | 27mm |
| Width | 52mm |
| Length | 93mm |
| Series | STMGFS |
| Load Regulation | 100mV |
| Standards Met | CE, cUL, EN 60950-1 Complies, UL 60950-1 |
| Maximum Temperature | +70°C |
| Minimum Temperature | -20°C |
| Efficiency | 88% |
