TDK-Lambda CCG15 DC-DC Converter, 12V dc/ 1.3A Output, 9 → 36 V dc Input, 15.6W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 126-3518
- Distrelec Article No.:
- 301-45-565
- Mfr. Part No.:
- CCG15-24-12S
- Brand:
- TDK-Lambda
Bulk discount available
Subtotal (1 unit)*
£23.45
(exc. VAT)
£28.14
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 10 unit(s) shipping from 10 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £23.45 |
5 - 9 | £22.75 |
10 - 24 | £22.05 |
25 - 49 | £21.34 |
50 + | £20.64 |
*price indicative
- RS Stock No.:
- 126-3518
- Distrelec Article No.:
- 301-45-565
- Mfr. Part No.:
- CCG15-24-12S
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TDK-Lambda | |
Output Voltage | 12V dc | |
Input Voltage Range | 9 → 36 V dc | |
Power Rating | 15.6W | |
Input Voltage Nominal | 9 → 36 V dc | |
Output Current | 1.3A | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 1 | |
Output Voltage Adjustment Range | 10.8 → 13.2V | |
Isolation Voltage | 500V dc | |
Depth | 9.9mm | |
Width | 25.4mm | |
Length | 25.4mm | |
Series | CCG15 | |
Load Regulation | 48mV | |
Minimum Temperature | -40°C | |
Efficiency | 88% | |
Maximum Temperature | +85°C | |
Standards Met | CE, EN 60950-1, UL/CSA 60950-1 | |
Select all | ||
---|---|---|
Brand TDK-Lambda | ||
Output Voltage 12V dc | ||
Input Voltage Range 9 → 36 V dc | ||
Power Rating 15.6W | ||
Input Voltage Nominal 9 → 36 V dc | ||
Output Current 1.3A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 10.8 → 13.2V | ||
Isolation Voltage 500V dc | ||
Depth 9.9mm | ||
Width 25.4mm | ||
Length 25.4mm | ||
Series CCG15 | ||
Load Regulation 48mV | ||
Minimum Temperature -40°C | ||
Efficiency 88% | ||
Maximum Temperature +85°C | ||
Standards Met CE, EN 60950-1, UL/CSA 60950-1 | ||
- COO (Country of Origin):
- JP

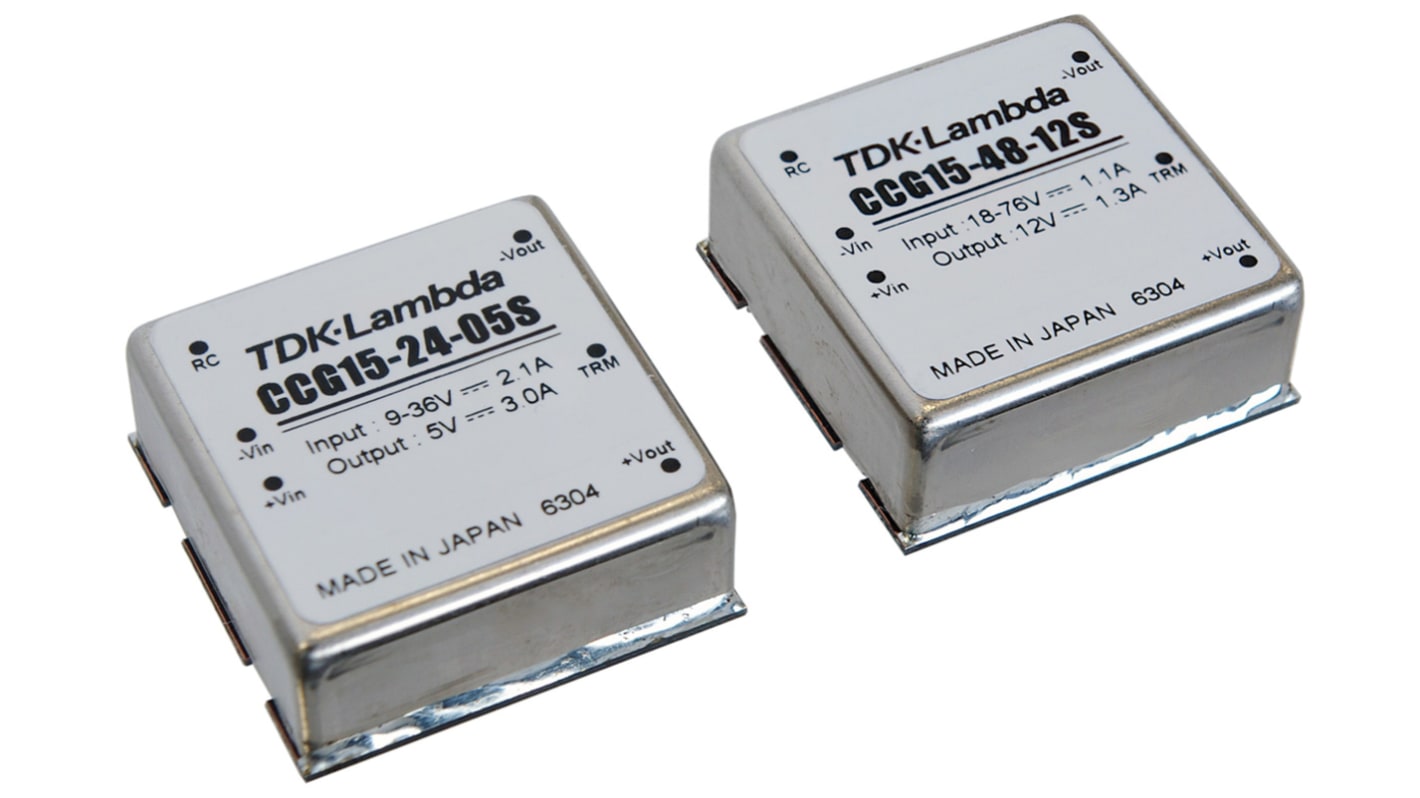

TDK-Lambda CCG15 Series Isolated DC-DC Converters
The CCG15 Series DC-DC Converters are enclosed in a metal case with 6-sided shielding for lower noise and encapsulated for strong shock and vibration performance. These high efficiency converters will operate in ambient temperatures of -40°C to +85°C. Typical applications for this series are test and measurement, broadcast, communication, general purpose industrial,factory automation and process control.
Features and Benefits
• Wide Range DC Input 9-36 or 18-76V
• Industry Standard 1" x 1" Footprint
• High Efficiency - Up to 88%
• Remote on/off
• Adjustable Output
• Six Sided Shielding
• Easier System Thermal Management
• Reduced Radiated Noise
• Industry Standard 1" x 1" Footprint
• High Efficiency - Up to 88%
• Remote on/off
• Adjustable Output
• Six Sided Shielding
• Easier System Thermal Management
• Reduced Radiated Noise
TDK-Lambda Isolated DC-DC Converters, CCG Series
