Recom R12P DC-DC Converter, -5V dc/ -200mA Output, 13.5 → 16.5 V dc Input, 2W, Through Hole, +95°C Max Temp

RS Stock No.:: 125-2017
Mfr. Part No.:: R15P22005D
Brand:: Recom

Recom R12P DC-DC Converter, -5V dc/ -200mA Output, 13.5 → 16.5 V dc Input, 2W, Through Hole, +95°C Max Temp

Bulk discount available

Price Each**

£7.04

(exc. VAT)

£8.45

(inc. VAT)

24 In stock - FREE next working day delivery available*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 - 4	£7.04
5 - 9	£6.83
10 - 24	£6.62
25 - 49	£6.40
50 +	£6.19

**price indicative

RS Stock No.:: 125-2017
Mfr. Part No.:: R15P22005D
Brand:: Recom

Recom DC/DC Converter Datasheet

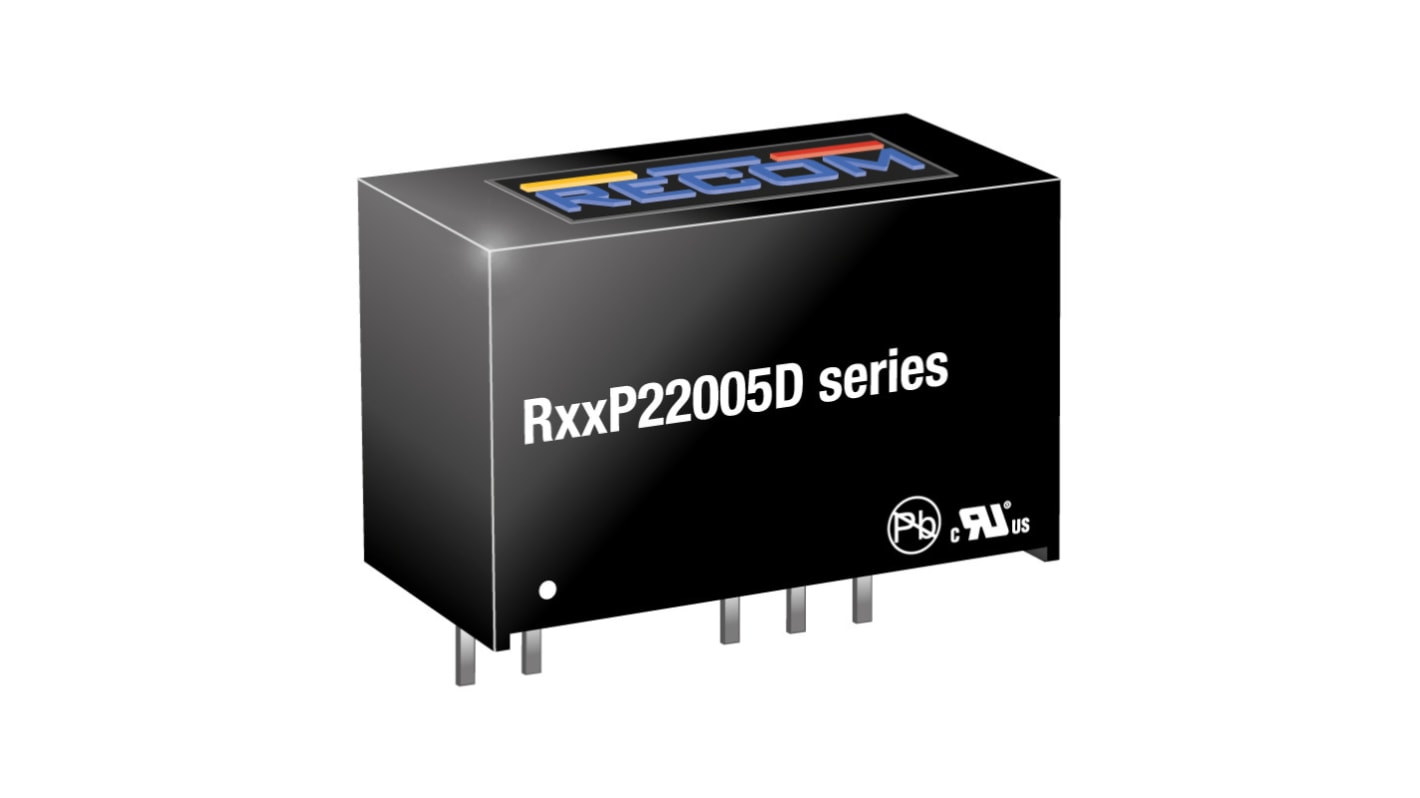

Recom RxxP22005D Series Isolated DC/DC Converter

The RxxP22005D Series are designed especially for SiC-MOSFET drivers in efficiency focused applications such as electrical vehicles, renewable-energy conversion and high powered industrial drives. These converters enable the gate driver to apply optimal turn-on and turn-off voltages (VGS) by providing asymmetrical +20V/-5V outputs. As unregulated 2 W converters, the devices feature power-sharing outputs that can be used with equal-power (asymmetrical current) or equal-current (asymmetrical power) loads. The RxxP22005D series operates at up to 85% efficiency and are available with 5 V dc, 12 V dc, 15 V dc or 24 V dc input voltages. These converters meet harsh environmental requirements with their operating temperature range of -40°C to +95 °C (with derating).

Features and Benefits

High 5.2kVDC/1 minute Isolation
Power Sharing
Efficiency up to 85%
Wide Operating Temperature Range

Standards

UL60950 and IEC/EN60950

RECOM DC-DC Converter, 15V DC Nominal Input Voltage, 2 Outputs - R12P Series - R15P22005D

To optimise the performance of your SiC-MOSFET applications, streamline your power supply with this DC-DC converter from RECOM. It's a clever piece of kit that changes different inputs into asymmetrical +20V/-5V DC outputs to drive efficiency in your operations. Through-hole mounting capability makes installation a breeze – simply punch the pins through the designated holes on your PCB and secure them. Fitting into packed systems is no problem, thanks to the unit's slimline dimensions of 19.5 (L) x 9.8 (W) x 12.5mm (D). The automatic recovery feature of the short-circuit protection helps prevent unnecessary downtime to keep you up and running.

Features & Benefits

• Short-circuit protection safeguards against damage and injuries
• 83 to 84% efficiency to cut back waste heat and keep applications cool
• Input voltage range between 13.5 and 16.5V DC for easy compatibility
• Wide operating temperature range between -40°C and +95°C for use in harsh conditions

Applications

• Automotive industry
• Renewable energy integration
• Medical equipment

Is this DC-DC converter isolated?

Yes, it's isolated so it can break up ground loops and separate parts of a circuit sensitive to noise sources.

Recom Isolated DC/DC Converter

Attribute	Value
Output Voltage	-5 V dc, 20V dc
Input Voltage Range	13.5 → 16.5 V dc
Power Rating	2W
Input Voltage Nominal	15 V dc
Output Current	-200 mA, 50 mA, ±80mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Package	SIP 7
Isolation Voltage	5.2kV dc
Width	9.8mm
Depth	12.5mm
Length	19.5mm
Series	R12P
Load Regulation	±10%
Maximum Temperature	+95°C
Standards Met	CSA C22.2 No. 60950-1-03, cULus E-358085, EN 55022, IEC/EN 60950-1, REACH Complaint, RoHS Compliant, UL 60950-1
Efficiency	83 %, 84 %
Minimum Temperature	-40°C
