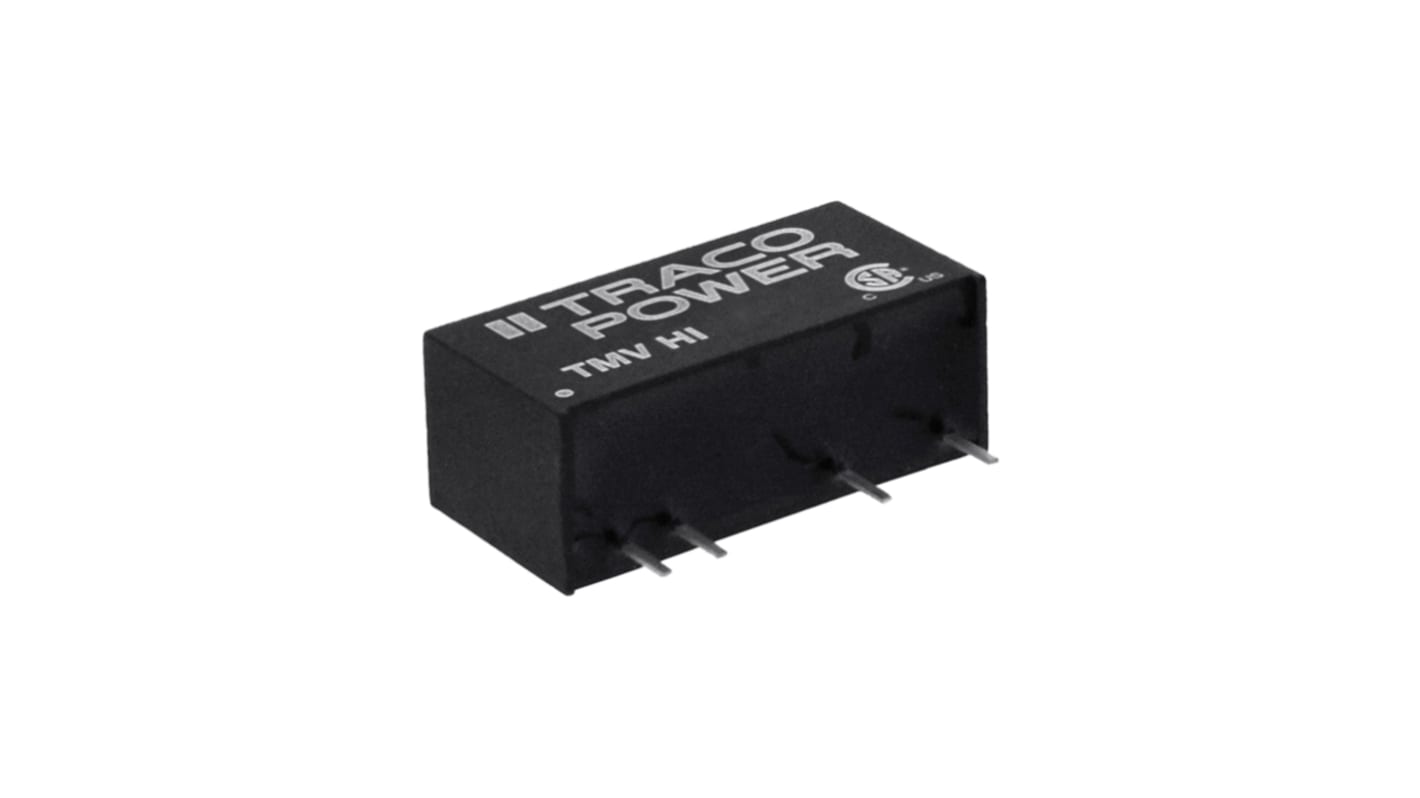

TRACOPOWER TMV HI DC/DC Converter, 9V/ 56 mA, 16.5V dc Input, 13.5V Input 1 W, PCB, 95 °C Max Temp -40 °C Min Temp,

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£87.11

(exc. VAT)

£104.53

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)
Per Tube
Per unit*
1 - 4£87.11£8.711
5 - 9£84.50£8.45
10 - 24£81.89£8.189
25 - 49£78.41£7.841
50 +£74.91£7.491

*price indicative

RS Stock No.:
166-6396
Mfr. Part No.:
TMV 1512DHI
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage 1

9V

Product Type

DC/DC Converter

Maximum Input Voltage

16.5V dc

Minimum Input Voltage

13.5V

Output Current 1

56mA

Output Current 2

56mA

Output Voltage 2

-9V

Mount Type

PCB

MTBF

2000000h

Number of Outputs

2

Isolation Voltage

5.2kV dc

Number of Pins

7

Maximum Output Power

1W

Package Type

SIP-7

Length

19.5mm

Standards/Approvals

No

Series

TMV HI

Depth

10.2mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

95°C

Efficiency

78%

COO (Country of Origin):
TW

Traco 1W SIP Unregulated Isolated DC-DC Converter - TMV-HI Serie


The Traco TMV-HI Series is a family of 1W non-regulated DC/DC converters with very high I/O isolation of 5200Vdc. These non-regulated DC/DC converters come in a very compact SIP-7 package. The TMV-HI series of DC-DC- converters is ideal for IGBT applications.

Ultra compact SIP-7 package

Very high I/O-isolation 5200 VDC

Dedicated for IGBT applications

Operating temperature range -40°C to +85°C

Industry standard pinout

Approvals

UL/cUL 60950-1
IEC/EN 60950-1

Standards

UL/cUL 60950-1 2nd edition, IEC 60950-1:2005 (2nd edition); Am 1:2009 EN 60950-1:2006/A11:2009/A1:2010/A12:2011
