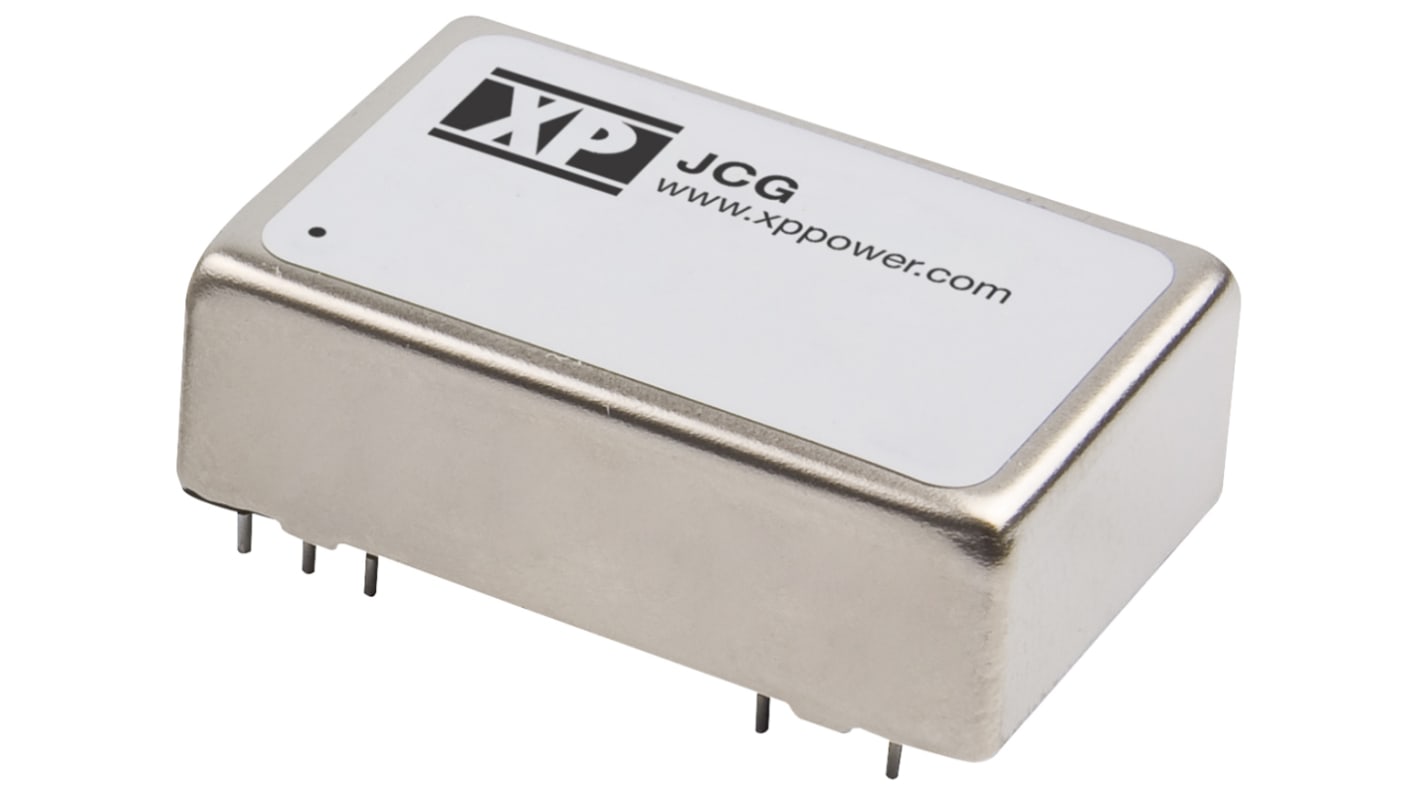

XP Power JCG DC/DC Converter, 5V dc/ 2.4 A, 18V dc Input, 9V Input 12 W, Through Hole, 100 °C Max Temp -40 °C Min Temp,

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£27.38

(exc. VAT)

£32.86

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 14 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£27.38
5 - 9£26.56
10 - 24£25.74
25 - 49£24.92
50 +£24.10

*price indicative

RS Stock No.:
122-8176
Distrelec Article No.:
302-24-612
Mfr. Part No.:
JCG1212S05
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Product Type

DC/DC Converter

Output Voltage 1

5V dc

Minimum Input Voltage

9V

Maximum Input Voltage

18V dc

Output Current 1

2.4A

Mount Type

Through Hole

Input Ratio

2:1

Number of Outputs

1

MTBF

1000000h

Number of Pins

24

Isolation Voltage

1.6kV dc

Package Type

DIP

Maximum Output Power

12W

Series

JCG

Width

20.32mm

Standards/Approvals

RoHS

Depth

10.16mm

Length

31.75mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

100°C

Efficiency

89%

COO (Country of Origin):
TW

XP Power - JCG Series of 12/15 W Isolated DC-DC Converters


The JCG series from XP Power offers a highly reliable range of single and dual output, 12/15 W, isolated DC-DC converters. This Compact range attributes 1600 VDC in isolation, a 2:1 input range and high power density. The series is available in an industry standard package, features remote on/off settings and has a high efficiency of up to 91%.

12/15 W, isolated DC-DC converters

Compact, industry standard package

2:1 input range

1600 VDC in isolation

Single and dual output

High efficiency up to 91%

Board mount

-40 °C to +100 °C Operating temperature

XP Power - Isolated DC-DC Converters
