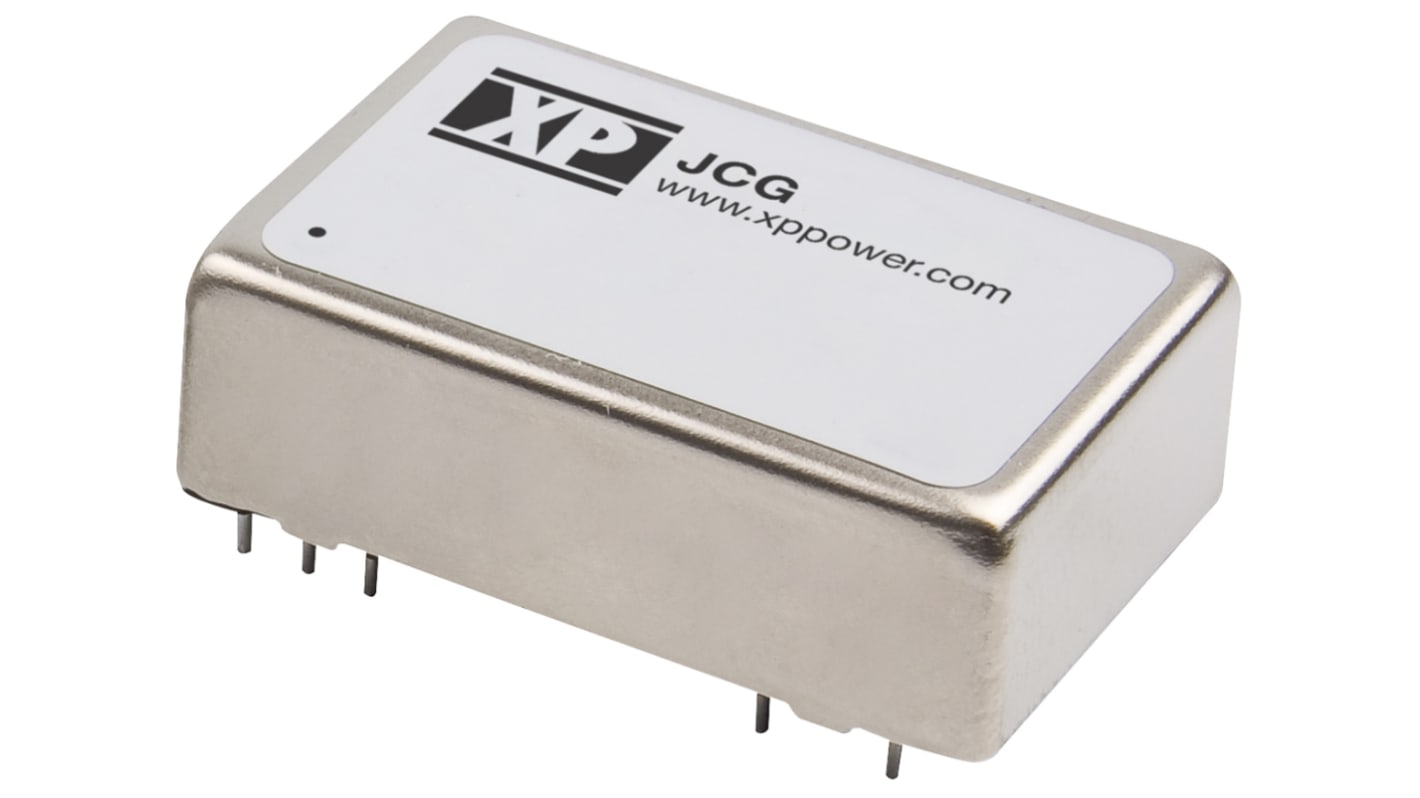

XP Power JCG DC-DC Converter, 15V dc/ 800mA Output, 18 → 36 V dc Input, 12W, Through Hole, +100°C Max Temp -40°C

RS Stock No.:: 167-2860
Mfr. Part No.:: JCG1224S15
Brand:: XP Power

XP Power JCG DC-DC Converter, 15V dc/ 800mA Output, 18 → 36 V dc Input, 12W, Through Hole, +100°C Max Temp -40°C

Bulk discount available

Subtotal (1 tube of 10 units)**

£242.30

(exc. VAT)

£290.76

(inc. VAT)

Available to back order for despatch 28/05/2025*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Tube(s)	Per Tube	Per unit**
1 - 4	£242.30	£24.23
5 - 9	£235.03	£23.503
10 - 24	£227.77	£22.777
25 - 49	£220.49	£22.049
50 +	£213.22	£21.322

**price indicative

RS Stock No.:: 167-2860
Mfr. Part No.:: JCG1224S15
Brand:: XP Power

Datasheet

Attribute	Value
Output Voltage	15V dc
Input Voltage Range	18 → 36 V dc
Power Rating	12W
Input Voltage Nominal	24 V dc
Output Current	800mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	DIP 24
Isolation Voltage	1.6kV dc
Depth	10.16mm
Width	20.32mm
Length	31.75mm
Series	JCG
Load Regulation	±0.5%
Maximum Temperature	+100°C
Minimum Temperature	-40°C
Standards Met	EN 61000-4-2, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F

XP Power JCG DC-DC Converter, 15V dc/ 800mA Output, 18 → 36 V dc Input, 12W, Through Hole, +100°C Max Temp -40°C

FREE delivery for orders over £50.00

XP Power - JCG Series of 12/15 W Isolated DC-DC Converters
