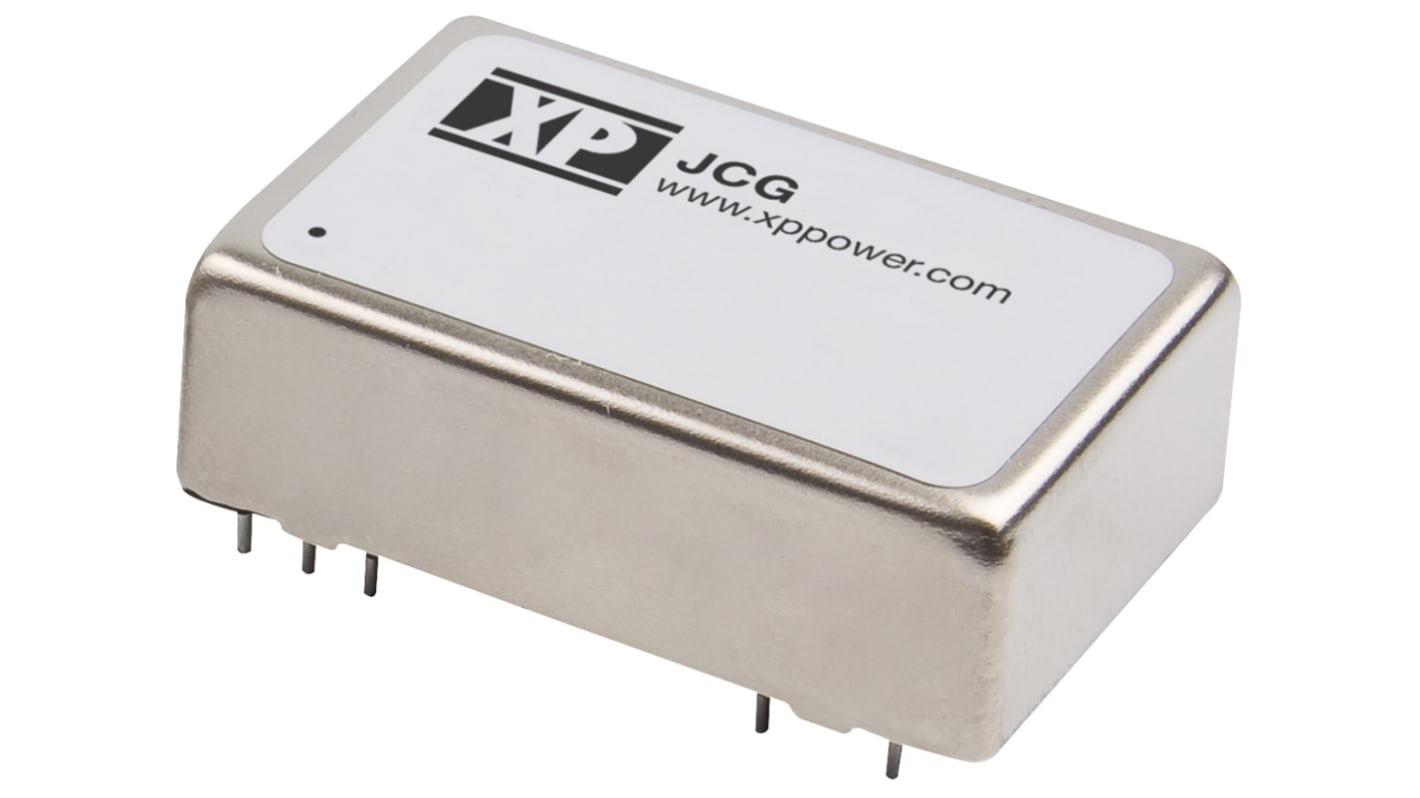

XP Power JCG DC-DC Converter, ±15V dc/ ±500mA Output, 18 → 36 V dc Input, 15W, Through Hole, +100°C Max Temp
- RS Stock No.:
- 167-2805
- Mfr. Part No.:
- JCG1524D15
- Brand:
- XP Power
Available to back order for despatch 12/09/2024
Added
Price 1 Tube of 10
£324.48
(exc. VAT)
£389.38
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 - 4 | £324.48 | £32.448 |
| 5 - 9 | £314.75 | £31.475 |
| 10 - 24 | £305.01 | £30.501 |
| 25 - 49 | £295.28 | £29.528 |
| 50 + | £285.54 | £28.554 |
| *price indicative | ||
- RS Stock No.:
- 167-2805
- Mfr. Part No.:
- JCG1524D15
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
XP Power - JCG Series of 12/15 W Isolated DC-DC Converters
The JCG series from XP Power offers a highly reliable range of single and dual output, 12/15 W, isolated DC-DC converters. This compact range attributes 1600 VDC in isolation, a 2:1 input range and high power density. The series is available in an industry standard package, features remote on/off settings and has a high efficiency of up to 91%.
12/15 W, isolated DC-DC converters
Compact, industry standard package
2:1 input range
1600 VDC in isolation
Single and dual output
High efficiency up to 91%
Board mount
-40 °C to +100 °C Operating temperature
Compact, industry standard package
2:1 input range
1600 VDC in isolation
Single and dual output
High efficiency up to 91%
Board mount
-40 °C to +100 °C Operating temperature
XP Power - Isolated DC-DC Converters
Specifications
Attribute | Value |
|---|---|
| Output Voltage | ±15V dc |
| Input Voltage Range | 18 → 36 V dc |
| Power Rating | 15W |
| Input Voltage Nominal | 24 V dc |
| Output Current | ±500mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 2 |
| Package | DIP 24 |
| Isolation Voltage | 1.6kV dc |
| Depth | 10.16mm |
| Length | 31.75mm |
| Width | 20.32mm |
| Series | JCG |
| Load Regulation | ±1% |
| Standards Met | EN 61000-4-2, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F |
| Minimum Temperature | -40°C |
| Maximum Temperature | +100°C |
