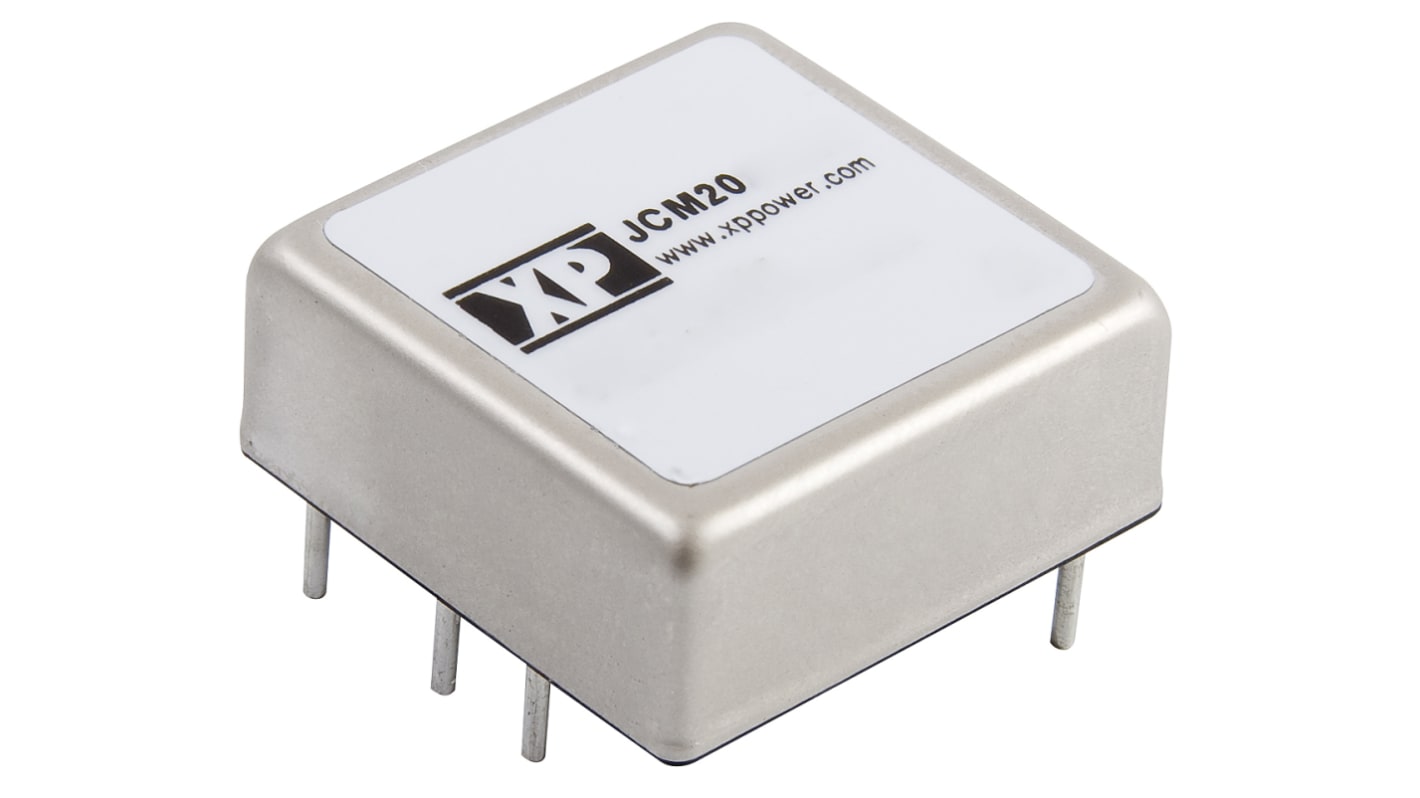

XP Power JCM DC-DC Converter, 5V dc/ 4A Output, 9 → 18 V dc Input, 20W, Through Hole, +105°C Max Temp -40°C Min
- RS Stock No.:
- 122-7473
- Mfr. Part No.:
- JCM2012S05
- Brand:
- XP Power
Available to back order for despatch when stock is available
Price Each
£42.88
(exc. VAT)
£51.46
(inc. VAT)
Units | Per unit |
---|---|
1 - 4 | £42.88 |
5 - 9 | £41.59 |
10 - 24 | £40.31 |
25 - 49 | £39.02 |
50 + | £37.73 |
- RS Stock No.:
- 122-7473
- Mfr. Part No.:
- JCM2012S05
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
XP Power - JCM20 Series of Isolated DC-DC Converters
The JCM20 series from XP Power offers an excellent range of single and dual output, 20 W, isolated DC-DC converters. The series has been designed in an industry standard package, features 1600 VDC in isolation and a high efficiency of up to 89%. These compact DC-DC converters have a 2:1 input range and also feature very high power density.
20 W, isolated DC-DC converters
1600 VDC isolation
Single and dual outputs
2:1 input range
-40 °C to +105 °C Operating temperature
High efficiency up to 89%
Very high power density
Board mount
1600 VDC isolation
Single and dual outputs
2:1 input range
-40 °C to +105 °C Operating temperature
High efficiency up to 89%
Very high power density
Board mount
XP Power - DC-DC Converters
Specifications
Attribute | Value |
---|---|
Output Voltage | 5V dc |
Input Voltage Range | 9 → 18 V dc |
Power Rating | 20W |
Input Voltage Nominal | 12 V dc |
Output Current | 4A |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 1 |
Package | 1 x 1 in |
Isolation Voltage | 1.6kV dc |
Width | 25.4mm |
Depth | 9.9mm |
Length | 25.4mm |
Series | JCM |
Load Regulation | ±0.5% |
Standards Met | EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F |
Maximum Temperature | +105°C |
Minimum Temperature | -40°C |
