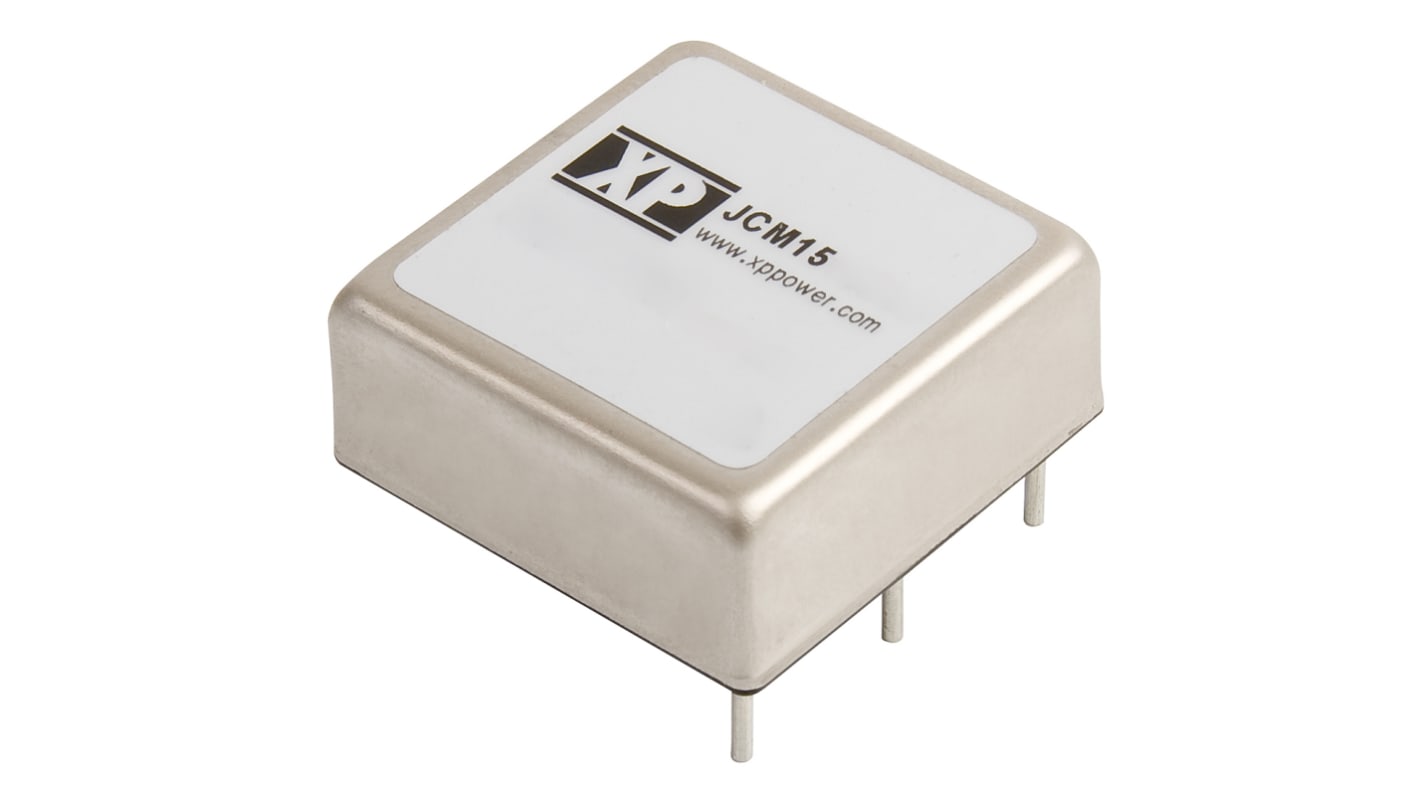

XP Power JCM DC-DC Converter, 12V dc/ 1.3A Output, 9 → 18 V dc Input, 15W, Through Hole, +105°C Max Temp -40°C

RS Stock No.:: 122-7461
Mfr. Part No.:: JCM1512S12
Brand:: XP Power

XP Power JCM DC-DC Converter, 12V dc/ 1.3A Output, 9 → 18 V dc Input, 15W, Through Hole, +105°C Max Temp -40°C

Price Each

£20.74

(exc. VAT)

£24.89

(inc. VAT)

999999999 In stock - FREE next working day delivery available

Units	Per unit
1 +	£20.74

RS Stock No.:: 122-7461
Mfr. Part No.:: JCM1512S12
Brand:: XP Power

Technical Reference

Datasheet

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

XP Power - JCM15 Series of Isolated DC-DC Converters

The JCM15 series from XP Power offers an excellent range of single and dual output, 15 W, isolated DC-DC converters. The series has been designed in an industry standard package, features 1600 VDC in isolation and a high efficiency of up to 89%. These compact DC-DC converters have a 2:1 input range and also feature very high power density.

15 W, isolated DC-DC converters
1600 VDC isolation
Single and dual outputs
2:1 input range
-40 °C to +105 °C Operating temperature
High efficiency up to 89%
Very high power density
Board mount

XP Power - DC-DC Converters

Specifications

Attribute	Value
Output Voltage	12V dc
Input Voltage Range	9 → 18 V dc
Power Rating	15W
Input Voltage Nominal	12 V dc
Output Current	1.3A
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	1 x 1 in
Isolation Voltage	1.6kV dc
Depth	9.9mm
Width	25.4mm
Length	25.4mm
Series	JCM
Load Regulation	±0.5%
Maximum Temperature	+105°C
Minimum Temperature	-40°C
Standards Met	EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F
