XP Power JCK DC/DC Converter, 18V dc, 36 V dc/, Through Hole, -40 °C Max Temp 2 x 1 in
- RS Stock No.:
- 122-7448
- Distrelec Article No.:
- 302-41-687
- Mfr. Part No.:
- JCK4024S05
- Brand:
- XP Power
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 122-7448
- Distrelec Article No.:
- 302-41-687
- Mfr. Part No.:
- JCK4024S05
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 18, 36V dc | |
| Mount Type | Through Hole | |
| Number of Outputs | 1 | |
| Isolation Voltage | 1.6kV dc | |
| Package Type | 2 x 1 in | |
| Depth | 10.16mm | |
| Series | JCK | |
| Width | 25.4mm | |
| Standards/Approvals | EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F | |
| Length | 50.8mm | |
| Maximum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Product Type DC/DC Converter | ||
Output Voltage 1 18, 36V dc | ||
Mount Type Through Hole | ||
Number of Outputs 1 | ||
Isolation Voltage 1.6kV dc | ||
Package Type 2 x 1 in | ||
Depth 10.16mm | ||
Series JCK | ||
Width 25.4mm | ||
Standards/Approvals EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F | ||
Length 50.8mm | ||
Maximum Operating Temperature -40°C | ||

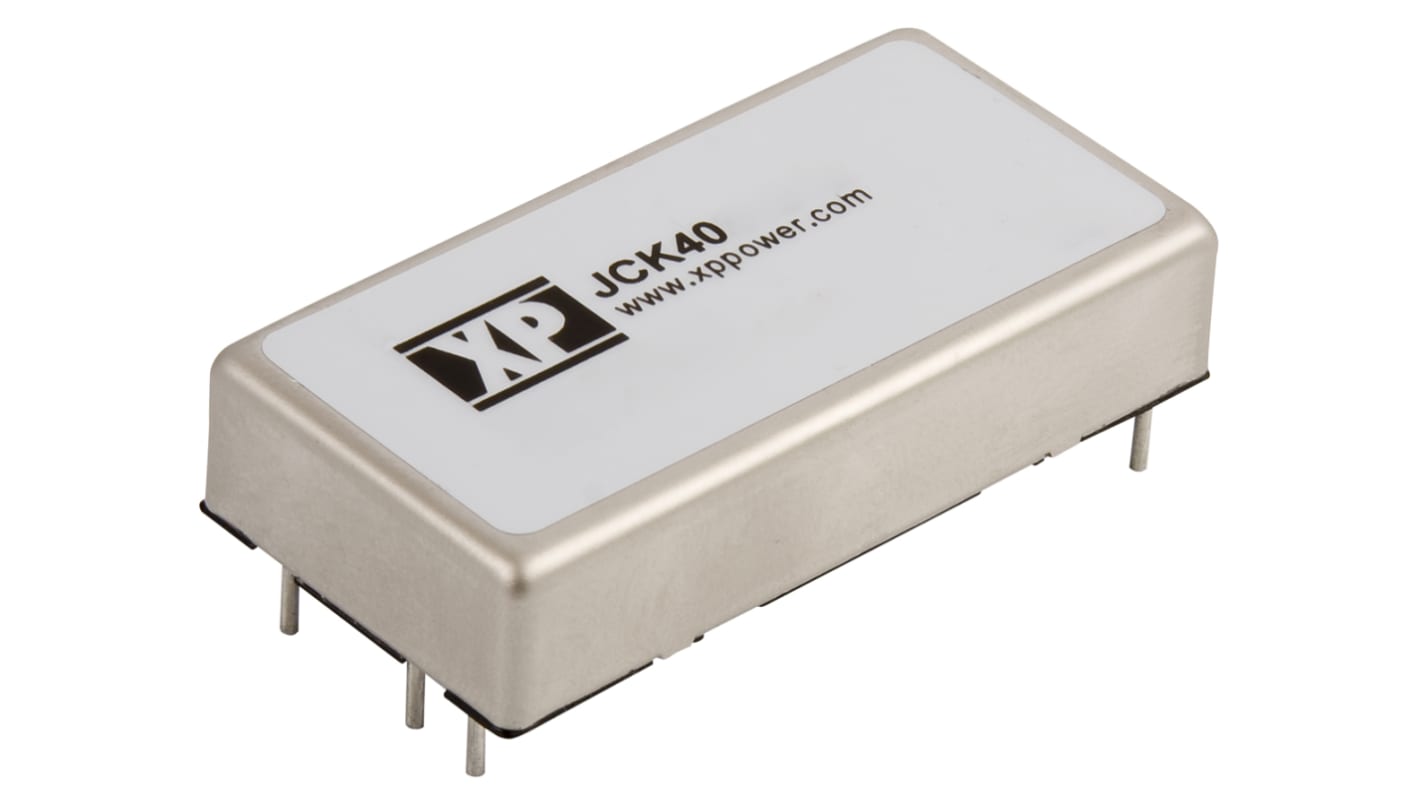

XP Power - JCK40 Series of Isolated DC-DC Converters
The JCK40 series from XP Power offers a highly reliable range of 40 W, isolated DC-DC converters. The series has been designed in an industry standard package, features 1600 VDC in isolation and a high efficiency of up to 92%. These compact DC-DC converters have a 2:1 input range and also feature remote on/off settings.
40 W, isolated DC-DC converters
1600 VDC isolation
2:1 input range
Single and dual outputs
Remote on/off
-40 °C to +70 °C Operating temperature
High efficiency up to 92%
Very high power density
Board mount
XP Power - DC-DC Converters
