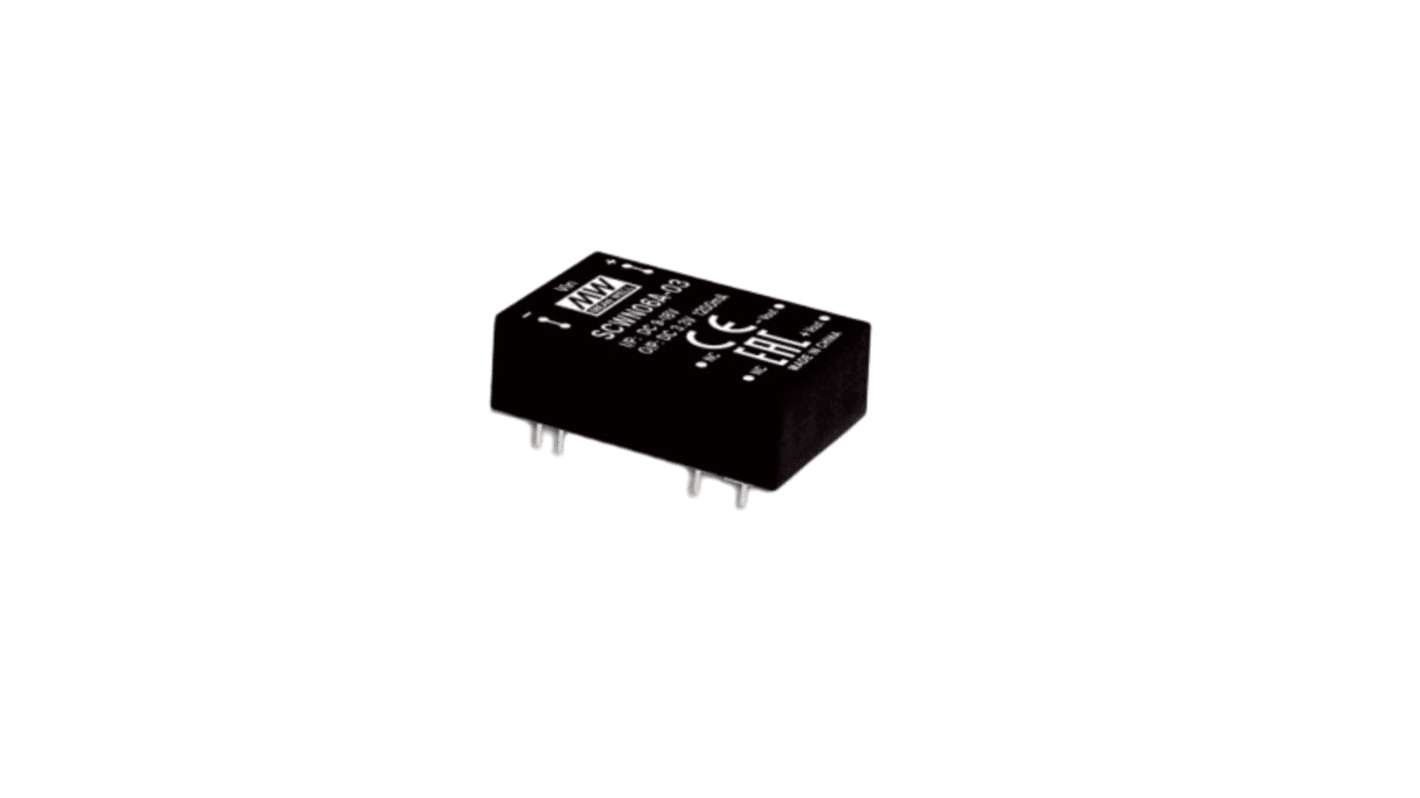

MEAN WELL DCWN06 DC-DC Converter, 12V dc/ 250mA Output, 18 → 36 V dc Input, 6W, Through Hole, +90°C Max Temp
- RS Stock No.:
- 632-251
- Mfr. Part No.:
- DCWN06B-12
- Brand:
- MEAN WELL
Subtotal (1 unit)*
£7.77
(exc. VAT)
£9.32
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £7.77 |
*price indicative
- RS Stock No.:
- 632-251
- Mfr. Part No.:
- DCWN06B-12
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 18 → 36 V dc | |
| Power Rating | 6W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 250mA | |
| Mounting Type | Through Hole | |
| Series | DCWN06 | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +90°C | |
Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Output Voltage 12V dc | ||
Input Voltage Range 18 → 36 V dc | ||
Power Rating 6W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 250mA | ||
Mounting Type Through Hole | ||
Series DCWN06 | ||
Minimum Temperature -40°C | ||
Maximum Temperature +90°C | ||
- COO (Country of Origin):
- CN
The MEANWELL 6W isolated and regulated module type DC-DC converter with DIP24 package. It features international standard pins, a high efficiency up to 87%, wide working temperature range -40 to +90°C, 3KVDC I/P-O/P isolation voltage, Compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit protection, etc. The additional components, models account for different input voltage 9 to 18V, 18 to 36V and 36 to 72V 2:1 wide input range, and various output voltage.
No minimum load required
High efficiency up to 87%
Protections from Short circuit (Continuous), Overload, Input under voltage
3KVDC I/O isolation
3 years warranty
High efficiency up to 87%
Protections from Short circuit (Continuous), Overload, Input under voltage
3KVDC I/O isolation
3 years warranty
