MEAN WELL RQB150W12 DC/DC Converter, 24V dc/ 2000 mA, 24V dc Input, 24V dc Input 150 W, 85 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 590-691
- Mfr. Part No.:
- RQB150W12-110S12
- Brand:
- MEAN WELL
Subtotal (1 unit)*
£109.48
(exc. VAT)
£131.38
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £109.48 |
*price indicative
- RS Stock No.:
- 590-691
- Mfr. Part No.:
- RQB150W12-110S12
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 24V dc | |
| Minimum Input Voltage | 24V dc | |
| Maximum Input Voltage | 24V dc | |
| Output Current 1 | 2000mA | |
| MTBF | 185kH | |
| Number of Outputs | 2 | |
| Ripple and Noise | 240mV Pk-Pk | |
| Output Voltage Adjustment Range | ±10 % | |
| Number of Pins | 10 | |
| Isolation Voltage | 3kV ac | |
| Package Type | Quarter Brick | |
| Maximum Output Power | 150W | |
| Standards/Approvals | IEC62368-1, EAC TP TC 020/2011, EN50121-3-2, EN50155, EN61373 | |
| Length | 57.9mm | |
| Series | RQB150W12 | |
| Depth | 12.7mm | |
| Width | 36.8mm | |
| Weight | 75g | |
| Maximum Operating Temperature | 85°C | |
| Efficiency | 88% | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Product Type DC/DC Converter | ||
Output Voltage 1 24V dc | ||
Minimum Input Voltage 24V dc | ||
Maximum Input Voltage 24V dc | ||
Output Current 1 2000mA | ||
MTBF 185kH | ||
Number of Outputs 2 | ||
Ripple and Noise 240mV Pk-Pk | ||
Output Voltage Adjustment Range ±10 % | ||
Number of Pins 10 | ||
Isolation Voltage 3kV ac | ||
Package Type Quarter Brick | ||
Maximum Output Power 150W | ||
Standards/Approvals IEC62368-1, EAC TP TC 020/2011, EN50121-3-2, EN50155, EN61373 | ||
Length 57.9mm | ||
Series RQB150W12 | ||
Depth 12.7mm | ||
Width 36.8mm | ||
Weight 75g | ||
Maximum Operating Temperature 85°C | ||
Efficiency 88% | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- TW

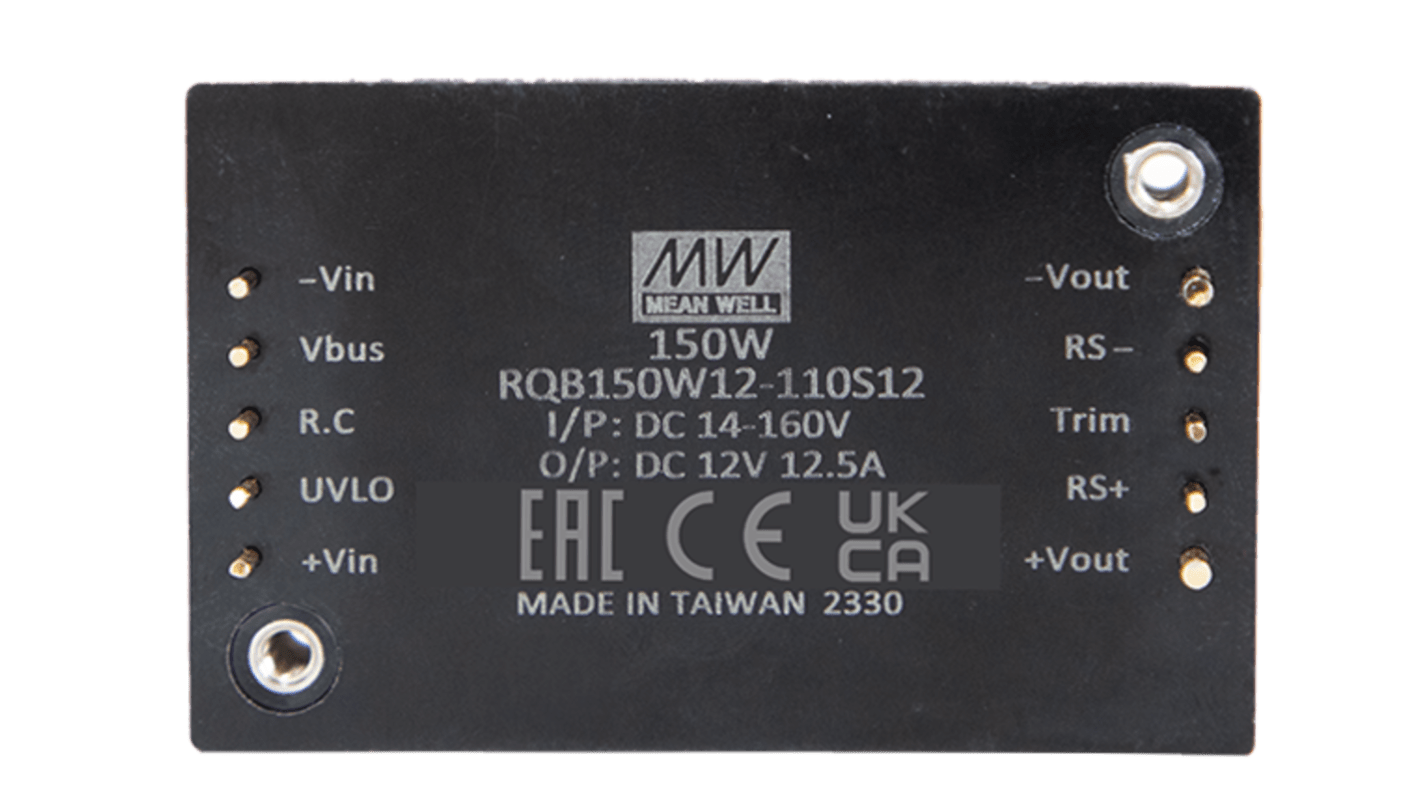

The MEANWELL 150W Module-Type DC-DC Converter with a quarter brick package is a robust and reliable power solution designed for railway applications. Equipped with international standard pins, it is well-suited for use in railways, trams, and buses, and performs dependably in harsh environments characterized by high vibration, dust, and extreme temperatures.
No minimum load required
Fully encapsulated design
Remote ON or OFF control and remote sense capability
3 years warranty
