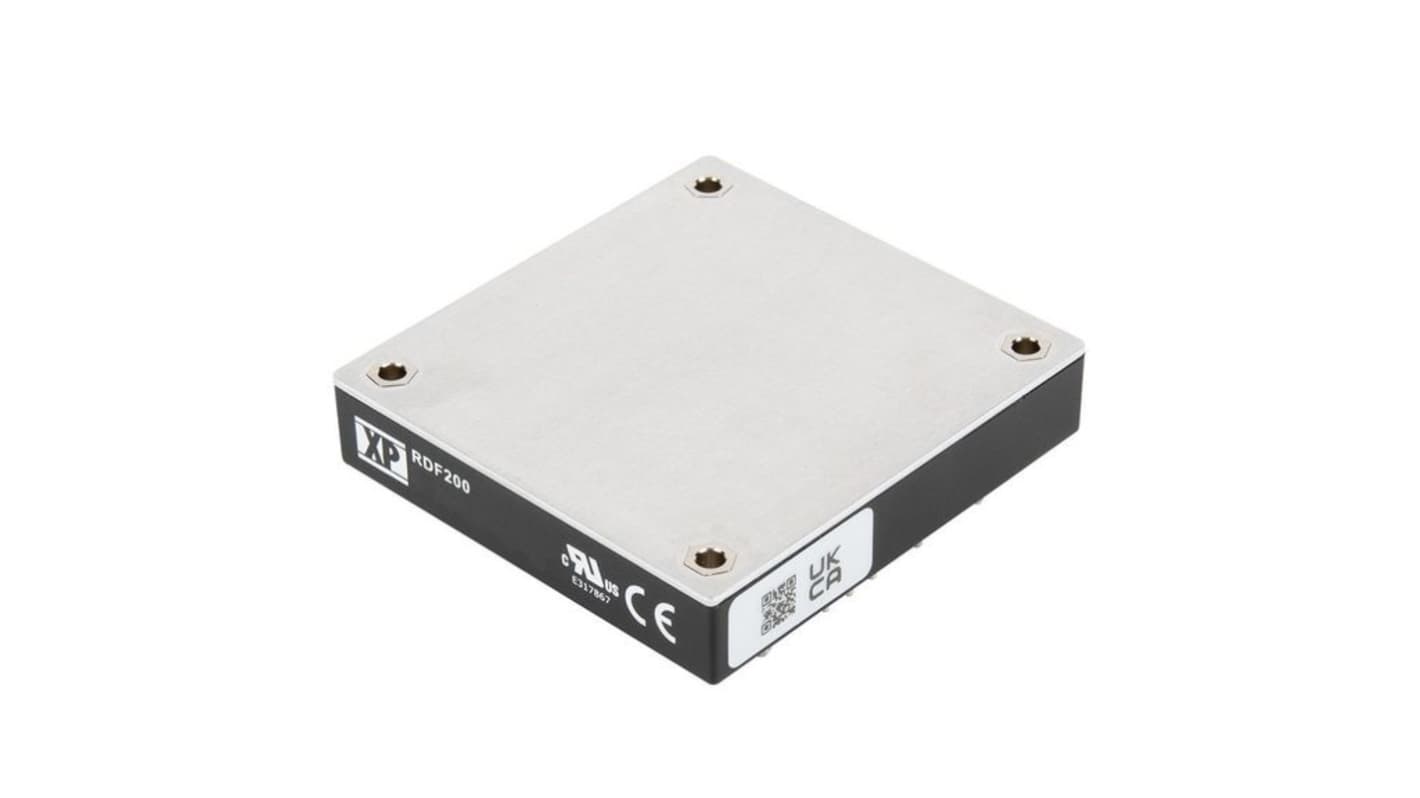

XP Power RDF200 DC/DC Converter, 15V dc/ 13.5 A, 14V dc Input, 14V dc Input 200 W, Through Hole, 100 °C Max Temp -40 °C
- RS Stock No.:
- 516-871
- Mfr. Part No.:
- RDF20072S15
- Brand:
- XP Power
Subtotal (1 unit)*
£152.10
(exc. VAT)
£182.52
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £152.10 |
*price indicative
- RS Stock No.:
- 516-871
- Mfr. Part No.:
- RDF20072S15
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 15V dc | |
| Maximum Input Voltage | 14V dc | |
| Minimum Input Voltage | 14V dc | |
| Output Current 1 | 13.5A | |
| Mount Type | Through Hole | |
| Input Ratio | 12:1 | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | -20 to 15 % | |
| Ripple and Noise | 200mV | |
| Number of Pins | 11 | |
| Isolation Voltage | 3000V ac | |
| Package Type | Half Brick | |
| Maximum Output Power | 200W | |
| Series | RDF200 | |
| Weight | 0.23lb | |
| Standards/Approvals | UKCA, UL IEC62368-1, CE, EN50155 | |
| Length | 2.4in | |
| Width | 2.28in | |
| Depth | 0.5in | |
| Efficiency | 0.9% | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Product Type DC/DC Converter | ||
Output Voltage 1 15V dc | ||
Maximum Input Voltage 14V dc | ||
Minimum Input Voltage 14V dc | ||
Output Current 1 13.5A | ||
Mount Type Through Hole | ||
Input Ratio 12:1 | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range -20 to 15 % | ||
Ripple and Noise 200mV | ||
Number of Pins 11 | ||
Isolation Voltage 3000V ac | ||
Package Type Half Brick | ||
Maximum Output Power 200W | ||
Series RDF200 | ||
Weight 0.23lb | ||
Standards/Approvals UKCA, UL IEC62368-1, CE, EN50155 | ||
Length 2.4in | ||
Width 2.28in | ||
Depth 0.5in | ||
Efficiency 0.9% | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
- COO (Country of Origin):
- TW
The XP Power DC-DC brick converters provide a reliable 150W power output with single output voltage options ranging from 5V to 48VDC. Designed for high efficiency and performance, they are Ideal for industrial, telecom, and embedded applications requiring stable DC power conversion.
Single voltage outputs from 5V to 48VDC
Wide output voltage trim and remote sense
