Recom RPM-6.0 DC/DC Converter, 5V dc/ 6 A, 12V dc Input, 12V dc Input 30 W, Surface, 85 °C Max Temp -40 °C Min Temp,

View all DC-DC Converters
Unavailable
RS will no longer stock this product.
RS Stock No.:
325-670
Mfr. Part No.:
RPM5.0-6.0
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Output Voltage 1

5V dc

Product Type

DC/DC Converter

Maximum Input Voltage

12V dc

Minimum Input Voltage

12V dc

Output Current 1

6A

Mount Type

Surface

Number of Outputs

1

MTBF

1800kH

Ripple and Noise

60mV Pk-Pk

Output Voltage Adjustment Range

0.9 to 6.0 V dc

Number of Pins

25

Maximum Output Power

30W

Package Type

25 Pad LGA

Width

12.19mm

Series

RPM-6.0

Standards/Approvals

EN62368-1, REACH, RoHS 2+

Weight

1.1g

Length

12.19mm

Depth

3.75mm

Minimum Operating Temperature

-40°C

Efficiency

99%

Maximum Operating Temperature

85°C

COO (Country of Origin):
SK

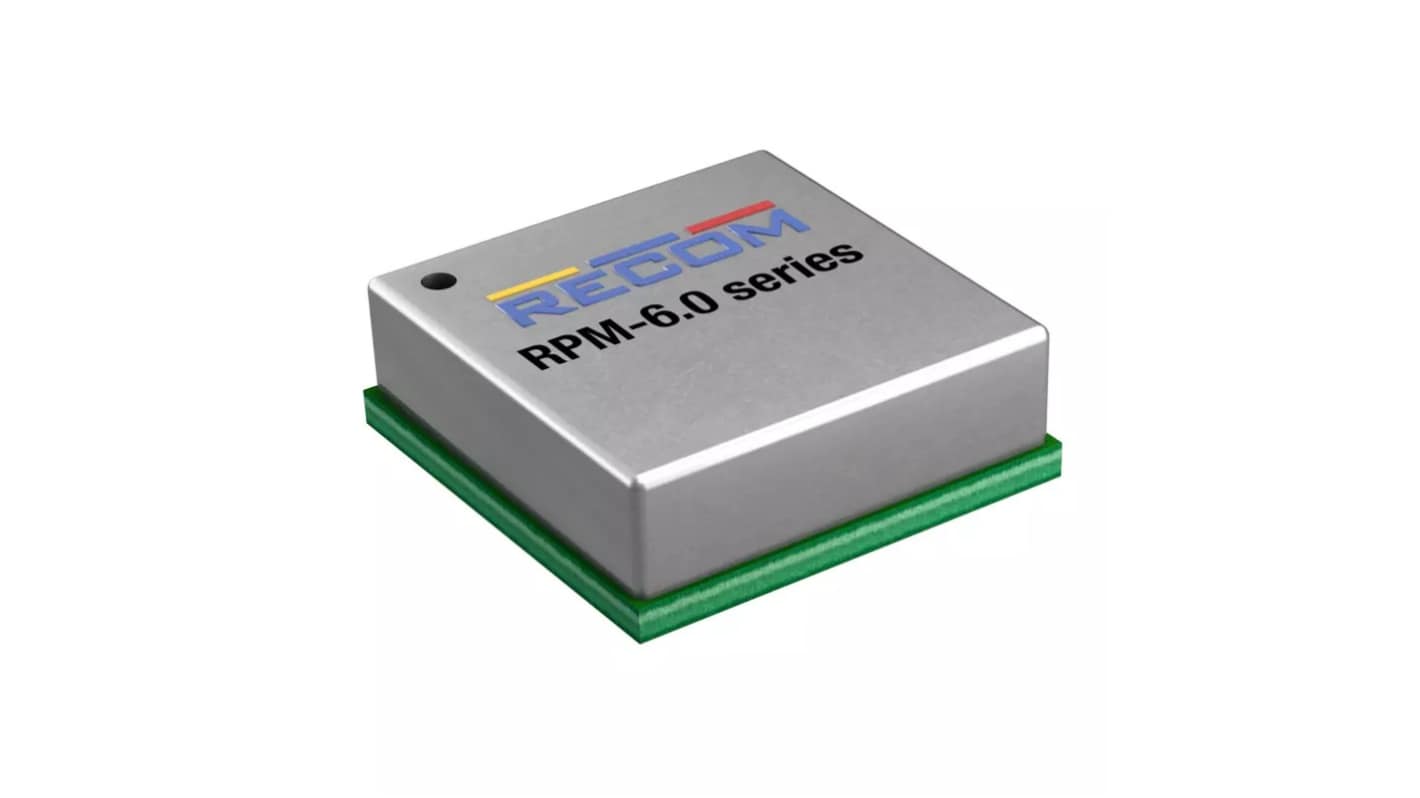

The Recom DC/DC Converter is a 6A non-isolated switching regulator power module with a full set of features including adjustable output, sequencing, soft-start control, on/off control, and power good signals. The ultra-compact module has a profile of only 3.75mm, but with an efficiency of up to 99%, the device can operate at full load in ambient temperatures as high as +90°C without forced Air cooling. The package is complete with 6-sided shielding for optimal EMC performance and excellent heat management.

Wide operating temperature -40°C to +90°C at full load

Efficiency up to 99% no need for heatsinks

6-sided shielding

Thermally and EMI enhanced 25 pad LGA package

Compact DOSA-compatible footprint

Low profile
