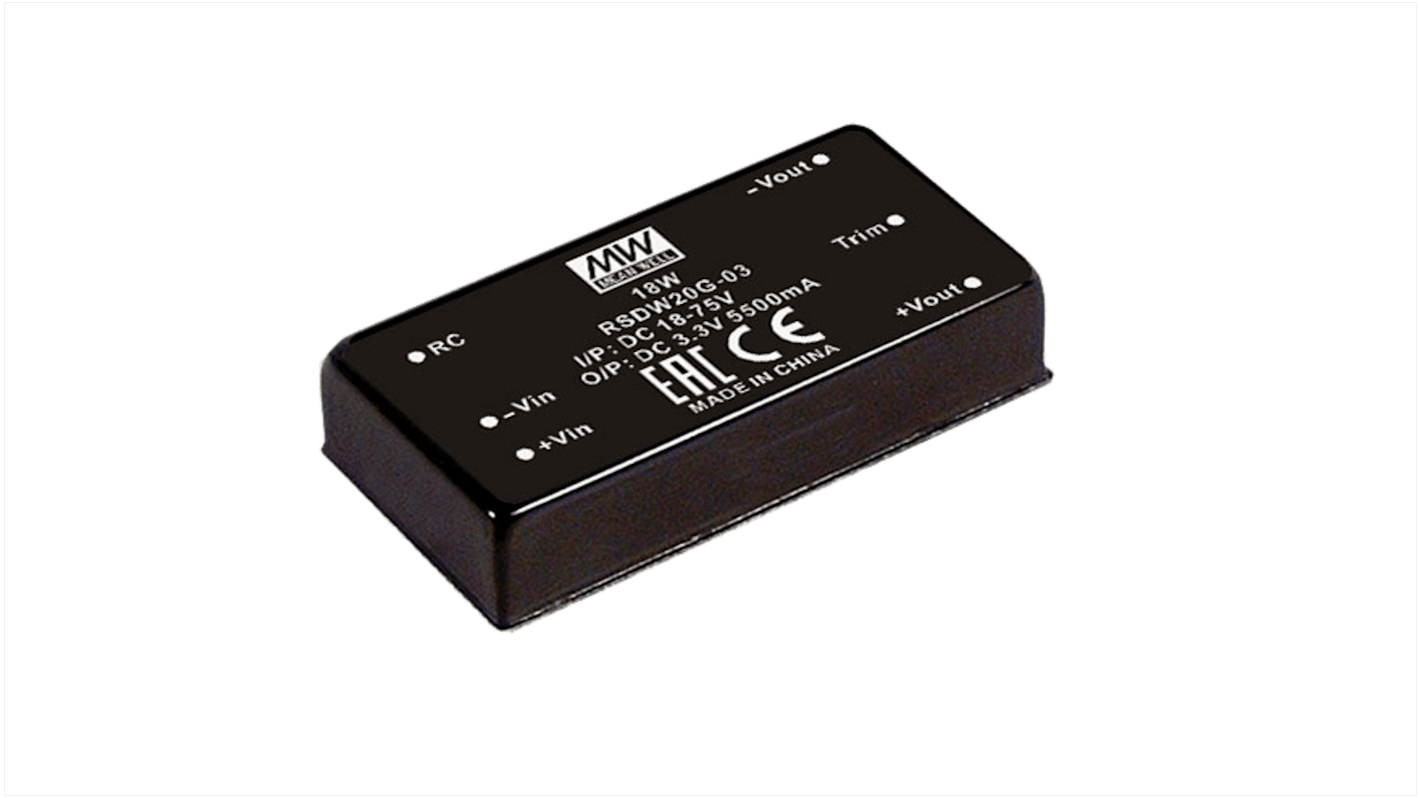

MEAN WELL RSD DC/DC Converter, 3.3V dc/ 5.5 A, 36V dc Input, 36V dc Input 20 W, PCB, 105 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 149-673
- Distrelec Article No.:
- 302-30-060
- Mfr. Part No.:
- RSDW20F-03
- Brand:
- MEAN WELL
Subtotal (1 unit)*
£27.48
(exc. VAT)
£32.98
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1 unit(s) shipping from 25 September 2026
- Plus 1 unit(s) shipping from 09 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £27.48 |
*price indicative
- RS Stock No.:
- 149-673
- Distrelec Article No.:
- 302-30-060
- Mfr. Part No.:
- RSDW20F-03
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Output Voltage 1 | 3.3V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 36V dc | |
| Maximum Input Voltage | 36V dc | |
| Output Current 1 | 5.5A | |
| Output Current 2 | 2000mA | |
| Mount Type | PCB | |
| Output Voltage 2 | 15V | |
| MTBF | 880kH | |
| Number of Outputs | 2 | |
| Ripple and Noise | 60mV Pk-Pk | |
| Output Voltage Adjustment Range | ±10 % | |
| Isolation Voltage | 3kV | |
| Number of Pins | 6 | |
| Package Type | 2 x 1 in | |
| Maximum Output Power | 20W | |
| Depth | 10.2mm | |
| Length | 50.8mm | |
| Width | 25.4mm | |
| Series | RSD | |
| Weight | 35g | |
| Standards/Approvals | EAC TP TC 004 (48Vin/110Vin type only), EAC TP TC 020/2011, EN50121-3-2, EN50155, EN61373, IEC60571 | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 90% | |
| Maximum Operating Temperature | 105°C | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Output Voltage 1 3.3V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 36V dc | ||
Maximum Input Voltage 36V dc | ||
Output Current 1 5.5A | ||
Output Current 2 2000mA | ||
Mount Type PCB | ||
Output Voltage 2 15V | ||
MTBF 880kH | ||
Number of Outputs 2 | ||
Ripple and Noise 60mV Pk-Pk | ||
Output Voltage Adjustment Range ±10 % | ||
Isolation Voltage 3kV | ||
Number of Pins 6 | ||
Package Type 2 x 1 in | ||
Maximum Output Power 20W | ||
Depth 10.2mm | ||
Length 50.8mm | ||
Width 25.4mm | ||
Series RSD | ||
Weight 35g | ||
Standards/Approvals EAC TP TC 004 (48Vin/110Vin type only), EAC TP TC 020/2011, EN50121-3-2, EN50155, EN61373, IEC60571 | ||
Minimum Operating Temperature -40°C | ||
Efficiency 90% | ||
Maximum Operating Temperature 105°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
The MEANWELL 20W module type DC-DC railway converter, housed in a compact 2x1 inch package, boasts international standard pins, high efficiency reaching up to 90%, and a wide working temperature range from -40°C to +85°C. With input-to-output isolation voltage of 1.5KVDC(F/G models) or 3KVDC(H models), compliance with the EN50155 railway standard, and continuous-mode short circuit protection, it ensures both safety and reliability. Supporting input voltage ranges of 9-36V, 18-75V, and 43-160V with a 4:1 wide input range, as well as various output voltage options including 3.3V, 5V, 12V, 15V for single outputs, and ±5V, ±12V, or ±15V for dual outputs, this converter is suitable for railway, trams, buses, and harsh environments characterized by high vibration, dust, and extreme temperatures.
Compliance with EN50155 railway standard
41 wide input range
No minimum load required
Full encapsulated
