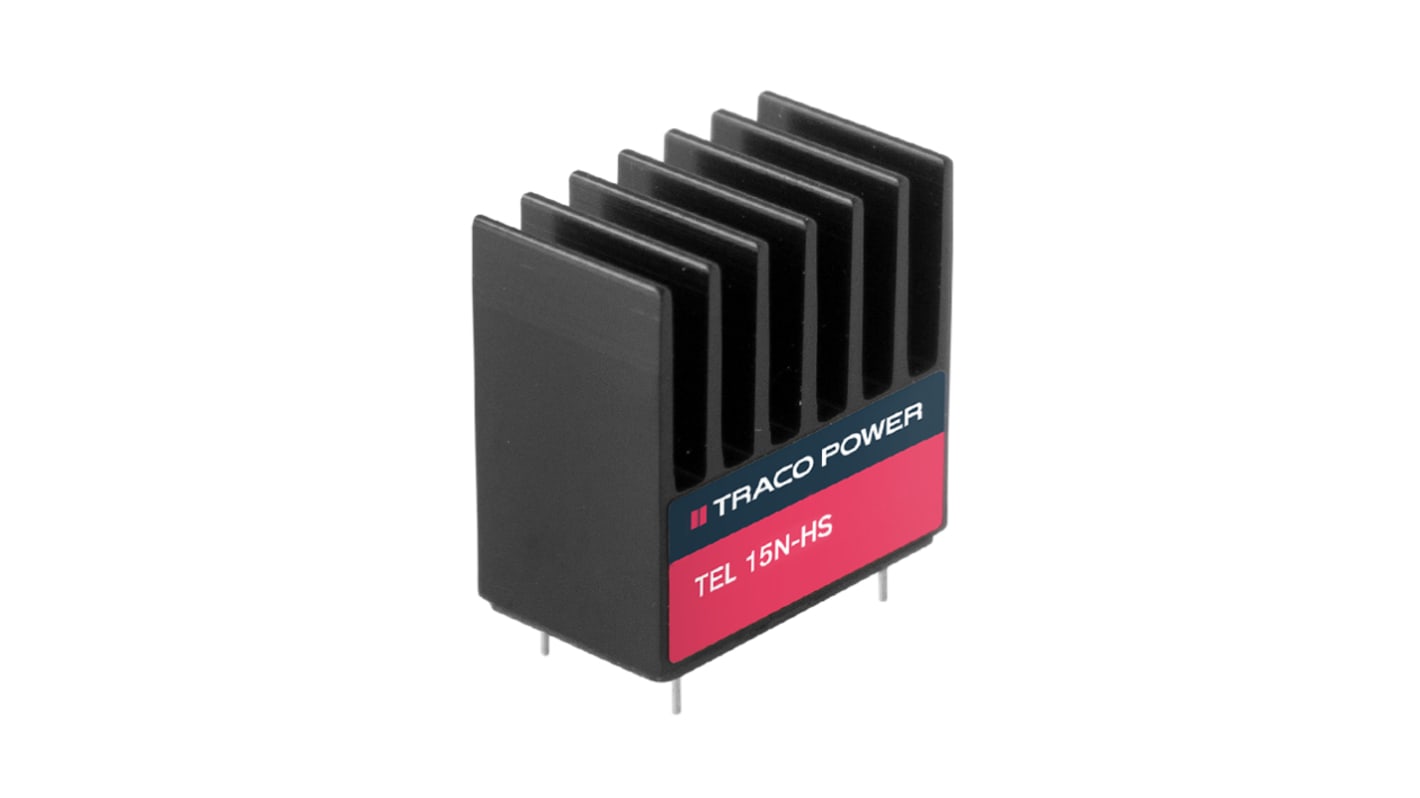

TRACOPOWER, 2-Channel DC/DC Converter, Single Output, 12 V, 1.25 A 5-Pin, DIP-16

View all DC-DC Converters ICs

Subtotal (1 unit)*

£29.11

(exc. VAT)

£34.93

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 26 unit(s) shipping from 16 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£29.11

*price indicative

RS Stock No.:
284-8774
Distrelec Article No.:
303-65-834
Mfr. Part No.:
TEL 15-2412N-HS
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Product Type

DC/DC Converter

Maximum Output Voltage

12V

Minimum Input Voltage

18V

Maximum Input Voltage

36V

Minimum Output Current

1.25A

Maximum Output Current

1250mA

Topology

DC-DC

Number of Outputs

2

Output Type

Single Output

Maximum Switching Frequency

540kHz

Mount Type

Through Hole

Minimum Operating Temperature

-40°C

Package Type

DIP-16

Maximum Operating Temperature

70°C

Pin Count

5

Series

TEL

Length

24.4mm

Height

24.4mm

Width

14.3 mm

Standards/Approvals

UL 62368-1, IEC 62368-1, EN 62368-1

Automotive Standard

No

COO (Country of Origin):
TW
The TRACOPOWER series of isolated 15 Watt converters which come in an ultra compact DIP-16 metal package. The design purpose of this series was to miniaturized low power DC or DC converters to the maximum without sacrificing high efficiency. It solidifies the new standard for power density with 4.51 W/cm3 and effectively doubles the power density compared to 15 Watt converters in DIP-24 packages. It offers a wide 2:1 input voltage range and features a high efficiency of up to 87% which enables an operation temperature of up to +55°C at full load and up to 85°C with 50% load. The converters also have an internal input filter to comply with conducted emission standard EN 55032 class A. It's an economical solution for space critical and cost sensitive applications in instrumentation, IT and industrial electronics.

Ultra compact 15 Watt converter in DIP16 metal casing

Highest power density

High efficiency

Protection against short circuit
