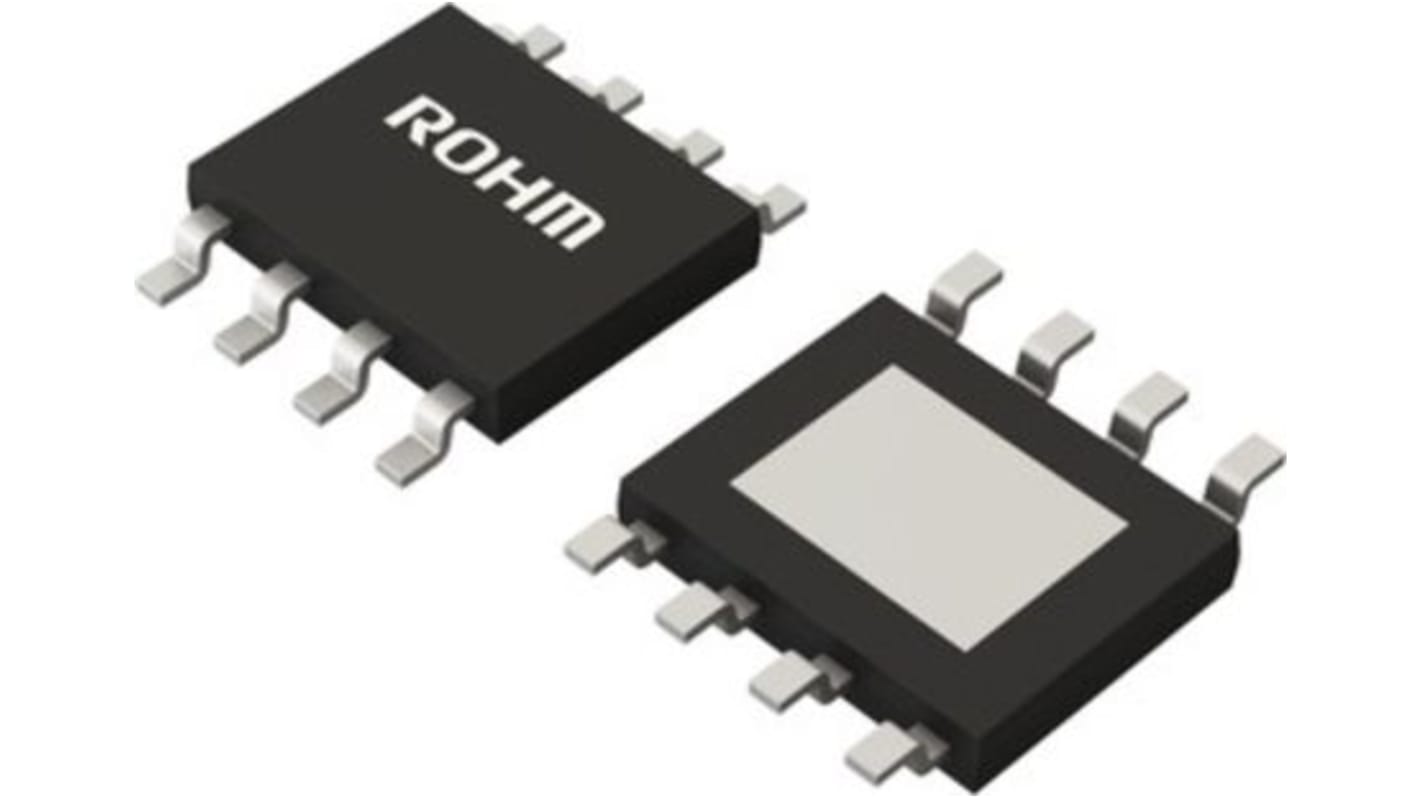

ROHM, 1-Channel DC/DC Converter, Adjustable, 1 V, 5 A 8-Pin, HTSOP-J8
- RS Stock No.:
- 215-9603
- Mfr. Part No.:
- BD9G500EFJ-LAE2
- Brand:
- ROHM
Subtotal (1 reel of 2500 units)*
£6,310.00
(exc. VAT)
£7,572.50
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £2.524 | £6,310.00 |
*price indicative
- RS Stock No.:
- 215-9603
- Mfr. Part No.:
- BD9G500EFJ-LAE2
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 7V | |
| Maximum Input Voltage | 76V | |
| Minimum Output Current | 5A | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Mount Type | Surface | |
| Maximum Switching Frequency | 220kHz | |
| Package Type | HTSOP-J8 | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 8 | |
| Maximum Operating Temperature | 125°C | |
| Length | 6mm | |
| Height | 1mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Minimum Output Voltage | 1V | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 7V | ||
Maximum Input Voltage 76V | ||
Minimum Output Current 5A | ||
Topology Buck | ||
Output Type Adjustable | ||
Mount Type Surface | ||
Maximum Switching Frequency 220kHz | ||
Package Type HTSOP-J8 | ||
Minimum Operating Temperature -40°C | ||
Pin Count 8 | ||
Maximum Operating Temperature 125°C | ||
Length 6mm | ||
Height 1mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
Minimum Output Voltage 1V | ||
The Rohm s buck DC/DC converter with built-in low on-resistance high side power MOSFET. It is capable of providing current of up to 5 A. It is used in industrial equipment and communication power system.
Soft Start Function
Over voltage protection
