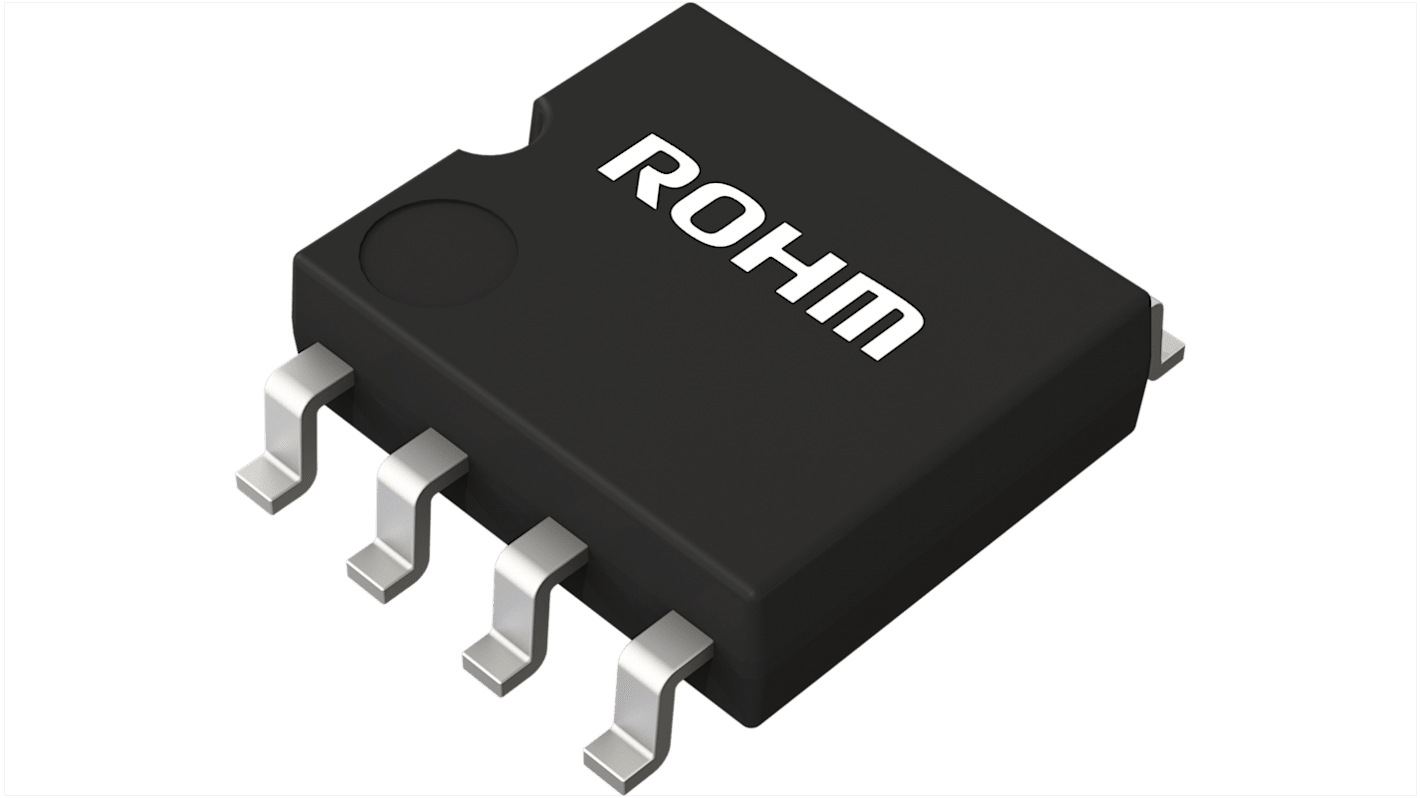

ROHM, 1-Channel DC/DC Converter, Adjustable, 10.81 V 8-Pin, SOP-8

View all DC-DC Converters ICs
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
237-4298
Mfr. Part No.:
BM2P104QF-E2
Brand:
ROHM
Find similar products by selecting one or more attributes.
Select all

Brand

ROHM

Product Type

DC/DC Converter

Maximum Output Voltage

10.81V

Minimum Input Voltage

8V

Maximum Input Voltage

10.81V

Number of Outputs

1

Topology

DC-DC

Output Type

Adjustable

Mount Type

Through Hole, Surface

Maximum Switching Frequency

100kHz

Minimum Operating Temperature

-40°C

Package Type

SOP-8

Pin Count

8

Maximum Operating Temperature

105°C

Width

5 mm

Standards/Approvals

No

Height

1.71mm

Automotive Standard

No

The ROHM BM2P104QF series PWM type DC/DC converter IC has SOP8 package and provides an optimum system for all products that include an electrical outlet. It enables simpler design of a high effective converter specializing in non-isolated devices. This IC has a built-in starter circuit that tolerates 650V, and it contributes to low power consumption. With a current detection resistor as internal device, it can be designed as small power supply. Since current mode control is utilized, current is restricted in each cycle and excellent performance is demonstrated in bandwidth and transient response. The oscillation frequency is fixed to 100kHz. In addition, a built-in super junction MOSFET which tolerates 650V makes the design easy.

PWM current mode method

Frequency hopping function

Built-in 650V super junction MOSFET

VCC Pin under voltage protection

VCC Pin over voltage protection

Over current limiter function per cycle

Built-in switching MOSFET for non-isolated type

Soft star
