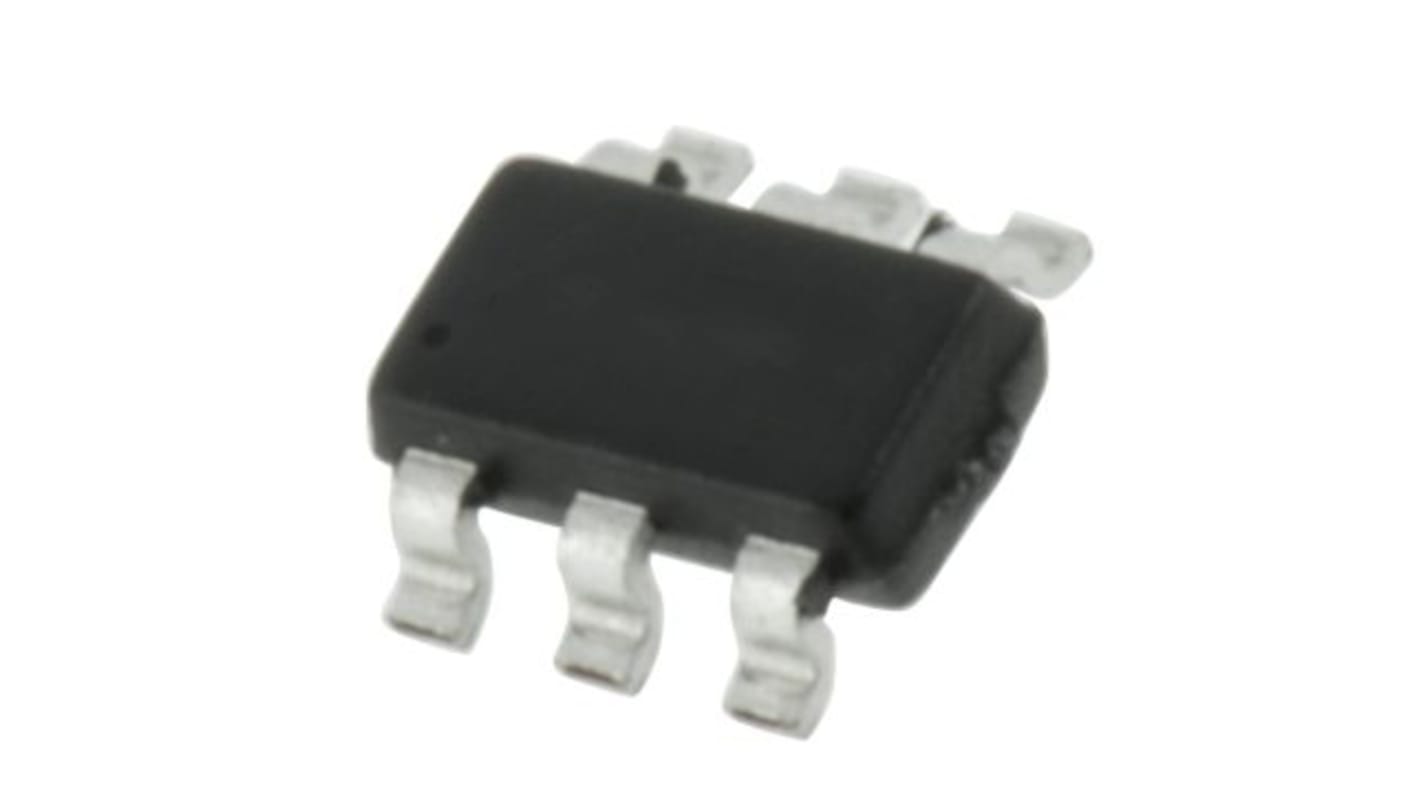

DiodesZetex AP62301WU-7, 1-Channel, Synchronous Buck DC-DC Converter, Adjustable, 3A 6-Pin, TSOT26
- RS Stock No.:
- 213-9040
- Mfr. Part No.:
- AP62301WU-7
- Brand:
- DiodesZetex
825 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 25)
£0.37
(exc. VAT)
£0.44
(inc. VAT)
| Units | Per unit | Per Pack* |
| 25 - 25 | £0.37 | £9.25 |
| 50 - 75 | £0.362 | £9.05 |
| 100 - 225 | £0.324 | £8.10 |
| 250 - 975 | £0.317 | £7.925 |
| 1000 + | £0.26 | £6.50 |
| *price indicative | ||
- RS Stock No.:
- 213-9040
- Mfr. Part No.:
- AP62301WU-7
- Brand:
- DiodesZetex
Technical Reference
Legislation and Compliance
Product Details
The DiodesZetex AP62301 series is synchronous buck converter with a wide input voltage range. It has a proprietary gate driver scheme to resist switching node ringing without sacrificing MOSFET turn-on and turn-off times, which reduces high frequency radi
Up to 89% efficiency at 5mA light load
Protection circuitry
Protection circuitry
Specifications
Attribute | Value |
|---|---|
| Minimum Output Voltage | 0.8 V |
| Maximum Output Voltage | 7 V |
| Minimum Input Voltage | 4.2 V |
| Maximum Input Voltage | 18 V |
| Minimum Output Current | 3A |
| Converter Type | Synchronous Buck |
| Number of Outputs | 1 |
| Output Type | Adjustable |
| Package Type | TSOT26 |
| Pin Count | 6 |
