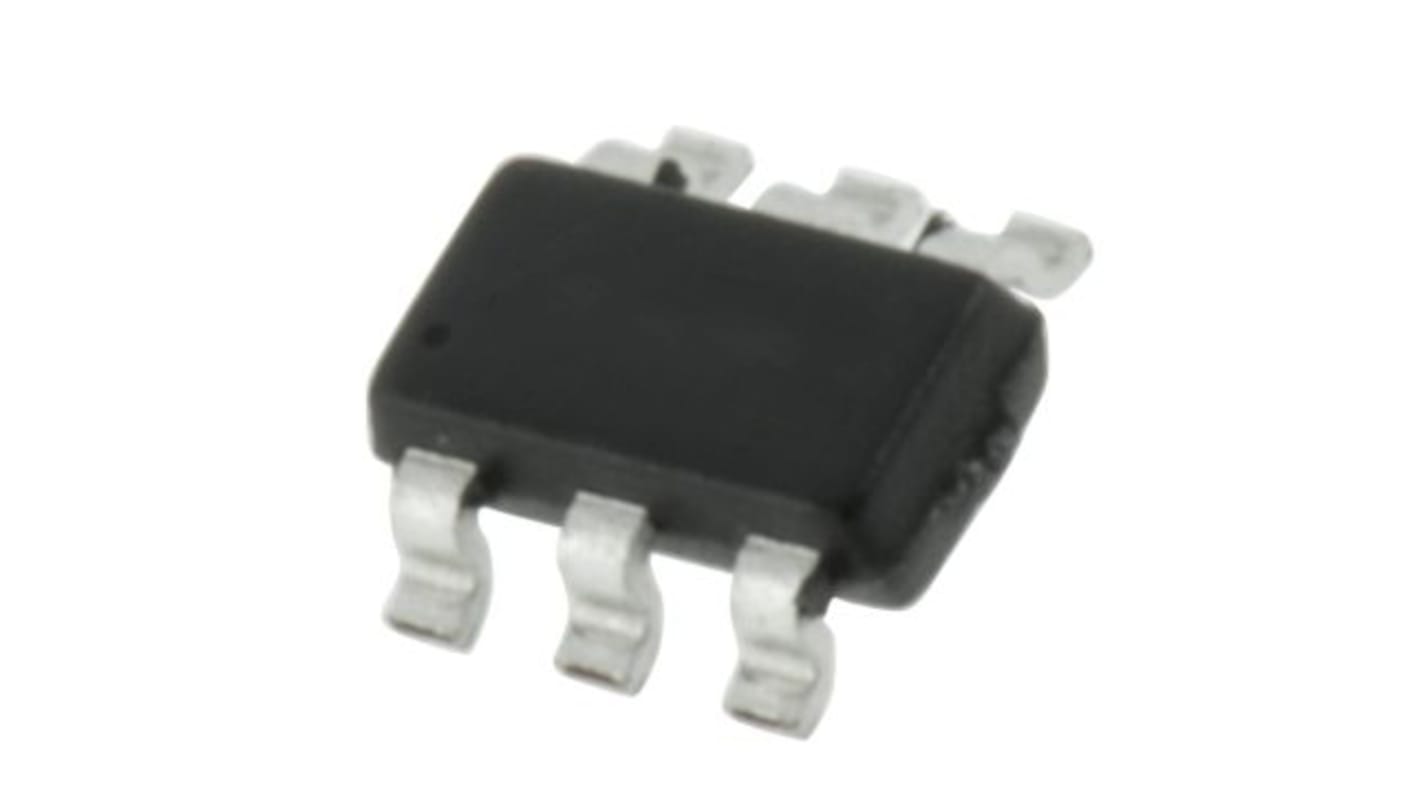

DiodesZetex AP62301WU-7, 1-Channel, Synchronous Buck DC-DC Converter, Adjustable, 3A 6-Pin, TSOT26
- RS Stock No.:
- 213-9039
- Mfr. Part No.:
- AP62301WU-7
- Brand:
- DiodesZetex
6000 In stock - FREE next working day delivery available
Added
Price Each (On a Reel of 3000)
£0.195
(exc. VAT)
£0.234
(inc. VAT)
| Units | Per unit | Per Reel* |
| 3000 + | £0.195 | £585.00 |
| *price indicative | ||
- RS Stock No.:
- 213-9039
- Mfr. Part No.:
- AP62301WU-7
- Brand:
- DiodesZetex
Technical Reference
Legislation and Compliance
Product Details
The DiodesZetex AP62301 series is synchronous buck converter with a wide input voltage range. It has a proprietary gate driver scheme to resist switching node ringing without sacrificing MOSFET turn-on and turn-off times, which reduces high frequency radi
Up to 89% efficiency at 5mA light load
Protection circuitry
Protection circuitry
Specifications
Attribute | Value |
|---|---|
| Minimum Output Voltage | 0.8 V |
| Maximum Output Voltage | 7 V |
| Minimum Input Voltage | 4.2 V |
| Maximum Input Voltage | 18 V |
| Minimum Output Current | 3A |
| Converter Type | Synchronous Buck |
| Number of Outputs | 1 |
| Output Type | Adjustable |
| Package Type | TSOT26 |
| Pin Count | 6 |
