Siemens Modulating Damper Actuator, 5 Nm, 24V
- RS Stock No.:
- 636-503
- Mfr. Part No.:
- GDB166.1E / S55499-D269
- Brand:
- Siemens
Subtotal (1 unit)*
£185.71
(exc. VAT)
£222.85
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 06 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £185.71 |
*price indicative
- RS Stock No.:
- 636-503
- Mfr. Part No.:
- GDB166.1E / S55499-D269
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Damper Actuator | |
| Maximum Damper Area | 0.8m² | |
| Switch Included | Yes | |
| Power Consumption | 1W | |
| For Use With | Used In Air Conditioning Plants | |
| Control Type | Modulating | |
| Supply Voltage | 24V | |
| Motor Torque | 5Nm | |
| IP Rating | IP54 | |
| Running Time | 150s | |
| Angle of Rotation | 90° | |
| Minimum Operating Temperature | -32°C | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | CE, UKCA | |
| Series | GDB | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Damper Actuator | ||
Maximum Damper Area 0.8m² | ||
Switch Included Yes | ||
Power Consumption 1W | ||
For Use With Used In Air Conditioning Plants | ||
Control Type Modulating | ||
Supply Voltage 24V | ||
Motor Torque 5Nm | ||
IP Rating IP54 | ||
Running Time 150s | ||
Angle of Rotation 90° | ||
Minimum Operating Temperature -32°C | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals CE, UKCA | ||
Series GDB | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CH

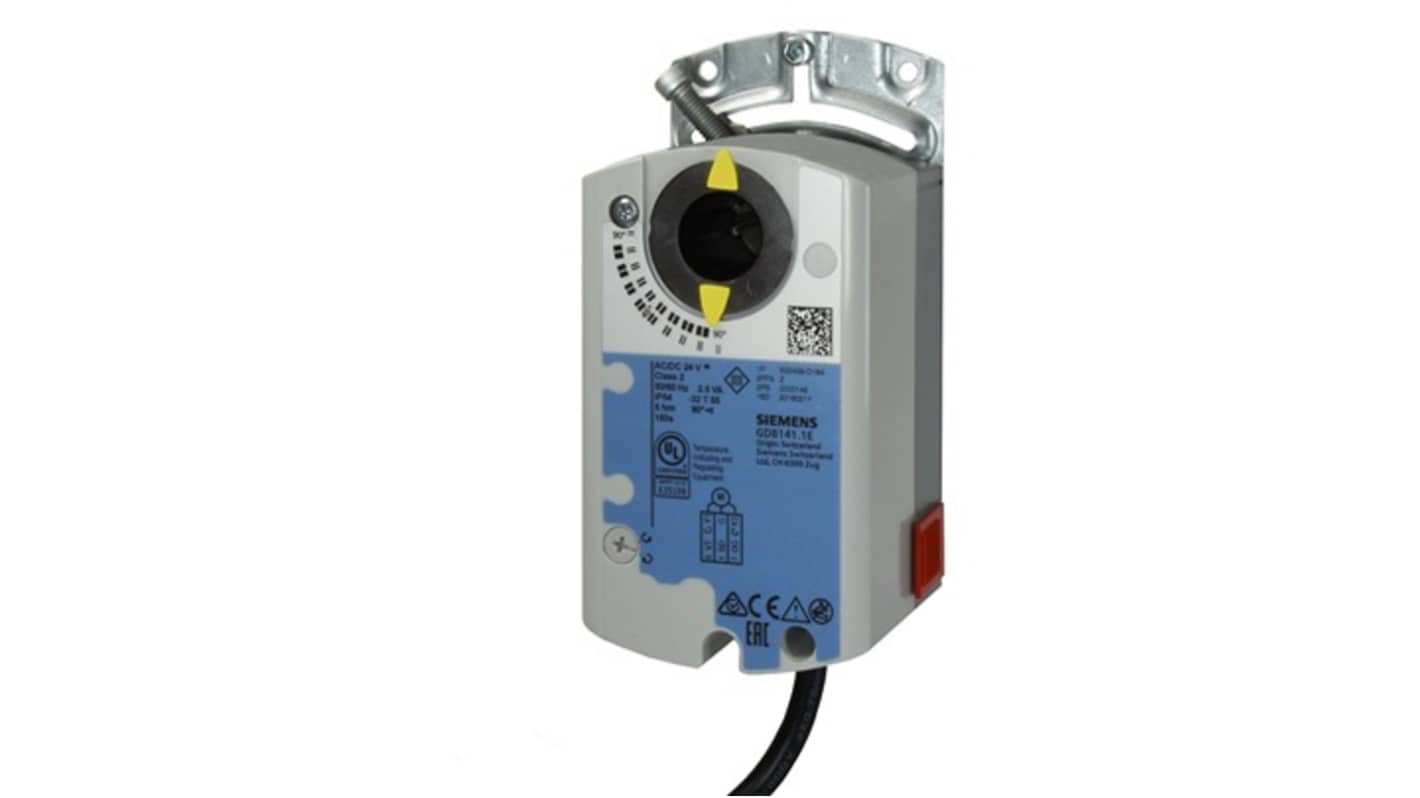

The Siemens Air damper actuator designed for modulating control of air dampers in HVAC systems. It operates on AC/DC 24 V and supports adjustable DC voltage input signals. With a torque rating of 5 Nm, it ensures smooth and accurate damper positioning. Its robust build and manual override capability make it suitable for demanding environments.
Maintenance free and low noise
Low power consumption
RoHS compliant
