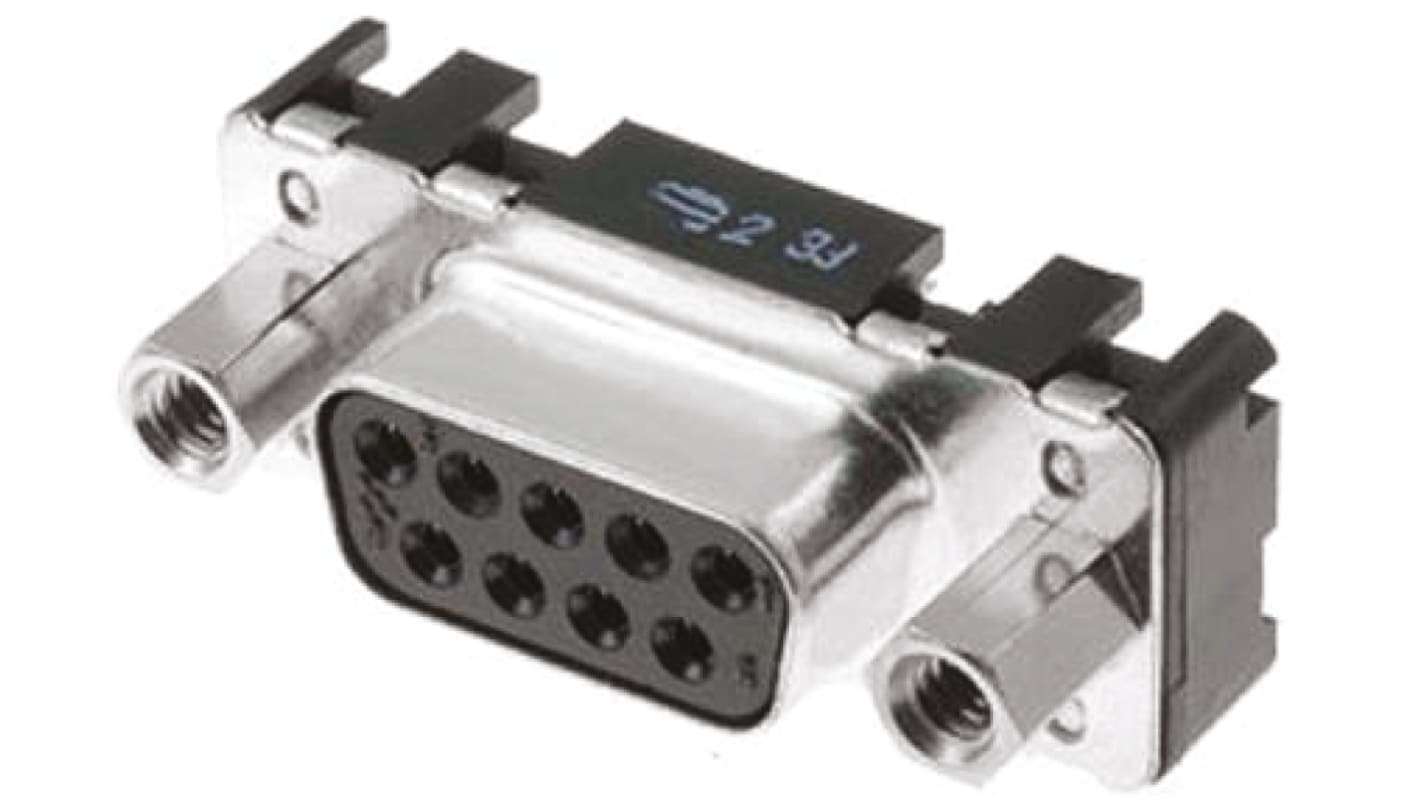

HARTING D-Sub Standard 9 Way Through Hole D-sub Connector Plug, 2.74mm Pitch, with 4-40 UNC Threaded Inserts, Boardlocks
- RS Stock No.:
- 923-1878
- Mfr. Part No.:
- 09651696713
- Brand:
- HARTING
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£6.19
(exc. VAT)
£7.43
(inc. VAT)
- RS Stock No.:
- 923-1878
- Mfr. Part No.:
- 09651696713
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Number of Contacts | 9 | |
| Gender | Male | |
| Body Orientation | Straight | |
| Mounting Type | Through Hole | |
| Pitch | 2.74mm | |
| Mounting Hardware | 4-40 UNC Threaded Inserts, Boardlocks | |
| Termination Method | Solder | |
| Current Rating | 6.5A | |
| Housing Material | Liquid Crystal Polymer | |
| Length | 31.2mm | |
| Width | 12.4mm | |
| Depth | 12.5mm | |
| Dimensions | 31.2 x 12.4 x 12.5mm | |
| Series | D-Sub Standard | |
| Contact Material | Copper Alloy | |
| Series Number | 965 | |
Select all | ||
|---|---|---|
Brand HARTING | ||
Number of Contacts 9 | ||
Gender Male | ||
Body Orientation Straight | ||
Mounting Type Through Hole | ||
Pitch 2.74mm | ||
Mounting Hardware 4-40 UNC Threaded Inserts, Boardlocks | ||
Termination Method Solder | ||
Current Rating 6.5A | ||
Housing Material Liquid Crystal Polymer | ||
Length 31.2mm | ||
Width 12.4mm | ||
Depth 12.5mm | ||
Dimensions 31.2 x 12.4 x 12.5mm | ||
Series D-Sub Standard | ||
Contact Material Copper Alloy | ||
Series Number 965 | ||
- COO (Country of Origin):
- CH
D-Sub Miniature Connector, Hi-Temp, SMC Stamped Pins
A range of D-sub miniature connectors with high temperture resistance and stamped pins with SMC, suitable for cable to board and Ideal for communication and data interface D-sub connector applications. Durable D-sub connectors with a good mating cycle and a plated steel metal connector housing.
Current capacity 6.5A
Test voltage 1kV
Contact resistance ≤10 mΩ
Thermoplastic resin, glass filled
Copper alloy contacts
Test voltage 1kV
Contact resistance ≤10 mΩ
Thermoplastic resin, glass filled
Copper alloy contacts
