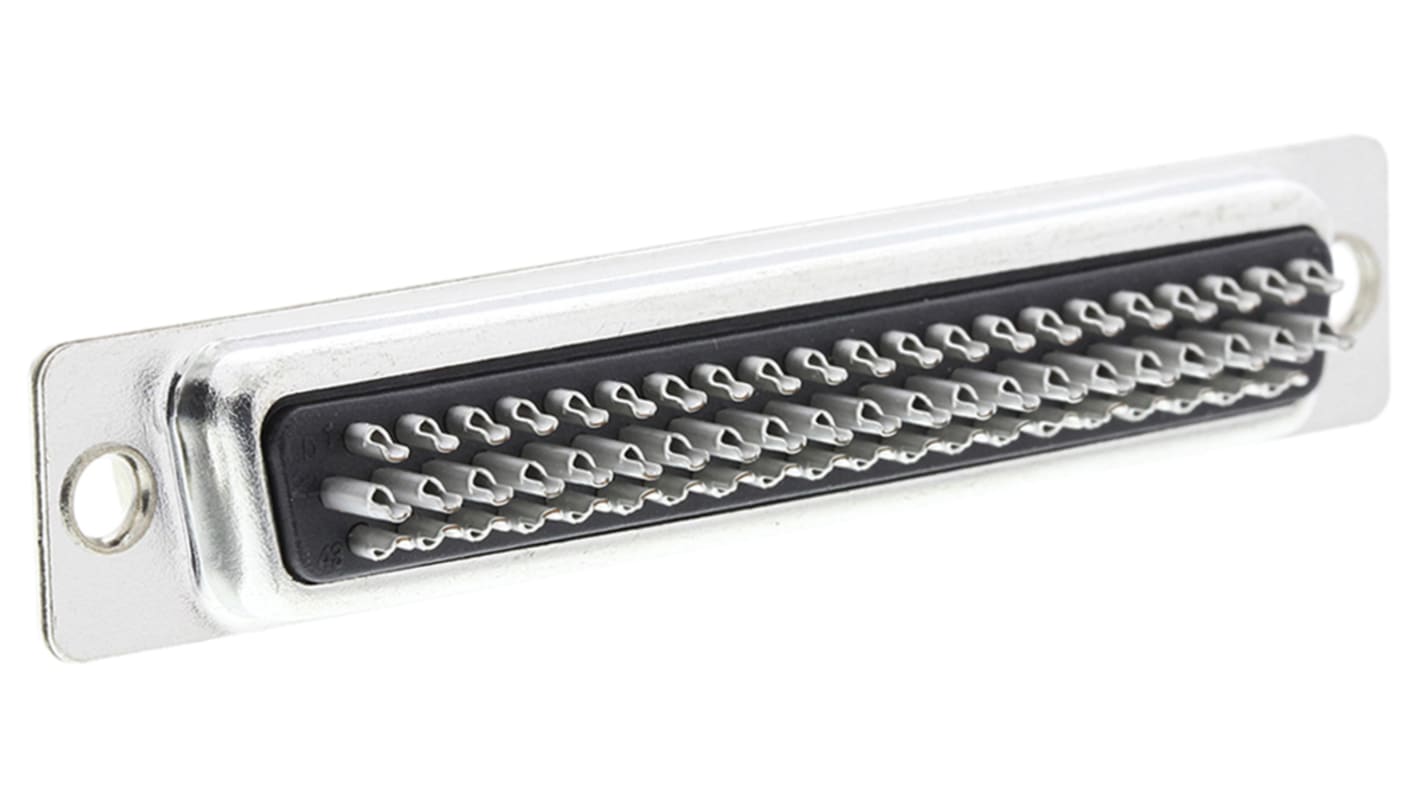

HARTING 62 Way Cable Mount D-sub Connector Socket, 2.42mm Pitch
- RS Stock No.:
- 923-0516
- Mfr. Part No.:
- 09564004704
- Brand:
- HARTING
Bulk discount available
Subtotal (1 box of 50 units)*
£366.10
(exc. VAT)
£439.30
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 50 - 50 | £7.322 | £366.10 |
| 100 + | £6.223 | £311.15 |
*price indicative
- RS Stock No.:
- 923-0516
- Mfr. Part No.:
- 09564004704
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Number of Contacts | 62 | |
| Gender | Female | |
| Body Orientation | Straight | |
| Mounting Type | Cable Mount | |
| Pitch | 2.42mm | |
| D Connector Type | High Density D-Sub | |
| D-Sub Shell Size | C | |
| Termination Method | Solder | |
| Current Rating | 2.0A | |
| Housing Material | Steel | |
| Length | 69.4mm | |
| Width | 12.55mm | |
| Contact Plating | Gold | |
| Contact Material | Copper Alloy | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -55.0°C | |
Select all | ||
|---|---|---|
Brand HARTING | ||
Number of Contacts 62 | ||
Gender Female | ||
Body Orientation Straight | ||
Mounting Type Cable Mount | ||
Pitch 2.42mm | ||
D Connector Type High Density D-Sub | ||
D-Sub Shell Size C | ||
Termination Method Solder | ||
Current Rating 2.0A | ||
Housing Material Steel | ||
Length 69.4mm | ||
Width 12.55mm | ||
Contact Plating Gold | ||
Contact Material Copper Alloy | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -55.0°C | ||
- COO (Country of Origin):
- CN
Sockets - Stamped Solder Cups (Performance level 3)
(Performance level 3) As per DIN 41 652, part 2, ≥ 50 mating cycles, no gas test
Harting D Sub High Density
The high density range exceeds the contact capacity of a standard subminiature D connector by 70%.
Stamped pins
Tinned metal shell (Male connector with dimples)
Tinned metal shell (Male connector with dimples)
