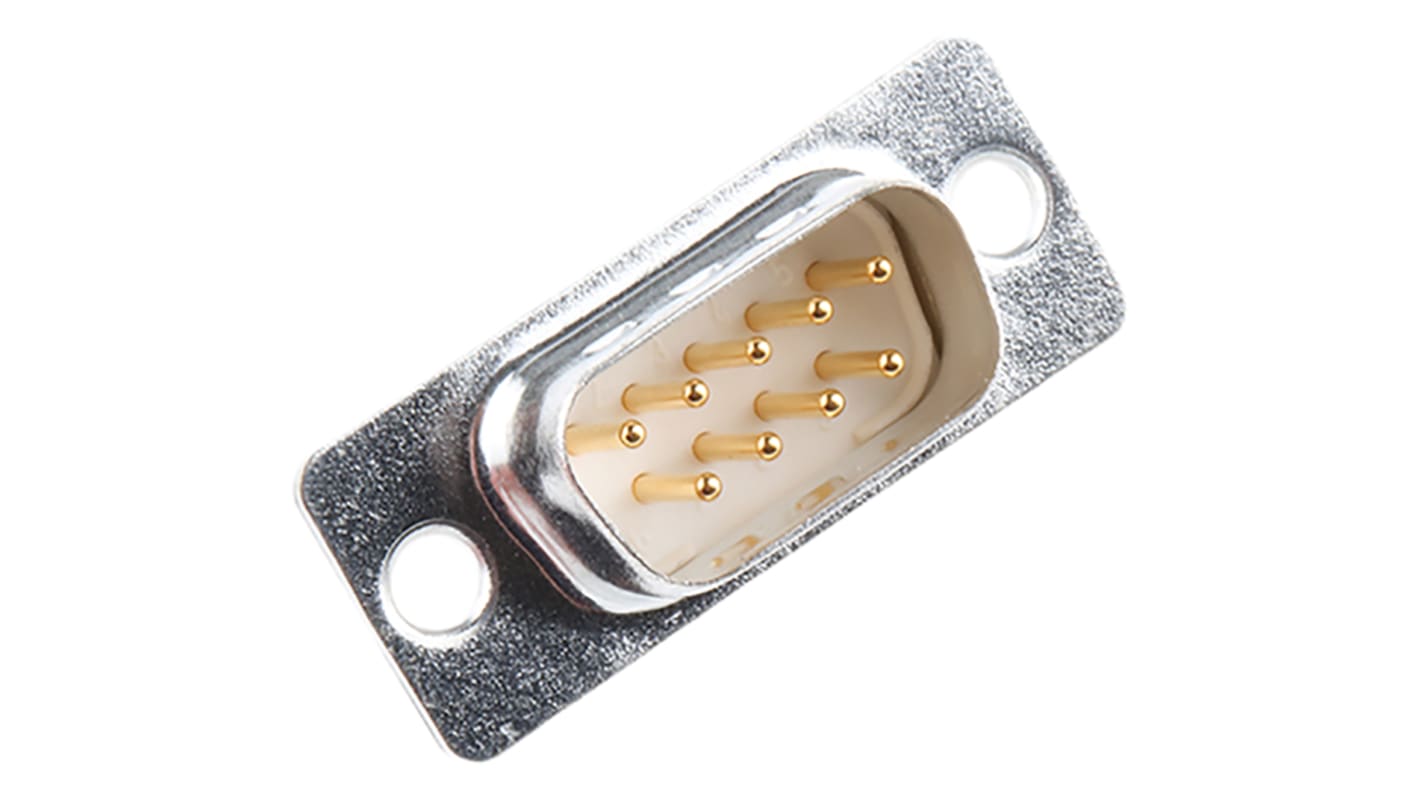

FCT from Molex F 9 Way Panel Mount D-sub Connector Plug, 2.84mm Pitch
- RS Stock No.:
- 812-6090
- Distrelec Article No.:
- 144-16-650
- Mfr. Part No.:
- F09P0G2 / 1727040160
- Brand:
- FCT from Molex
Bulk discount available
Subtotal (1 unit)*
£4.26
(exc. VAT)
£5.11
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 523 unit(s) ready to ship
- Plus 2,245 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 24 | £4.26 |
25 - 99 | £2.99 |
100 - 499 | £2.81 |
500 + | £2.68 |
*price indicative
- RS Stock No.:
- 812-6090
- Distrelec Article No.:
- 144-16-650
- Mfr. Part No.:
- F09P0G2 / 1727040160
- Brand:
- FCT from Molex
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FCT from Molex | |
Number of Contacts | 9 | |
Gender | Male | |
Body Orientation | Straight | |
Mounting Type | Panel Mount | |
Pitch | 2.84mm | |
D Connector Type | Standard D-Sub | |
Termination Method | Solder | |
D-Sub Shell Size | E | |
Current Rating | 7.5A | |
Housing Material | Steel | |
Length | 30.8mm | |
Width | 6.0mm | |
Depth | 12.5mm | |
Series | F | |
Contact Material | Copper Alloy | |
Dimensions | 30.8 x 6 x 12.5mm | |
Maximum Operating Temperature | +125°C | |
Minimum Operating Temperature | -55°C | |
Series Number | FCT | |
Select all | ||
---|---|---|
Brand FCT from Molex | ||
Number of Contacts 9 | ||
Gender Male | ||
Body Orientation Straight | ||
Mounting Type Panel Mount | ||
Pitch 2.84mm | ||
D Connector Type Standard D-Sub | ||
Termination Method Solder | ||
D-Sub Shell Size E | ||
Current Rating 7.5A | ||
Housing Material Steel | ||
Length 30.8mm | ||
Width 6.0mm | ||
Depth 12.5mm | ||
Series F | ||
Contact Material Copper Alloy | ||
Dimensions 30.8 x 6 x 12.5mm | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -55°C | ||
Series Number FCT | ||
