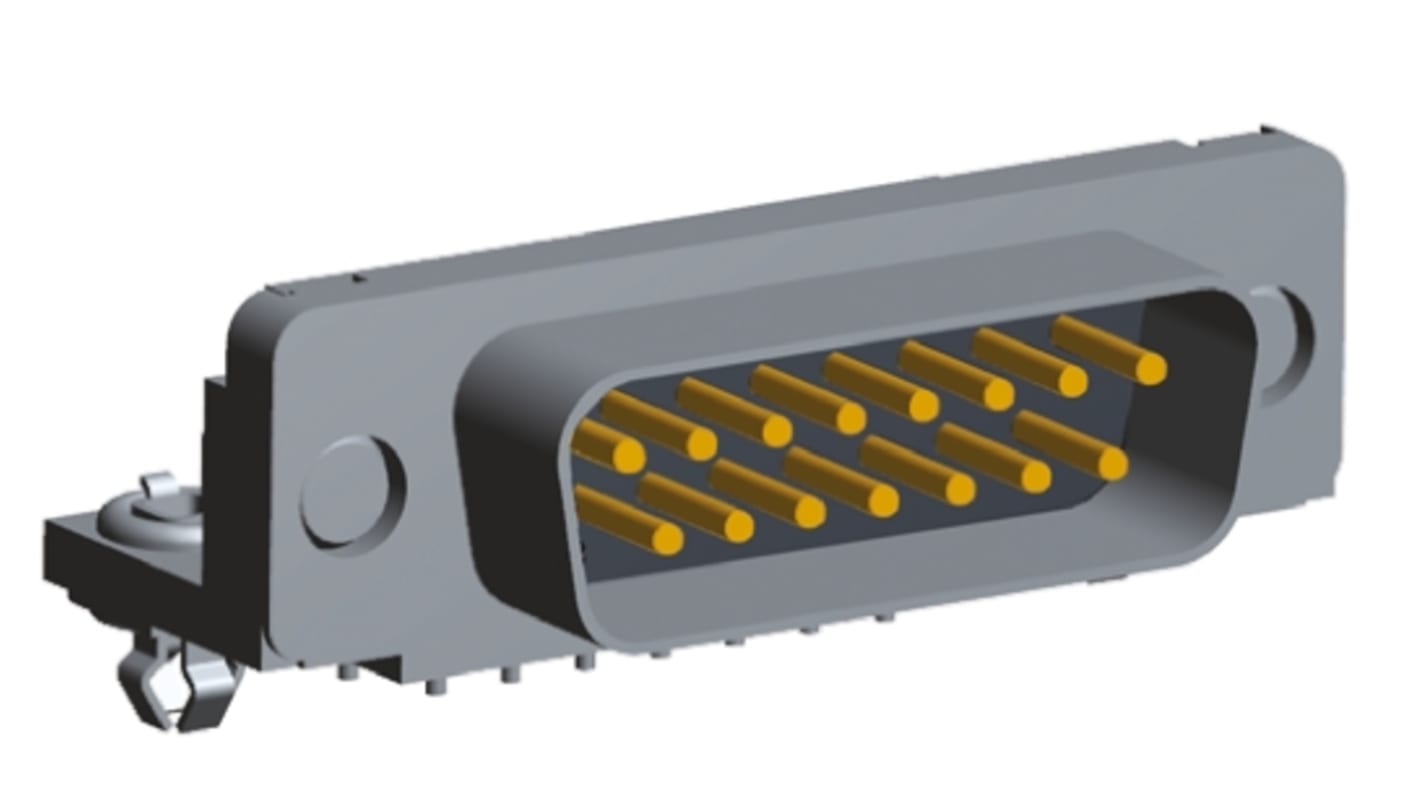

TE Connectivity Amplimite HD-20 15 Way Right Angle Through Hole D-sub Connector Plug, 2.84mm Pitch, with 4-40 UNC
- RS Stock No.:
- 798-1076
- Mfr. Part No.:
- 5747841-3
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£3.23
(exc. VAT)
£3.88
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 25 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3.23 |
*price indicative
- RS Stock No.:
- 798-1076
- Mfr. Part No.:
- 5747841-3
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 15 | |
| Gender | Male | |
| Body Orientation | Right Angle | |
| Mounting Type | Through Hole | |
| Pitch | 2.84mm | |
| Mounting Hardware | 4-40 UNC Threaded Inserts, Boardlocks | |
| Termination Method | Solder | |
| Housing Material | Thermoplastic | |
| Voltage Rating | 250.0 V | |
| Length | 39.14mm | |
| Width | 18.62mm | |
| Depth | 12.55mm | |
| Contact Material | Brass | |
| Dimensions | 39.14 x 18.62 x 12.55mm | |
| Series | Amplimite HD-20 | |
| Contact Plating | Gold | |
| Contact Size | 20 | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -55.0°C | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 15 | ||
Gender Male | ||
Body Orientation Right Angle | ||
Mounting Type Through Hole | ||
Pitch 2.84mm | ||
Mounting Hardware 4-40 UNC Threaded Inserts, Boardlocks | ||
Termination Method Solder | ||
Housing Material Thermoplastic | ||
Voltage Rating 250.0 V | ||
Length 39.14mm | ||
Width 18.62mm | ||
Depth 12.55mm | ||
Contact Material Brass | ||
Dimensions 39.14 x 18.62 x 12.55mm | ||
Series Amplimite HD-20 | ||
Contact Plating Gold | ||
Contact Size 20 | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -55.0°C | ||
