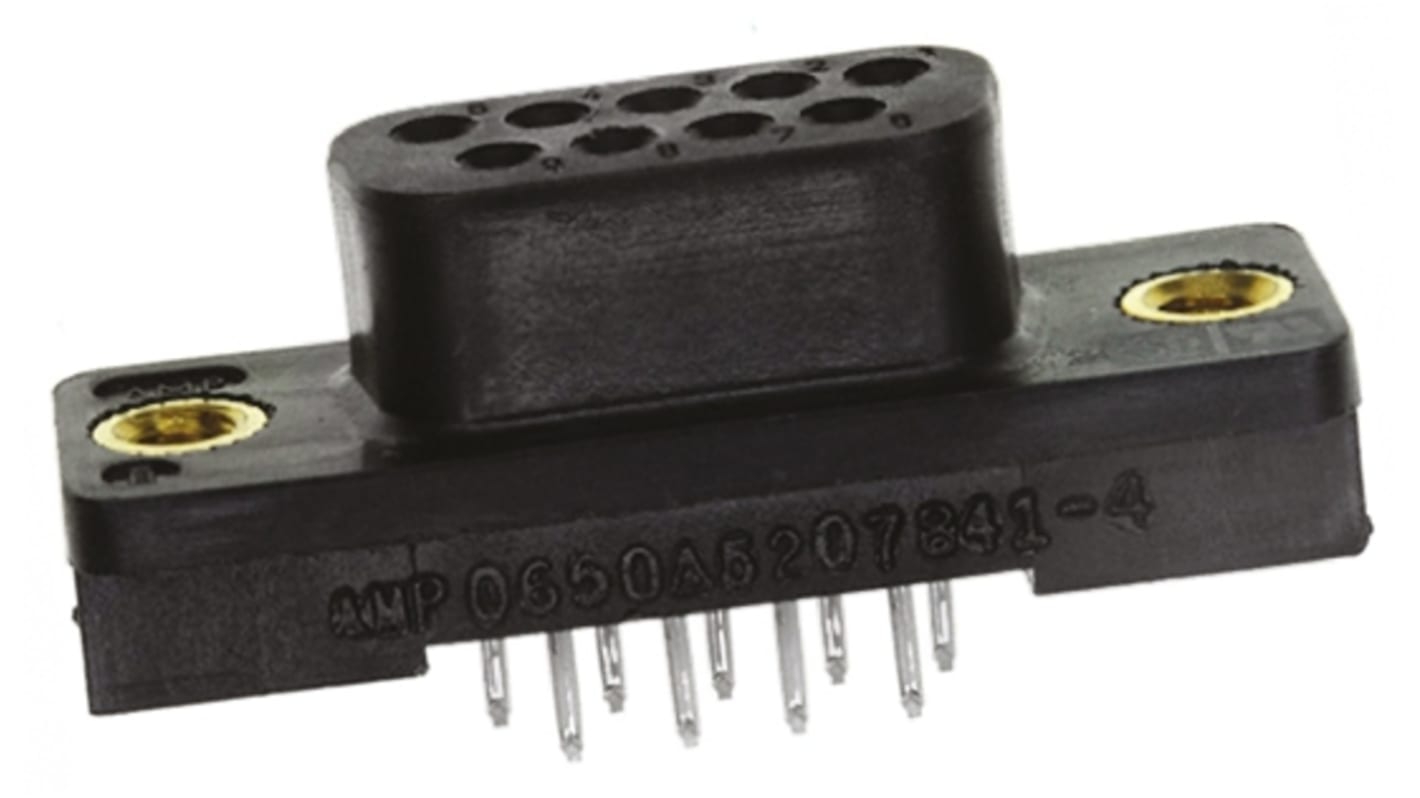

TE Connectivity Amplimite HD-20 9 Way Through Hole PCB D-sub Connector Socket, with 4-40 UNC, Threaded Insert
- RS Stock No.:
- 782-9707
- Mfr. Part No.:
- 5207841-4
- Brand:
- TE Connectivity
Discontinued product
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 782-9707
- Mfr. Part No.:
- 5207841-4
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
AMPLIMITE HD-20 Series, All-Plastic, PCB Mount D-Sub Connectors
AMPLIMITE HD-20 All-Plastic series straight posted PCB mount d-sub connectors with 94V-0 black thermoplastic housings pre-loaded with size 20 DF posted pin contacts gold plated. These HD-20 All-Plastic PCB board mount d-sub connectors have 3.18mm posts and either 3.05mm mounting holes, threaded inserts orfixed female screwlocks.
For suitable screwlocks where required see stock numbers 717-4470 and 680-9351 typically.
For suitable screwlocks where required see stock numbers 717-4470 and 680-9351 typically.
Note
3.18mm post length is recommended for PCB thickness of 1.58 to 2.36mm max
TE Connectivity AMPLIMITE D-Subminiature Connectors
Specifications
Attribute | Value |
---|---|
Number of Contacts | 9 |
Gender | Female |
Body Orientation | Straight |
Mounting Type | Through Hole |
Mounting Hardware | 4-40 UNC, Threaded Insert |
Housing Material | Thermoplastic |
Voltage Rating | 250 V ac |
Contact Plating | Gold |
Contact Material | Phosphor Bronze |
Series | Amplimite HD-20 |
