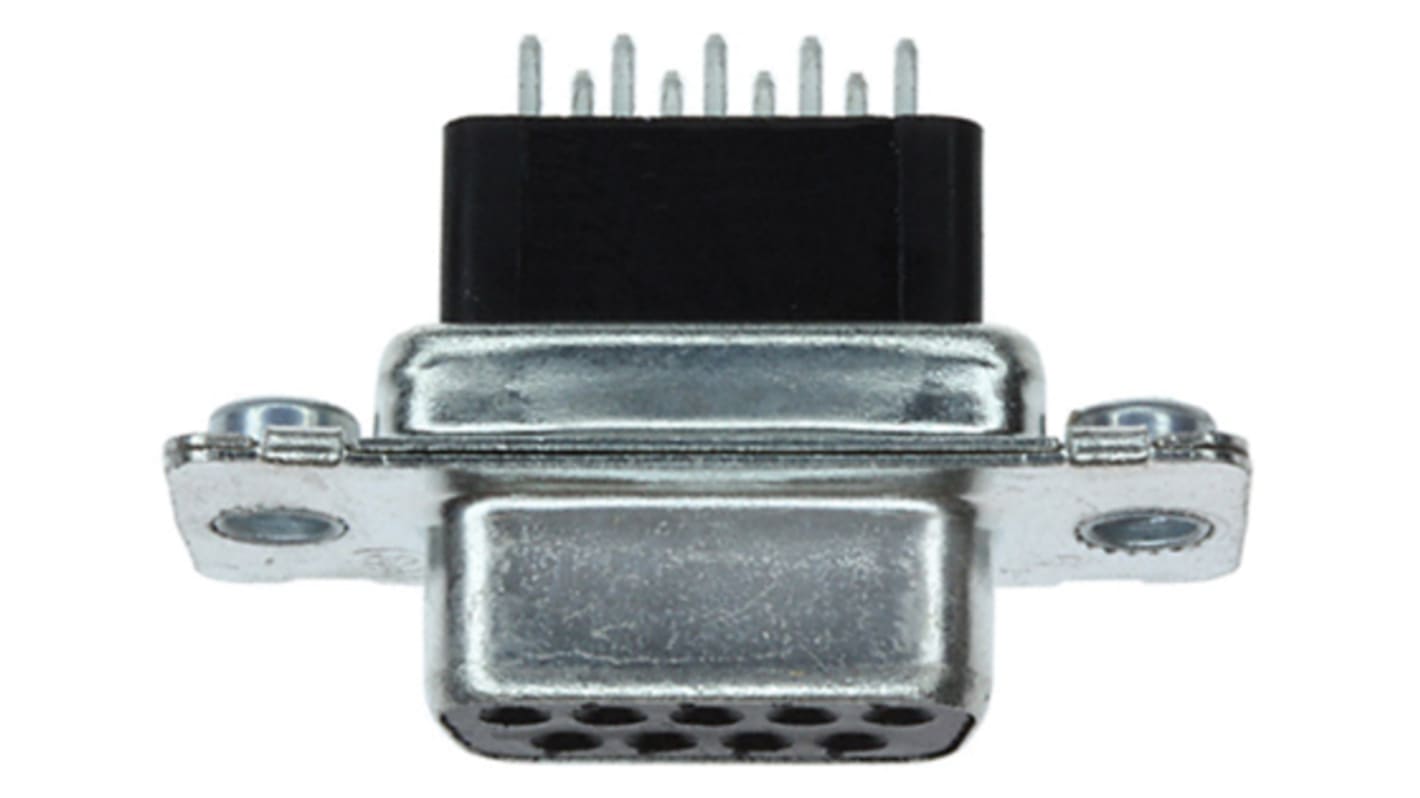

TE Connectivity Amplimite HD-20 9 Way Through Hole PCB D-sub Connector Socket, 2.74mm Pitch, with 4-40 UNC Clinch Nuts
- RS Stock No.:
- 798-1173
- Mfr. Part No.:
- 5747190-2
- Brand:
- TE Connectivity
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£4.13
(exc. VAT)
£4.96
(inc. VAT)
- RS Stock No.:
- 798-1173
- Mfr. Part No.:
- 5747190-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 9 | |
| Gender | Female | |
| Body Orientation | Straight | |
| Mounting Type | Through Hole | |
| Pitch | 2.74mm | |
| Mounting Hardware | 4-40 UNC Clinch Nuts | |
| Housing Material | Thermoplastic | |
| Voltage Rating | 250 V ac/dc | |
| Length | 30.81mm | |
| Width | 17.55mm | |
| Depth | 12.55mm | |
| Contact Plating | Gold | |
| Contact Material | Phosphor Bronze | |
| Series | Amplimite HD-20 | |
| Dimensions | 30.81 x 17.55 x 12.55mm | |
| Maximum Operating Temperature | +105°C | |
| Contact Size | 20 | |
| Minimum Operating Temperature | -55°C | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 9 | ||
Gender Female | ||
Body Orientation Straight | ||
Mounting Type Through Hole | ||
Pitch 2.74mm | ||
Mounting Hardware 4-40 UNC Clinch Nuts | ||
Housing Material Thermoplastic | ||
Voltage Rating 250 V ac/dc | ||
Length 30.81mm | ||
Width 17.55mm | ||
Depth 12.55mm | ||
Contact Plating Gold | ||
Contact Material Phosphor Bronze | ||
Series Amplimite HD-20 | ||
Dimensions 30.81 x 17.55 x 12.55mm | ||
Maximum Operating Temperature +105°C | ||
Contact Size 20 | ||
Minimum Operating Temperature -55°C | ||
- COO (Country of Origin):
- MX
AMPLIMITE D-Sub Connector, HD-20 Series, Full Metal Shell, PCB Mount, Straight Posted
AMPLIMITE HD-20 series straight posted PCB mount D-Sub connectors with tin plated steel full metal shells and 94V-0 black thermoplastic inserts preloaded with size 20 DF posted brass pin contacts or phosphor bronze socket contacts with gold plating. For additional data please refer to table.
TE Connectivity AMPLIMITE D-Subminiature Connectors
