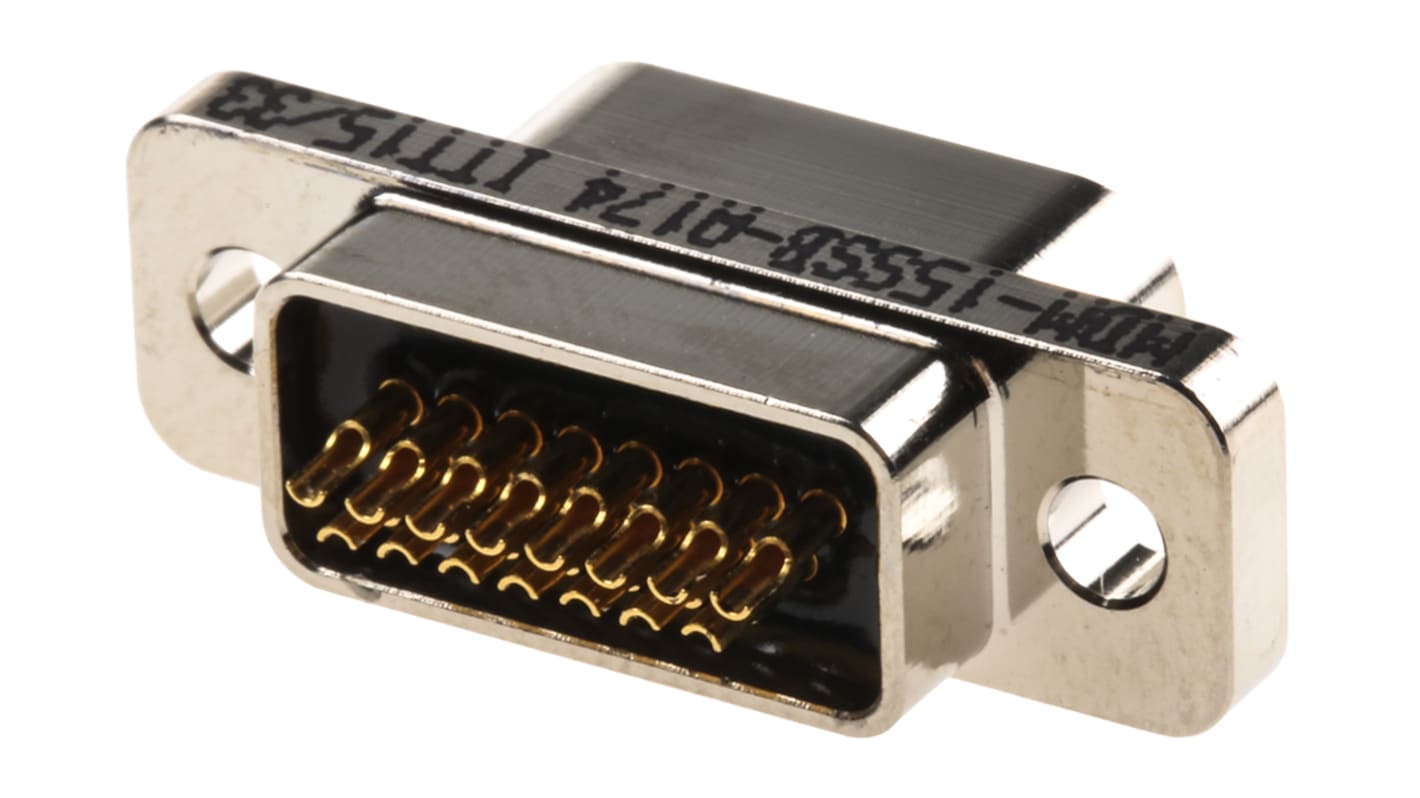

ITT Cannon MDM 15 Way Panel Mount D-sub Connector Socket, 1.27mm Pitch
- RS Stock No.:
- 770-7859
- Mfr. Part No.:
- MDM-15SSB-A174
- Brand:
- ITT Cannon
Bulk discount available
Subtotal (1 unit)*
£157.51
(exc. VAT)
£189.01
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 18 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 19 | £157.51 |
| 20 - 39 | £141.76 |
| 40 + | £127.59 |
*price indicative
- RS Stock No.:
- 770-7859
- Mfr. Part No.:
- MDM-15SSB-A174
- Brand:
- ITT Cannon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ITT Cannon | |
| Number of Contacts | 15 | |
| Gender | Female | |
| Body Orientation | Straight | |
| Mounting Type | Panel Mount | |
| Pitch | 1.27mm | |
| D Connector Type | Micro-D | |
| Termination Method | Solder | |
| Current Rating | 3A | |
| Housing Material | Aluminium Alloy | |
| Length | 23.75mm | |
| Width | 7.82mm | |
| Depth | 10.09mm | |
| Contact Material | Copper Alloy | |
| Series | MDM | |
| Dimensions | 23.75 x 7.82 x 10.09mm | |
| Contact Plating | Gold | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -55.0°C | |
| Contact Size | 24 | |
Select all | ||
|---|---|---|
Brand ITT Cannon | ||
Number of Contacts 15 | ||
Gender Female | ||
Body Orientation Straight | ||
Mounting Type Panel Mount | ||
Pitch 1.27mm | ||
D Connector Type Micro-D | ||
Termination Method Solder | ||
Current Rating 3A | ||
Housing Material Aluminium Alloy | ||
Length 23.75mm | ||
Width 7.82mm | ||
Depth 10.09mm | ||
Contact Material Copper Alloy | ||
Series MDM | ||
Dimensions 23.75 x 7.82 x 10.09mm | ||
Contact Plating Gold | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -55.0°C | ||
Contact Size 24 | ||
ITT 1.27mm Micro-D Connectors - MDM Series
MDM series moisture sealed Micro-D connectors with a lightweight, rugged design and high density contact configurations on a 1.27mm pitch. These MDM microminiature D connectors have electroless nickel plated aluminium shells for added strength and EMI and RFI shielding along with silicone elastomer compression interfacial seals that provide protection against moisture and humidity between each contact and contacts and shell. The contacts of these MDM Micro-D connectors are size 24 MICROPIN™ or MICROSOCKET™ contacts which are made from copper alloy with a gold plating. These Micro-D connectors have 2.31mm mounting holes and are available with various termination options:
Part numbers: MDM-xxxSB-xxx have solder pot terminations that accept 26AWG max harness wire.
Part numbers: MDM-xxxH003B-xxx have harness wire terminations (18", 7 strand 26AWG to MIL-W-16878/4, Type E Teflon, colour coded to MIL-STD-681 system I).
Part numbers: MDM-xxxL1B-xxx have 0.5" uninsulated solid 25AWG gold plated copper wire terminations.
Part numbers: MDM-xxxSB-xxx have solder pot terminations that accept 26AWG max harness wire.
Part numbers: MDM-xxxH003B-xxx have harness wire terminations (18", 7 strand 26AWG to MIL-W-16878/4, Type E Teflon, colour coded to MIL-STD-681 system I).
Part numbers: MDM-xxxL1B-xxx have 0.5" uninsulated solid 25AWG gold plated copper wire terminations.
Note
ITT D Type Connectors
Suitable for military, industrial or commercial applications and computer interfacing etc.
