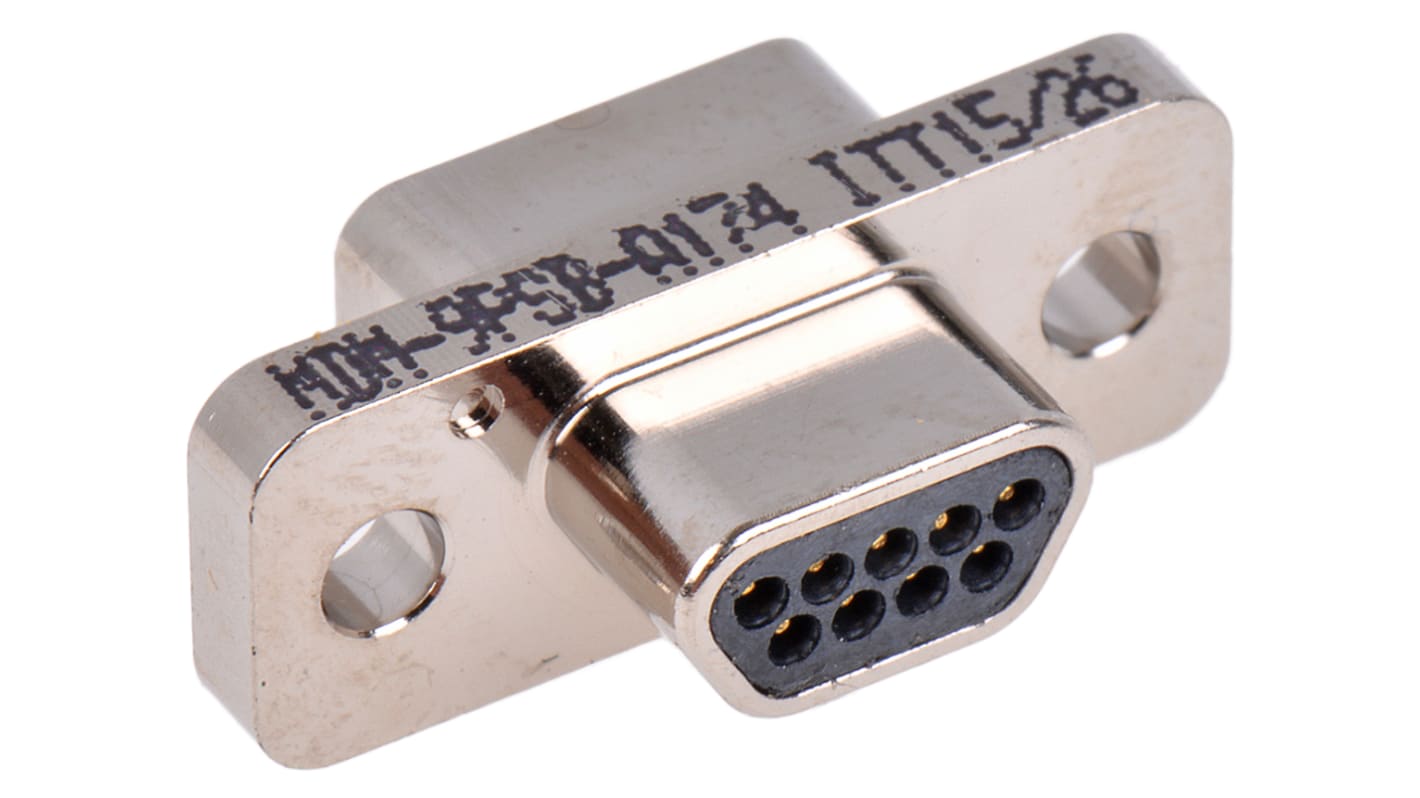

ITT Cannon MDM 9 Way Panel Mount D-sub Connector Plug, 1.27mm Pitch
- RS Stock No.:
- 770-7843
- Mfr. Part No.:
- MDM-9PSB-A174
- Brand:
- ITT Cannon
Bulk discount available
Subtotal (1 unit)*
£109.63
(exc. VAT)
£131.56
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 10 unit(s) shipping from 26 December 2025
- Plus 10 unit(s) shipping from 30 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 19 | £109.63 |
| 20 - 39 | £98.67 |
| 40 + | £88.80 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£127.40
(exc. VAT)
£152.88
(inc. VAT)
- RS Stock No.:
- 770-7843
- Mfr. Part No.:
- MDM-9PSB-A174
- Brand:
- ITT Cannon
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ITT Cannon | |
| Number of Contacts | 9 | |
| Gender | Male | |
| Body Orientation | Straight | |
| Mounting Type | Panel Mount | |
| Pitch | 1.27mm | |
| D Connector Type | Micro-D | |
| Termination Method | Solder | |
| Current Rating | 3A | |
| Housing Material | Aluminium Alloy | |
| Length | 19.94mm | |
| Width | 7.82mm | |
| Depth | 10.57mm | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Dimensions | 19.94 x 7.82 x 10.57mm | |
| Series | MDM | |
| Maximum Operating Temperature | +125°C | |
| Contact Size | 24 | |
| Minimum Operating Temperature | -55.0°C | |
Select all | ||
|---|---|---|
Brand ITT Cannon | ||
Number of Contacts 9 | ||
Gender Male | ||
Body Orientation Straight | ||
Mounting Type Panel Mount | ||
Pitch 1.27mm | ||
D Connector Type Micro-D | ||
Termination Method Solder | ||
Current Rating 3A | ||
Housing Material Aluminium Alloy | ||
Length 19.94mm | ||
Width 7.82mm | ||
Depth 10.57mm | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Dimensions 19.94 x 7.82 x 10.57mm | ||
Series MDM | ||
Maximum Operating Temperature +125°C | ||
Contact Size 24 | ||
Minimum Operating Temperature -55.0°C | ||
