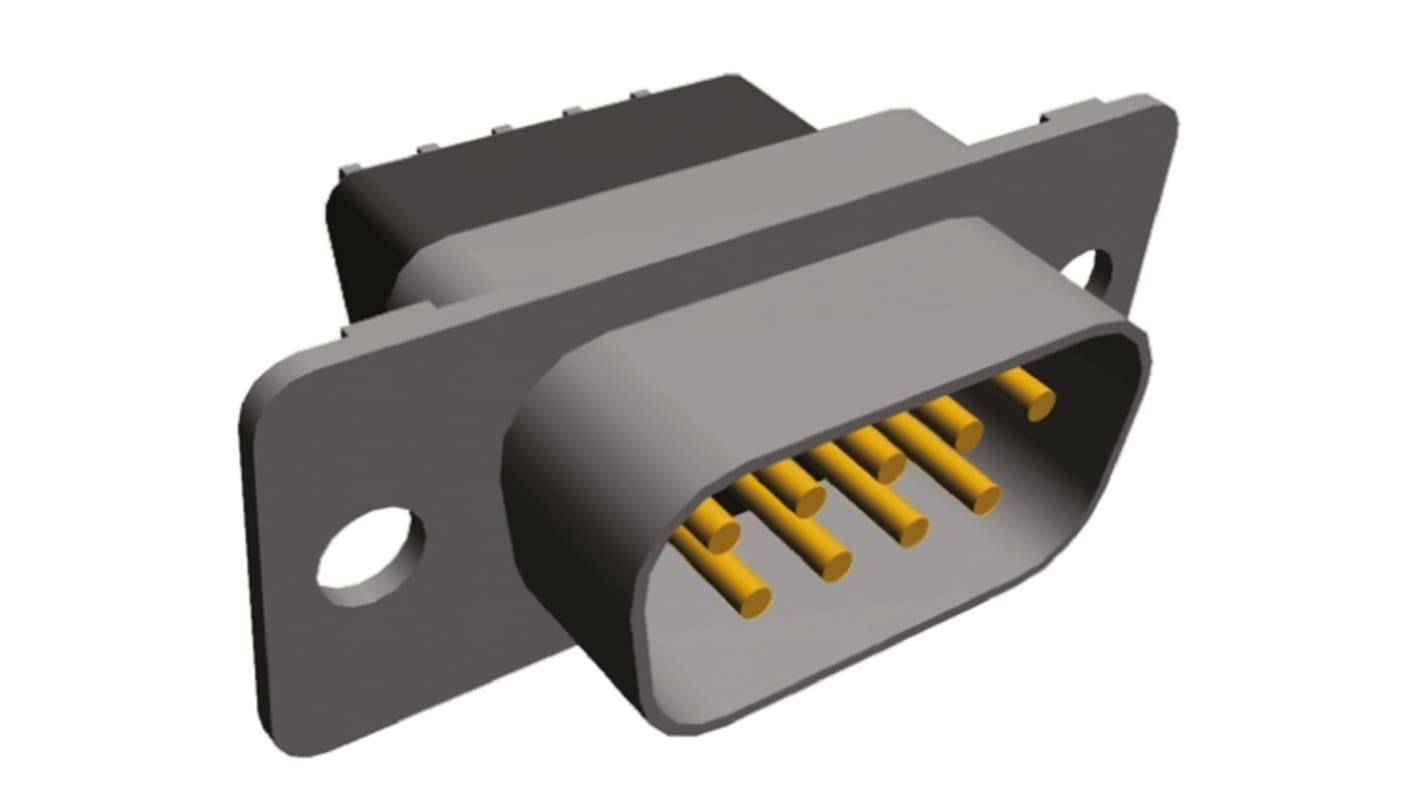

TE Connectivity AMPLIMITE HD-20 9 Way Straight 2.743 mm Pitch Through Hole D-Sub Connector, with 3.05 mm Mount Hole Male
- RS Stock No.:
- 756-1076
- Mfr. Part No.:
- 5745182-2
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£6.04
(exc. VAT)
£7.25
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 80 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £6.04 |
| 25 - 74 | £5.82 |
| 75 - 199 | £5.66 |
| 200 - 399 | £5.51 |
| 400 + | £5.37 |
*price indicative
- RS Stock No.:
- 756-1076
- Mfr. Part No.:
- 5745182-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 9 | |
| Product Type | D-Sub Connector | |
| Orientation | Straight | |
| Mount Type | Through Hole | |
| Connector Gender | Male | |
| Connector Type D | D-Sub | |
| Mounting Hardware | 3.05 mm Mount Hole | |
| Housing Material | Glass Filled Nylon | |
| Voltage | 250.0 V | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Contact Plating | Gold over Nickel | |
| Series | AMPLIMITE HD-20 | |
| Contact Material | Brass | |
| Pitch | 2.743mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 9 | ||
Product Type D-Sub Connector | ||
Orientation Straight | ||
Mount Type Through Hole | ||
Connector Gender Male | ||
Connector Type D D-Sub | ||
Mounting Hardware 3.05 mm Mount Hole | ||
Housing Material Glass Filled Nylon | ||
Voltage 250.0 V | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Contact Gender Male | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Contact Plating Gold over Nickel | ||
Series AMPLIMITE HD-20 | ||
Contact Material Brass | ||
Pitch 2.743mm | ||
AMPLIMITE D-Sub Connector, HD-20 Series, Full Metal Shell, PCB Mount, Straight Posted
AMPLIMITE HD-20 series straight posted PCB mount D-Sub connectors with tin plated steel full metal shells and 94V-0 black thermoplastic inserts preloaded with size 20 DF posted brass pin contacts or phosphor bronze socket contacts with gold plating. For additional data please refer to table.
TE Connectivity AMPLIMITE D-Subminiature Connectors
