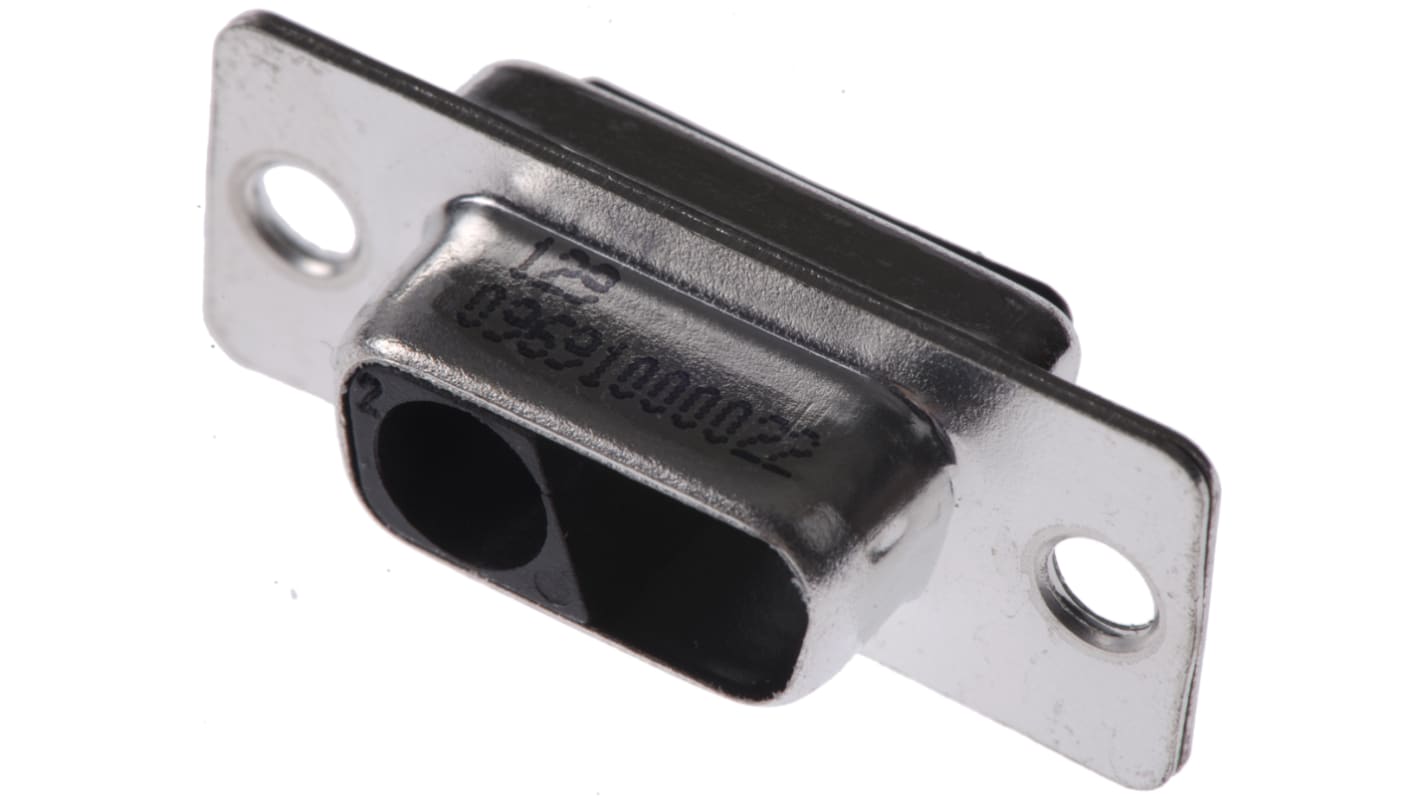

HARTING D-Sub 2 Way Straight D-Sub Connector Male/Female 6.86 mm Pitch
- RS Stock No.:
- 693-0985
- Distrelec Article No.:
- 304-22-764
- Mfr. Part No.:
- 09691000022
- Brand:
- HARTING
Bulk discount available
Subtotal (1 unit)*
£3.60
(exc. VAT)
£4.32
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 44 unit(s) shipping from 02 March 2026
- Plus 200 unit(s) shipping from 26 March 2026
- Plus 100 unit(s) shipping from 15 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 49 | £3.60 |
| 50 - 99 | £3.02 |
| 100 - 249 | £2.87 |
| 250 - 499 | £2.51 |
| 500 + | £2.43 |
*price indicative
- RS Stock No.:
- 693-0985
- Distrelec Article No.:
- 304-22-764
- Mfr. Part No.:
- 09691000022
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Product Type | D-Sub Connector | |
| Number of Contacts | 2 | |
| Orientation | Straight | |
| Connector Gender | Male/Female | |
| Mixed Contact Layout | 2W2C | |
| Housing Material | Steel | |
| Voltage | 1000 V | |
| Minimum Operating Temperature | -55°C | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Contact Plating | Tin | |
| Series | D-Sub | |
| Pitch | 6.86mm | |
| Select all | ||
|---|---|---|
Brand HARTING | ||
Product Type D-Sub Connector | ||
Number of Contacts 2 | ||
Orientation Straight | ||
Connector Gender Male/Female | ||
Mixed Contact Layout 2W2C | ||
Housing Material Steel | ||
Voltage 1000 V | ||
Minimum Operating Temperature -55°C | ||
Contact Gender Female | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Contact Plating Tin | ||
Series D-Sub | ||
Pitch 6.86mm | ||
Coded shells without signal contacts for cable applications
Tinned metal shell
Flange through hole 3.1 mm
With coding
D-Sub Mixed - Harting
Standards
DIN 41 652 T1
