TE Connectivity Amplimite HDP-20 15 Way Cable Mount D-sub Connector
- RS Stock No.:
- 680-9156P
- Mfr. Part No.:
- 1658656-1
- Brand:
- TE Connectivity
Bulk discount available
Subtotal 25 units (supplied in a bag)*
£270.00
(exc. VAT)
£324.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 100 unit(s) shipping from 15 January 2026
- Plus 100 unit(s) shipping from 19 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
25 - 74 | £10.80 |
75 - 199 | £8.56 |
200 - 399 | £8.12 |
400 + | £7.72 |
*price indicative
- RS Stock No.:
- 680-9156P
- Mfr. Part No.:
- 1658656-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Number of Contacts | 15 | |
Body Orientation | Straight | |
Mounting Type | Cable Mount | |
Termination Method | Crimp | |
Housing Material | Nylon | |
Series | Amplimite HDP-20 | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Number of Contacts 15 | ||
Body Orientation Straight | ||
Mounting Type Cable Mount | ||
Termination Method Crimp | ||
Housing Material Nylon | ||
Series Amplimite HDP-20 | ||
- COO (Country of Origin):
- US
AMPLIMITE D-Sub Connector, HDP-20 Series, Shielding Hardware Enclosure Kits

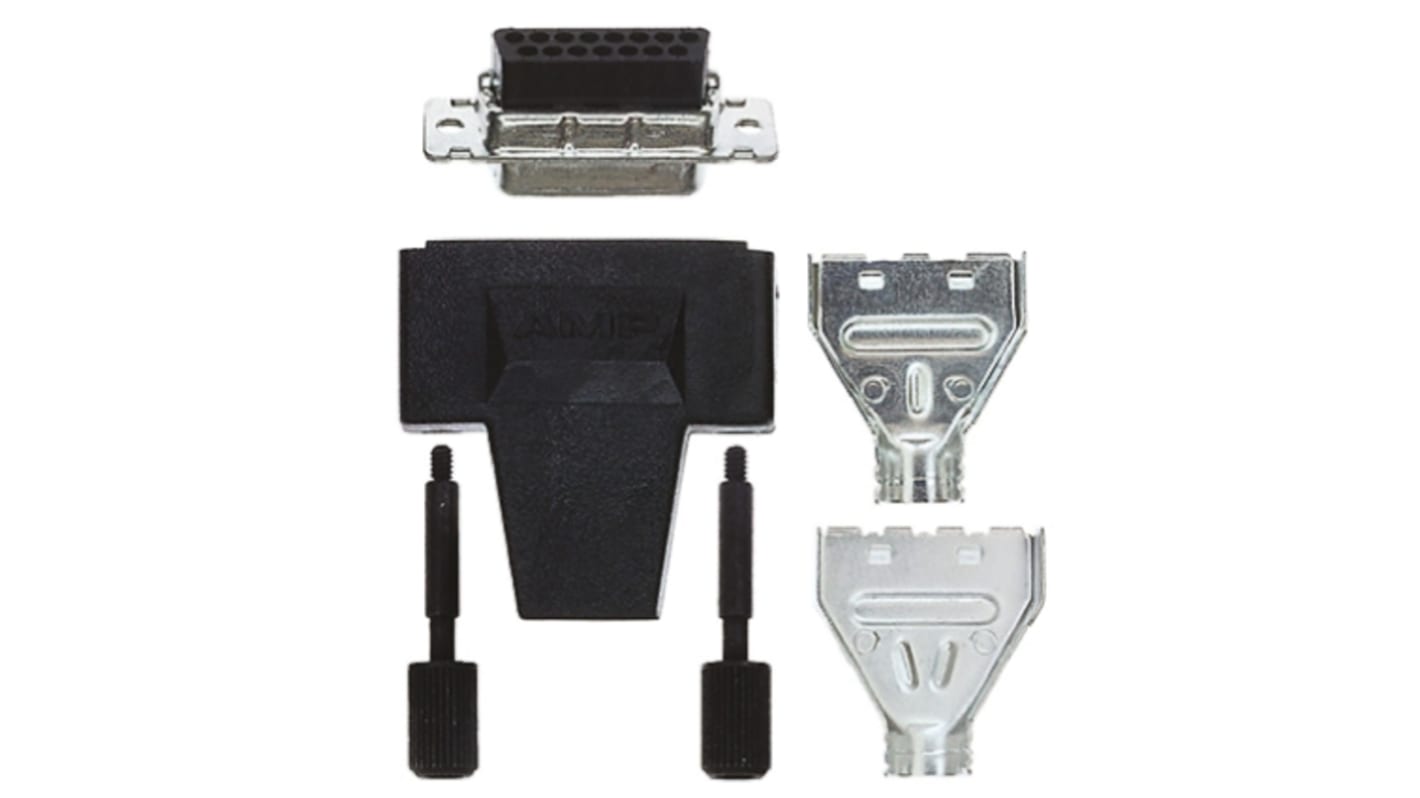

AMPLIMITE HDP-20 shielding hardware enclosure kits consisting of a d-sub connector, inner shield, outer shield, enclosure and two jackscrews. These AMPLIMITE HDP-20 d-sub shielding hardware enclosure kits have tin plated steel shields, 94V-0 black thermoplastic connector inserts and black PVC enclosures. The contacts for these HDP-20 d-sub connector kits must be purchased separately, see stock numbers 680-8910 and 680-9698 typically and insertion/extraction tool 446-822. The ferrules for these HDP-20 d-sub connector kits must also be purchased separately see stock numbers 301-8199 and 301-8228 typically. These HDP-20 d-sub shielding hardware enclosure kits will mate with the HDE series, HDP series and HD-20 series board mount d-sub connectors.
For female screwlocks see stock numbers 717-4470, 680-9288 typically
For male screw retainers see stock numbers 717-4543, 680-9288 and 450-9309 typically
For locking post assembly see stock number 450-9365
For 2 piece spring latch see stock number 450-9321
For female screwlocks see stock numbers 717-4470, 680-9288 typically
For male screw retainers see stock numbers 717-4543, 680-9288 and 450-9309 typically
For locking post assembly see stock number 450-9365
For 2 piece spring latch see stock number 450-9321
Note
Contacts and ferrules must be purchased separately
TE Connectivity AMPLIMITE D-Subminiature Connectors
