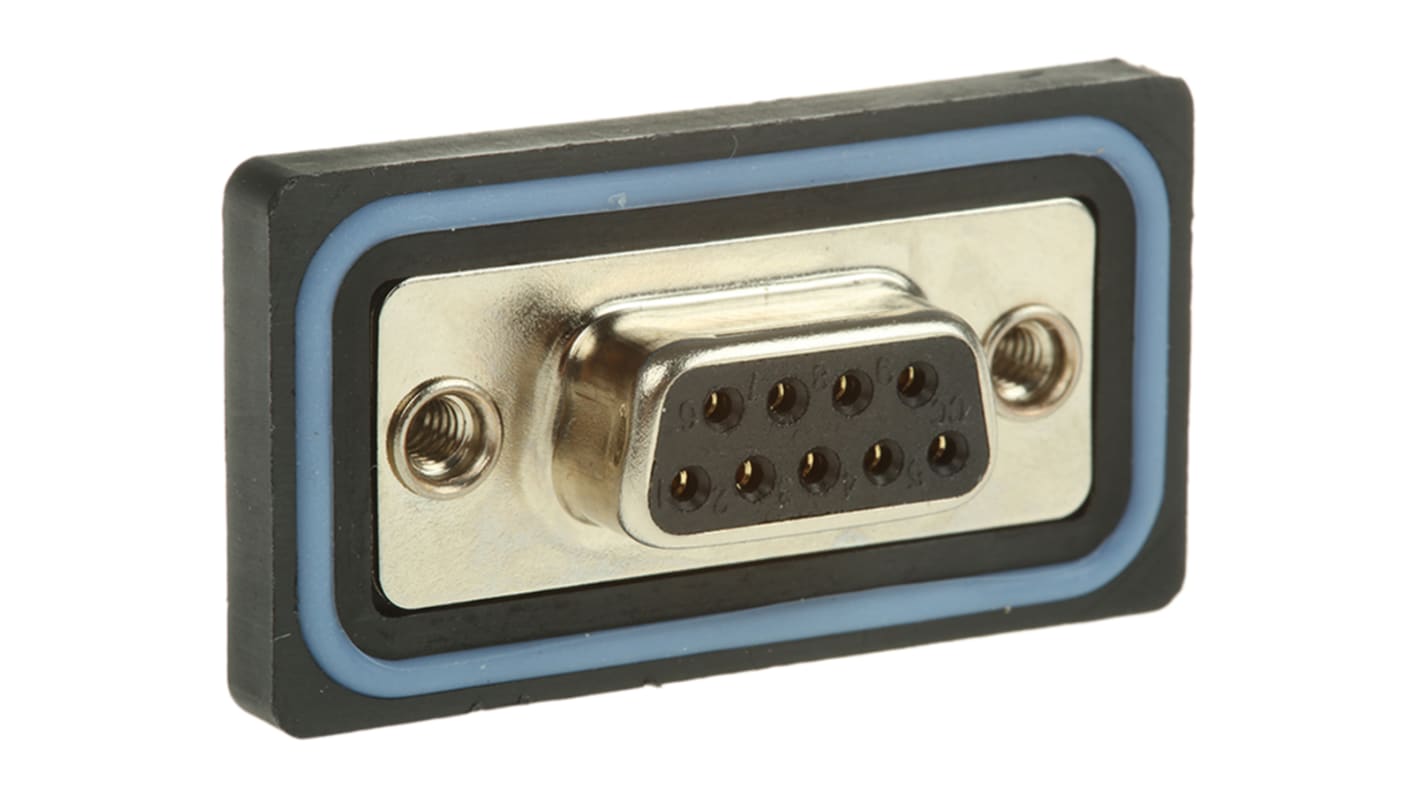

ASSMANN WSW A-DF 9 Way Panel Mount D-sub Connector Socket, 2.77mm Pitch
- RS Stock No.:
- 674-1022
- Mfr. Part No.:
- A-DF 09 LL-WP
- Brand:
- ASSMANN WSW
Bulk discount available
Subtotal (1 unit)*
£9.89
(exc. VAT)
£11.87
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 13 unit(s) ready to ship
- Plus 19 unit(s) ready to ship from another location
- Plus 4 unit(s) shipping from 08 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £9.89 |
| 25 - 74 | £9.60 |
| 75 - 199 | £9.35 |
| 200 - 399 | £9.09 |
| 400 + | £8.87 |
*price indicative
- RS Stock No.:
- 674-1022
- Mfr. Part No.:
- A-DF 09 LL-WP
- Brand:
- ASSMANN WSW
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ASSMANN WSW | |
| Number of Contacts | 9 | |
| Gender | Female | |
| Body Orientation | Straight | |
| Mounting Type | Panel Mount | |
| Pitch | 2.77mm | |
| D Connector Type | Waterproof D-Sub | |
| Termination Method | Solder | |
| D-Sub Shell Size | E | |
| Current Rating | 5.0A | |
| Housing Material | Metal | |
| Voltage Rating | 250.0 V | |
| Length | 39.4mm | |
| Width | 7.0mm | |
| Depth | 21.1mm | |
| Contact Material | Brass | |
| Contact Plating | Gold, Nickel | |
| Dimensions | 39.4 x 7 x 21.1mm | |
| Series | A-DF | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40.0°C | |
Select all | ||
|---|---|---|
Brand ASSMANN WSW | ||
Number of Contacts 9 | ||
Gender Female | ||
Body Orientation Straight | ||
Mounting Type Panel Mount | ||
Pitch 2.77mm | ||
D Connector Type Waterproof D-Sub | ||
Termination Method Solder | ||
D-Sub Shell Size E | ||
Current Rating 5.0A | ||
Housing Material Metal | ||
Voltage Rating 250.0 V | ||
Length 39.4mm | ||
Width 7.0mm | ||
Depth 21.1mm | ||
Contact Material Brass | ||
Contact Plating Gold, Nickel | ||
Dimensions 39.4 x 7 x 21.1mm | ||
Series A-DF | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40.0°C | ||
