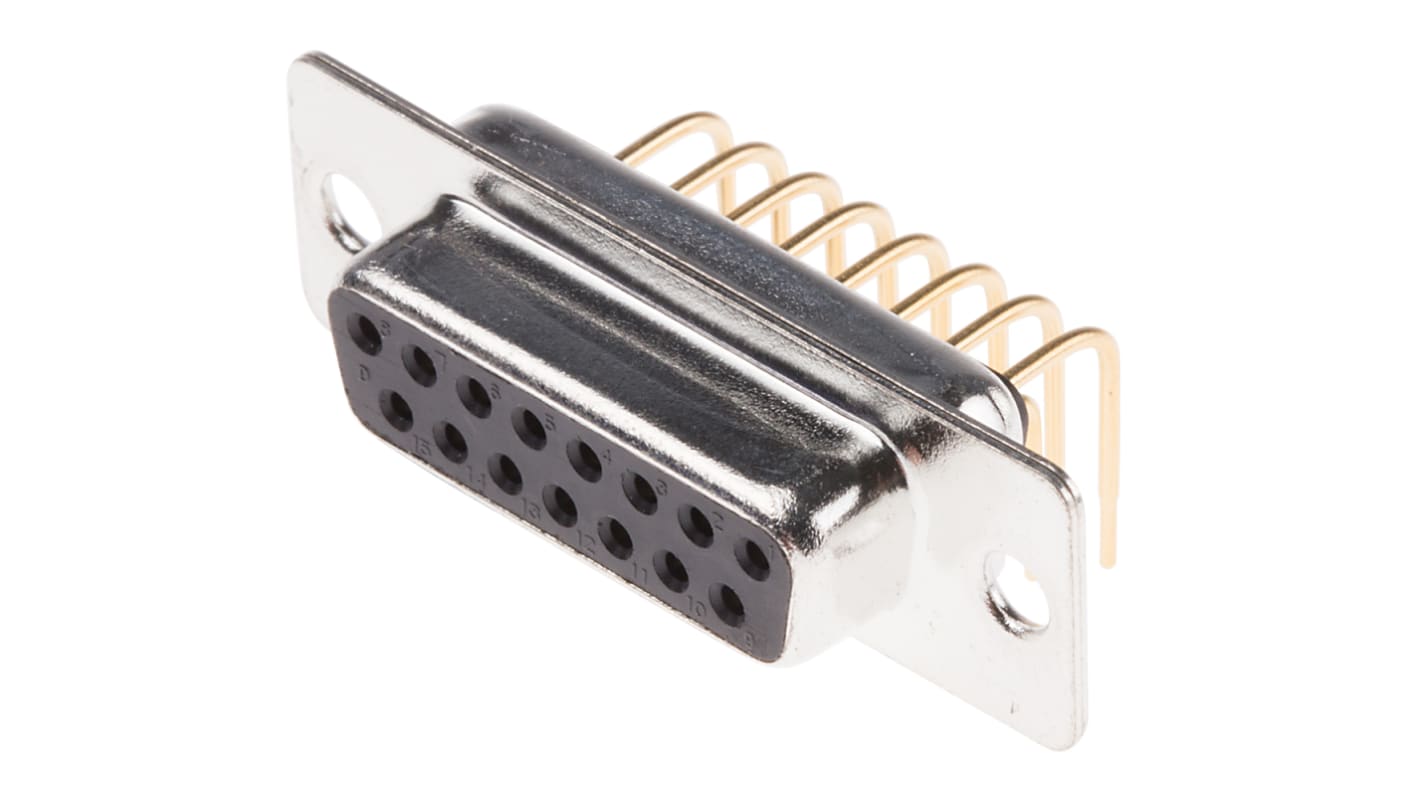

RS PRO 528 15 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector Female
- RS Stock No.:
- 528-3711
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 pack of 5 units)*
£18.89
(exc. VAT)
£22.67
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 975 unit(s) shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £3.778 | £18.89 |
| 25 + | £3.48 | £17.40 |
*price indicative
- RS Stock No.:
- 528-3711
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | D-Sub Connector | |
| Number of Contacts | 15 | |
| Current | 5A | |
| Orientation | Right Angle | |
| Mount Type | Through Hole | |
| Connector Gender | Female | |
| Housing Material | Steel | |
| Voltage | 250 V | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Contact Plating | Gold over Nickel | |
| Contact Material | Copper Alloy | |
| Series | 528 | |
| Pitch | 2.77mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type D-Sub Connector | ||
Number of Contacts 15 | ||
Current 5A | ||
Orientation Right Angle | ||
Mount Type Through Hole | ||
Connector Gender Female | ||
Housing Material Steel | ||
Voltage 250 V | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Contact Plating Gold over Nickel | ||
Contact Material Copper Alloy | ||
Series 528 | ||
Pitch 2.77mm | ||
- COO (Country of Origin):
- TW
90 deg PCB Plug & Socket
Connectors with machined contacts
With dimpled plug shels for reliable grounding
Note
The current rating for the PCB variants is 5A
Standards
HE502-MIL-C-24308
