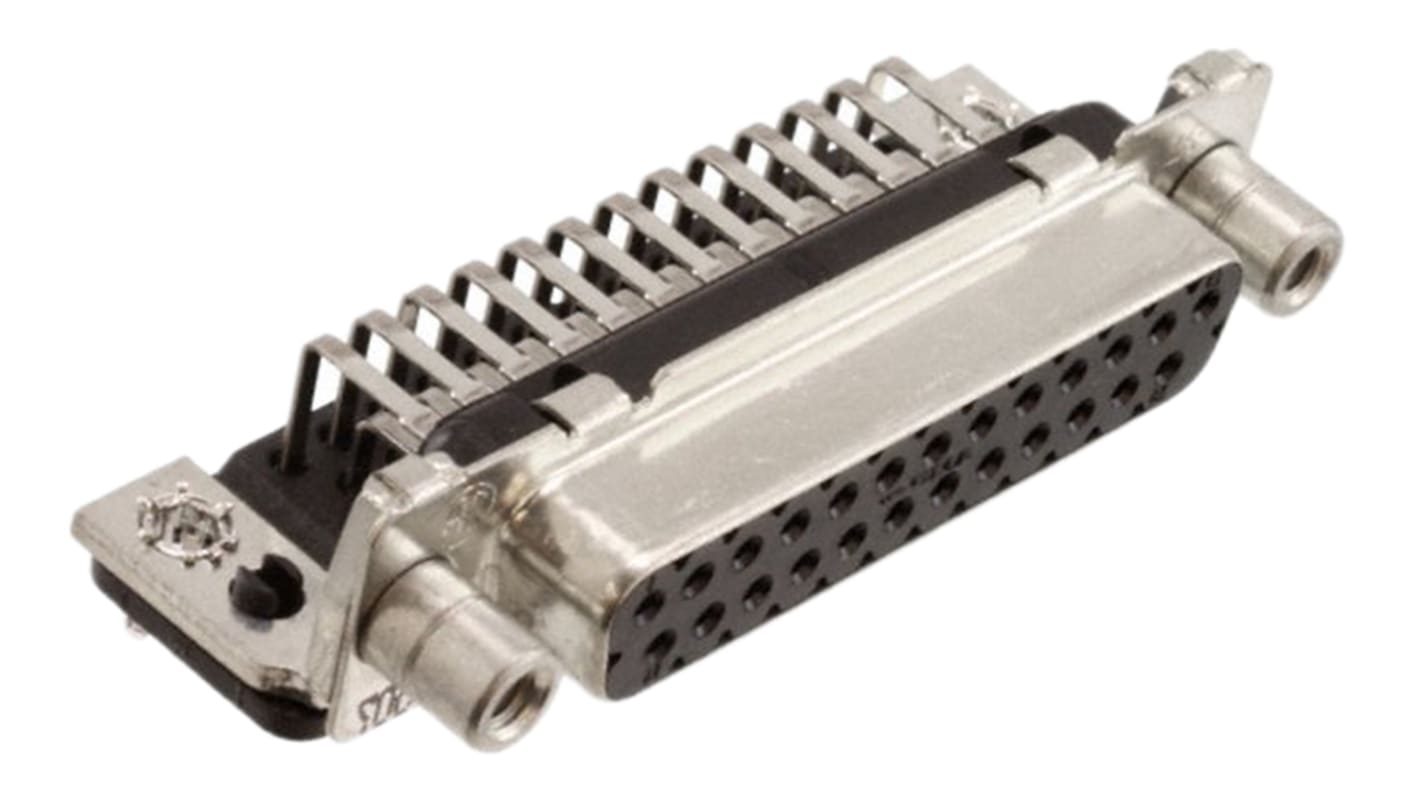

TE Connectivity Amplimite HD-20 25 Way Right Angle Through Hole D-sub Connector Socket, 2.74mm Pitch
- RS Stock No.:
- 454-3494
- Mfr. Part No.:
- 3-106507-2
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£6.71
(exc. VAT)
£8.05
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 42 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £6.71 |
| 10 - 24 | £5.71 |
| 25 - 49 | £5.04 |
| 50 - 99 | £4.36 |
| 100 + | £4.02 |
*price indicative
- RS Stock No.:
- 454-3494
- Mfr. Part No.:
- 3-106507-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 25 | |
| Gender | Female | |
| Body Orientation | Right Angle | |
| Mounting Type | Through Hole | |
| Pitch | 2.74mm | |
| D Connector Type | Standard D-Sub | |
| Termination Method | Solder | |
| D-Sub Shell Size | B | |
| Current Rating | 6.0A | |
| Housing Material | PET | |
| Length | 53.1mm | |
| Width | 13.6mm | |
| Depth | 21.3mm | |
| Series | Amplimite HD-20 | |
| Contact Plating | Gold over Nickel | |
| Dimensions | 53.1 x 13.6 x 21.3mm | |
| Contact Material | Phosphor Bronze | |
| Minimum Operating Temperature | -55.0°C | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 25 | ||
Gender Female | ||
Body Orientation Right Angle | ||
Mounting Type Through Hole | ||
Pitch 2.74mm | ||
D Connector Type Standard D-Sub | ||
Termination Method Solder | ||
D-Sub Shell Size B | ||
Current Rating 6.0A | ||
Housing Material PET | ||
Length 53.1mm | ||
Width 13.6mm | ||
Depth 21.3mm | ||
Series Amplimite HD-20 | ||
Contact Plating Gold over Nickel | ||
Dimensions 53.1 x 13.6 x 21.3mm | ||
Contact Material Phosphor Bronze | ||
Minimum Operating Temperature -55.0°C | ||
Maximum Operating Temperature +105°C | ||
AMPLIMITE D-sub Connector, European Standard Footprint, PCB Mount
AMPLIMITE right angle mounting PCB mount d-sub plug and socket connectors with a european standard footprint. These AMPLIMITE PCB d-sub connectors have a tin plated steel shell a black, glass filled polyester housing, solder terminations and are pre-loaded with gold plated phosphor bronze contacts. Various mounting hardware options are available for these AMPLIMITE PCB d-sub plug and socket connectors including 3mm holes, 4-40 inserts and 4-40 a boadlock feature is also available on some versions to ensure a secure connection to the PCB, please refer to datasheet for details.
TE Connectivity AMPLIMITE D-Subminiature Connectors
