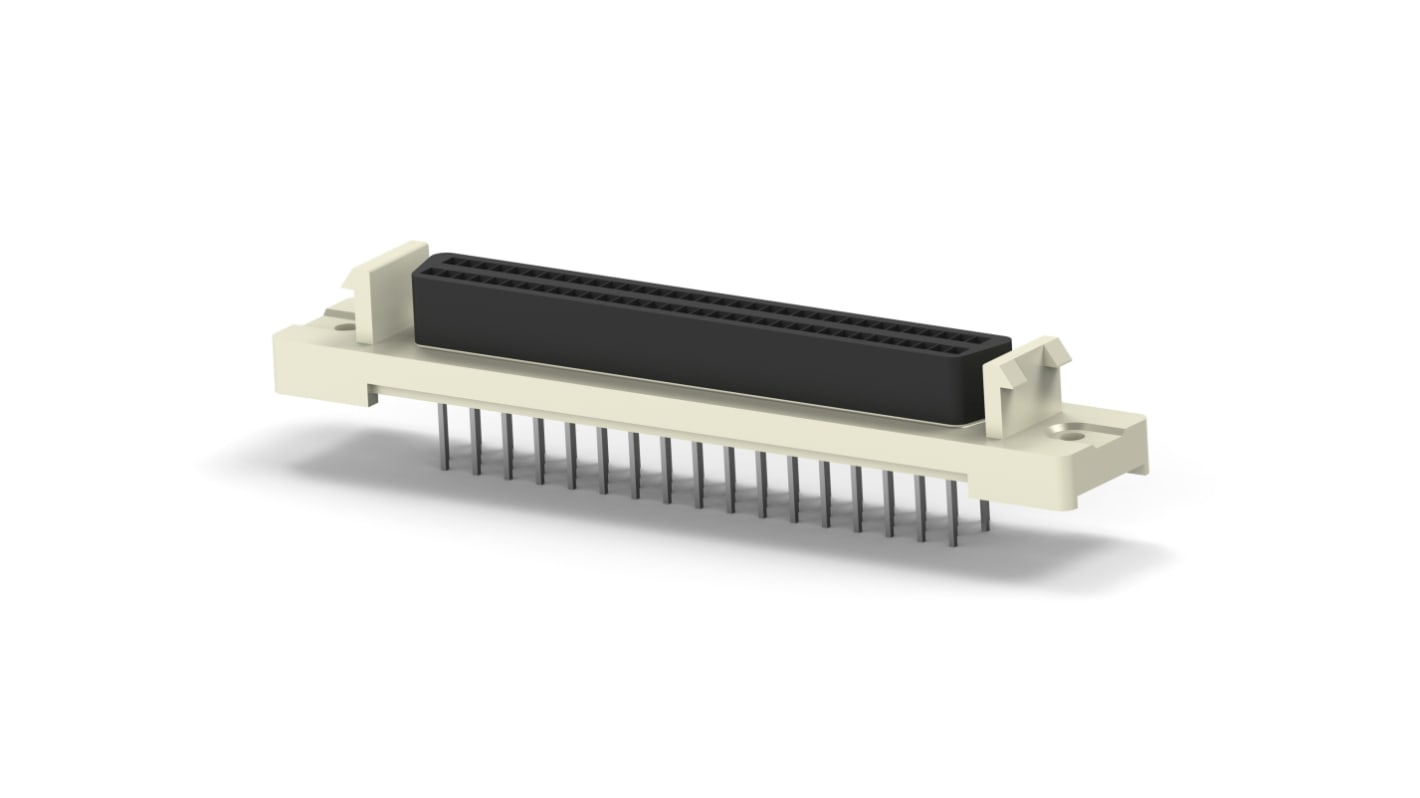

TE Connectivity 5786155 68 Way Vertical Board Mount PCB D-sub Connector Receptacle, 1.27mm Pitch, with Through Hole -
- RS Stock No.:
- 274-8577
- Mfr. Part No.:
- 5786155-7
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£33.85
(exc. VAT)
£40.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 128 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 1 | £33.85 |
| 2 - 9 | £32.90 |
| 10 - 24 | £32.01 |
| 25 - 49 | £31.17 |
| 50 + | £30.37 |
*price indicative
- RS Stock No.:
- 274-8577
- Mfr. Part No.:
- 5786155-7
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 68 | |
| Gender | Receptacle | |
| Body Orientation | Vertical | |
| Mounting Type | Board Mount | |
| Pitch | 1.27mm | |
| D Connector Type | D-Subminiature Connector | |
| Mounting Hardware | Through Hole - Press-Fit, Through Hole -Solder | |
| D-Sub Shell Size | S3 | |
| Termination Method | Press Fit, Through Hole | |
| Housing Material | Nylon/Polyester | |
| Contact Plating | Gold | |
| Series | 5786155 | |
| Dimensions | 2.54mm | |
| Contact Material | Phosphor Bronze | |
| Series Number | 5786155 | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -55°C | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 68 | ||
Gender Receptacle | ||
Body Orientation Vertical | ||
Mounting Type Board Mount | ||
Pitch 1.27mm | ||
D Connector Type D-Subminiature Connector | ||
Mounting Hardware Through Hole - Press-Fit, Through Hole -Solder | ||
D-Sub Shell Size S3 | ||
Termination Method Press Fit, Through Hole | ||
Housing Material Nylon/Polyester | ||
Contact Plating Gold | ||
Series 5786155 | ||
Dimensions 2.54mm | ||
Contact Material Phosphor Bronze | ||
Series Number 5786155 | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -55°C | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB D Sub Connectors Receptacle is a 4 row electrical connector with a centreline pitch of 1.27 mm with offering 68 positions for connecting wires to a circuit board. It is designed for cable to board connections in electronic applications. The TE Connectivity offers one of the broadest, most versatile portfolios of D sub miniature connectors in the market with unrivalled engineering support to address our customers needs. Our D Sub miniature connector portfolio is designed for multiple applications, along with specialized accessories that will provide any customer with an economical D Sub solution for any complex applications.
Lower cost alternative
Complying with MIL C 24308
Provide EMI and RFI protection
Offers backwards compatibility
Vertical PCB mount orientation
Complying with MIL C 24308
Provide EMI and RFI protection
Offers backwards compatibility
Vertical PCB mount orientation
