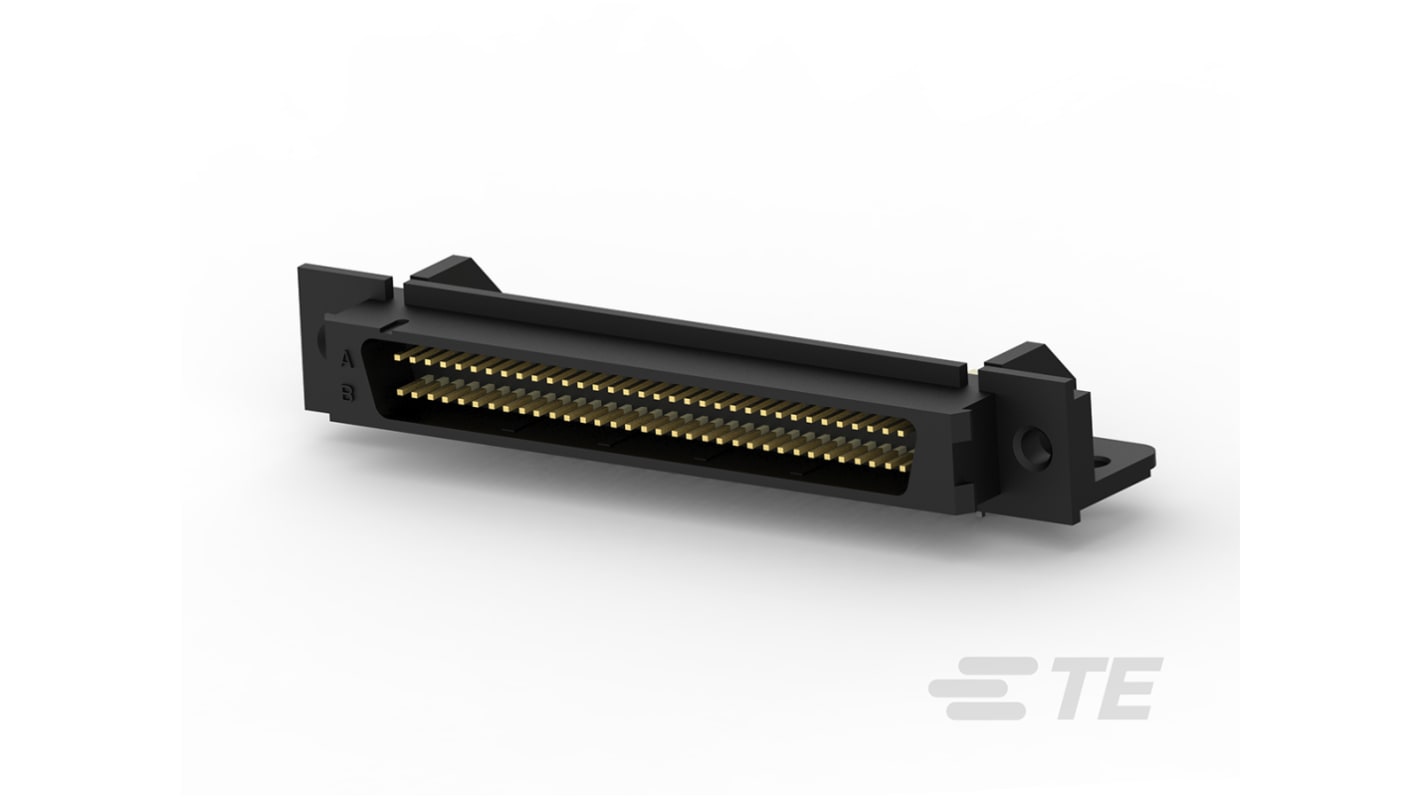

TE Connectivity 68 Way Right Angle Through Hole D-sub Connector Plug
- RS Stock No.:
- 186-4988
- Mfr. Part No.:
- 2-5174225-5
- Brand:
- TE Connectivity
22 In stock - FREE next working day delivery available
6 available from Europe for delivery within 1 working day(s).
Added
Price Each
£22.34
(exc. VAT)
£26.81
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £22.34 |
| 10 - 24 | £20.78 |
| 25 - 49 | £19.21 |
| 50 + | £18.54 |
- RS Stock No.:
- 186-4988
- Mfr. Part No.:
- 2-5174225-5
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
TE Connectivity 2-5174225-5
Shell Type=Full Metal Shell, Connector Style=Plug, Connector System=Cable-to-Board, Row-to-Row Spacing=.1 in,2.54 mm, Profile=Standard, Number of Positions=68, Number of Rows=2, PCB Mount Orientation=Right Angle, Post Plating Material=Tin over Nickel, Shield Plating Material=Nickel over Copper, Contact Base Material=Phosphor Bronze, Contact Shape & Form=Square, Contact Mating Area Plating Material=Gold, Termination Method to Printed Circuit Board=Through Hole - Solder, Termination Post Length=2.9 mm, PCB Mount Alignment=Without, PCB Mounting Style=Through Hole - Solder, PCB Mount Retention=With, PCB Mount Retention Type=Mounting Hole, Mating Connector Lock=With, Centerline (Pitch)=1.27 mm, Housing Color=Black, Operating Temperature Range=-55 – 105 °C, Circuit Application=Signal, Post Plate Flammability Rating=UL 94V-0, UL Flammability Rating=UL 94V-0, Packaging Quantity=4
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 68 |
| Gender | Male |
| Body Orientation | Right Angle |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Housing Material | PBT |
| Length | 63.9mm |
| Width | 17.3mm |
| Depth | 10.3mm |
| Contact Material | Phosphor Bronze |
| Dimensions | 63.9 x 17.3 x 10.3mm |
| Contact Plating | Gold, Tin |
| Minimum Operating Temperature | -55.0°C |
| Maximum Operating Temperature | +105°C |
