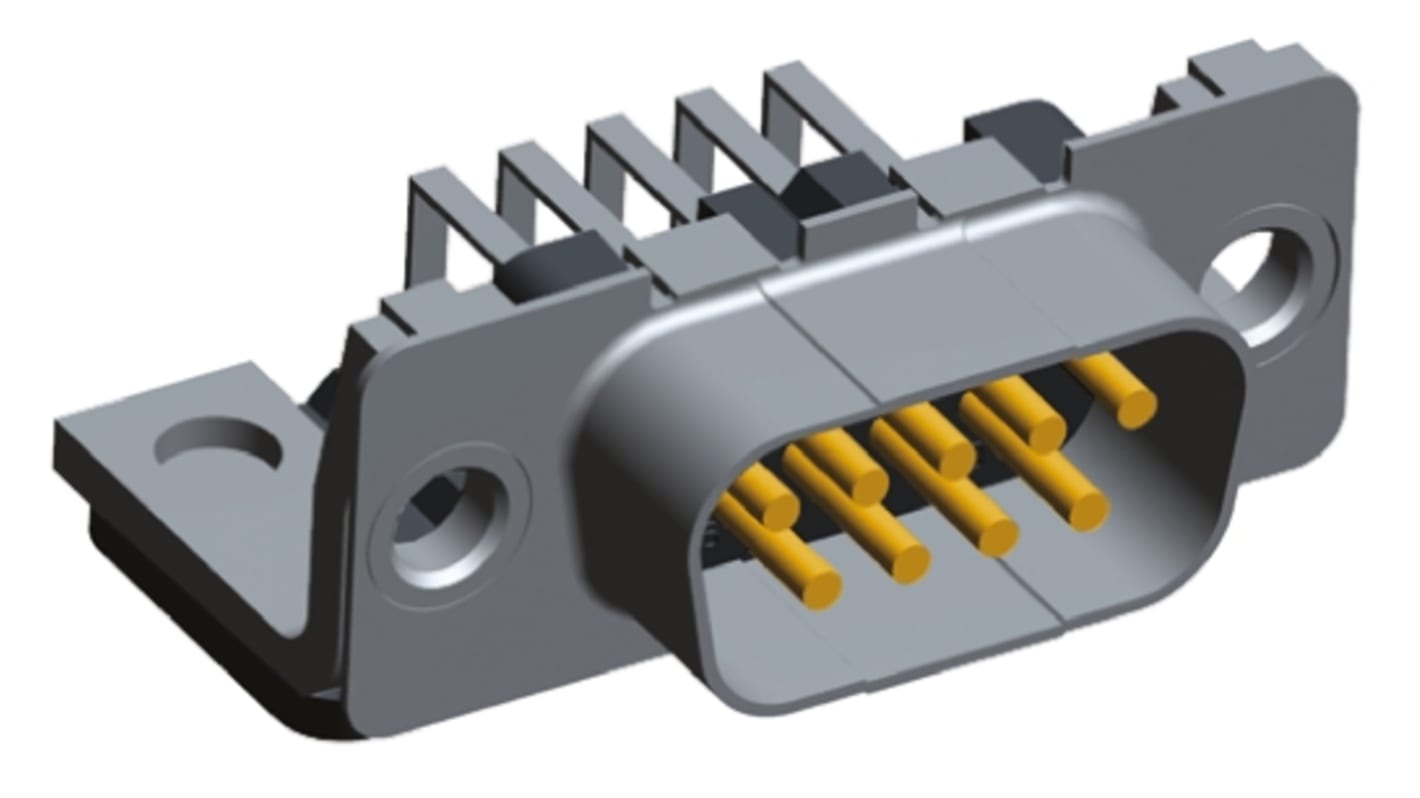

TE Connectivity Amplimite HD-20 9 Way Right Angle Through Hole D-sub Connector Plug, 2.74mm Pitch, with Mounting Hole

View all D Sub Connectors
Bulk discount available

Subtotal (1 tray of 55 units)*

£312.73

(exc. VAT)

£375.265

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 330 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tray*
55 - 55£5.686£312.73
110 - 220£4.833£265.82
275 - 495£4.264£234.52
550 +£3.696£203.28

*price indicative

D-Sub-Backshells
D Sub Backshells
Don't forget D Sub Backshells!
Shop D Sub Backshells now
RS Stock No.:
161-4893
Mfr. Part No.:
5-338168-2
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Number of Contacts

9

Gender

Male

Body Orientation

Right Angle

Mounting Type

Through Hole

Pitch

2.74mm

Mounting Hardware

Mounting Hole

Termination Method

Solder

Length

31.19mm

Width

12.39mm

Depth

20.59mm

Dimensions

31.19 x 12.39 x 20.59mm

Contact Plating

Gold

Contact Material

Copper Alloy

Series

Amplimite HD-20

COO (Country of Origin):
NL

AMPLIMITE D-sub Connector, European Standard Footprint, PCB Mount


AMPLIMITE right angle mounting PCB mount d-sub plug and socket connectors with a european standard footprint. These AMPLIMITE PCB d-sub connectors have a tin plated steel shell a black, glass filled polyester housing, solder terminations and are pre-loaded with gold plated phosphor bronze contacts. Various mounting hardware options are available for these AMPLIMITE PCB d-sub plug and socket connectors including 3mm holes, 4-40 inserts and 4-40 a boadlock feature is also available on some versions to ensure a secure connection to the PCB, please refer to datasheet for details.


TE Connectivity AMPLIMITE D-Subminiature Connectors
