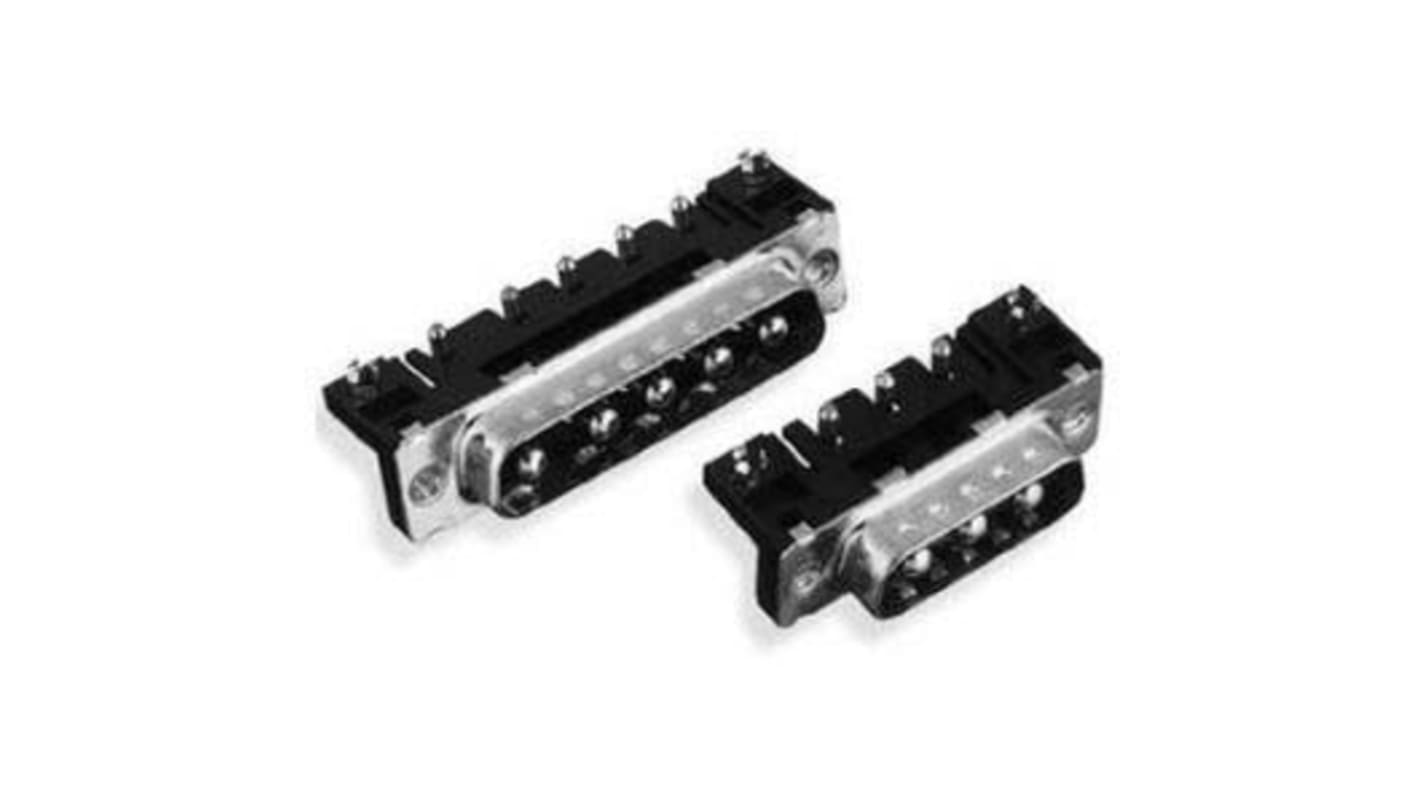

Amphenol Communications Solutions 3 Way Right Angle Plug-In Mount D-sub Connector Plug, with Screw
- RS Stock No.:
- 137-2712
- Mfr. Part No.:
- D3W3P36A6GL08LF
- Brand:
- Amphenol Communications Solutions
Bulk discount available
Subtotal (1 unit)*
£3.18
(exc. VAT)
£3.82
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 03 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £3.18 |
| 10 - 24 | £3.07 |
| 25 + | £2.98 |
*price indicative
- RS Stock No.:
- 137-2712
- Mfr. Part No.:
- D3W3P36A6GL08LF
- Brand:
- Amphenol Communications Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Communications Solutions | |
| Number of Contacts | 3 | |
| Gender | Male | |
| Body Orientation | Right Angle | |
| Mounting Type | Plug-In Mount | |
| D Connector Type | Standard D-Sub | |
| Termination Method | Solder | |
| D-Sub Shell Size | A | |
| Mounting Hardware | Screw | |
| Current Rating | 30.0A | |
| Mixed Contact Layout | 3W3 | |
| Housing Material | Thermoplastic | |
| Voltage Rating | 300.0 V | |
| Length | 39.14mm | |
| Width | 12.58mm | |
| Depth | 9.85mm | |
| Dimensions | 39.14 x 12.58 x 9.85mm | |
| Contact Material | Brass | |
| Contact Plating | Gold over Nickel | |
| Minimum Operating Temperature | -55.0°C | |
| Maximum Operating Temperature | +125°C | |
Select all | ||
|---|---|---|
Brand Amphenol Communications Solutions | ||
Number of Contacts 3 | ||
Gender Male | ||
Body Orientation Right Angle | ||
Mounting Type Plug-In Mount | ||
D Connector Type Standard D-Sub | ||
Termination Method Solder | ||
D-Sub Shell Size A | ||
Mounting Hardware Screw | ||
Current Rating 30.0A | ||
Mixed Contact Layout 3W3 | ||
Housing Material Thermoplastic | ||
Voltage Rating 300.0 V | ||
Length 39.14mm | ||
Width 12.58mm | ||
Depth 9.85mm | ||
Dimensions 39.14 x 12.58 x 9.85mm | ||
Contact Material Brass | ||
Contact Plating Gold over Nickel | ||
Minimum Operating Temperature -55.0°C | ||
Maximum Operating Temperature +125°C | ||
- COO (Country of Origin):
- IN
FCI’s D-Subminiature (D-Sub) connectors are part of an industry standard for applications requiring robust and reliable connectors. These proven D-Sub connectors are one of the most popular Input /Output interconnects, addressing a wide variety of applications in telecommunications, data, consumer, industrial & instrumentation, military and medical.
Power connectors available for PCB & Cable applications
Available in full power and in mixed layout (signal + power) – 2V2 to 36W4
Power contacts available in solder, crimp & coaxial types with different current rating options
Frugal-D design (2 shells + 2 housings) & Delta-D design (1 shell + 1 housing)
RoHS compliant
Available in full power and in mixed layout (signal + power) – 2V2 to 36W4
Power contacts available in solder, crimp & coaxial types with different current rating options
Frugal-D design (2 shells + 2 housings) & Delta-D design (1 shell + 1 housing)
RoHS compliant
