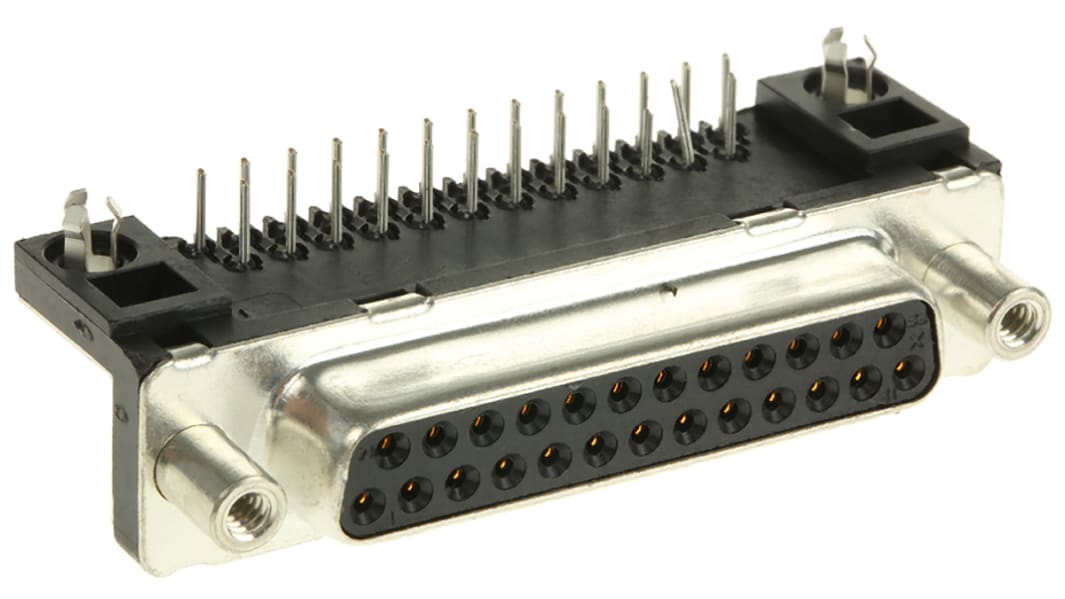

Amphenol Communications Solutions Delta D 25 Way Right Angle Through Hole D-sub Connector Socket, 2.76mm Pitch
- RS Stock No.:
- 542-8065
- Mfr. Part No.:
- D25S13A4GV00LF
- Brand:
- Amphenol Communications Solutions
Bulk discount available
Subtotal (1 unit)*
£2.49
(exc. VAT)
£2.99
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 240 unit(s) shipping from 11 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £2.49 |
| 10 - 24 | £2.25 |
| 25 + | £2.05 |
*price indicative
- RS Stock No.:
- 542-8065
- Mfr. Part No.:
- D25S13A4GV00LF
- Brand:
- Amphenol Communications Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Communications Solutions | |
| Number of Contacts | 25 | |
| Gender | Female | |
| Body Orientation | Right Angle | |
| Mounting Type | Through Hole | |
| Pitch | 2.76mm | |
| Termination Method | Solder | |
| Current Rating | 5.0A | |
| Voltage Rating | 300.0 V | |
| Length | 53.03mm | |
| Width | 13.48mm | |
| Depth | 20.82mm | |
| Contact Plating | Gold over Nickel | |
| Dimensions | 53.03 x 13.48 x 20.82mm | |
| Series | Delta D | |
| Minimum Operating Temperature | -55.0°C | |
| Maximum Operating Temperature | +125°C | |
Select all | ||
|---|---|---|
Brand Amphenol Communications Solutions | ||
Number of Contacts 25 | ||
Gender Female | ||
Body Orientation Right Angle | ||
Mounting Type Through Hole | ||
Pitch 2.76mm | ||
Termination Method Solder | ||
Current Rating 5.0A | ||
Voltage Rating 300.0 V | ||
Length 53.03mm | ||
Width 13.48mm | ||
Depth 20.82mm | ||
Contact Plating Gold over Nickel | ||
Dimensions 53.03 x 13.48 x 20.82mm | ||
Series Delta D | ||
Minimum Operating Temperature -55.0°C | ||
Maximum Operating Temperature +125°C | ||
- COO (Country of Origin):
- IN
90° Delta D Connectors
Connectors with a pitch of 2.54 mm between rows, with riveted female latches
Suitable for military, industrial or commercial applications and computer interfacing etc
With harpoons and female 4-40UNC screw
Suitable for military, industrial or commercial applications and computer interfacing etc
With harpoons and female 4-40UNC screw
Standards
HE-5; DIN-41652; MIL-C-24308
