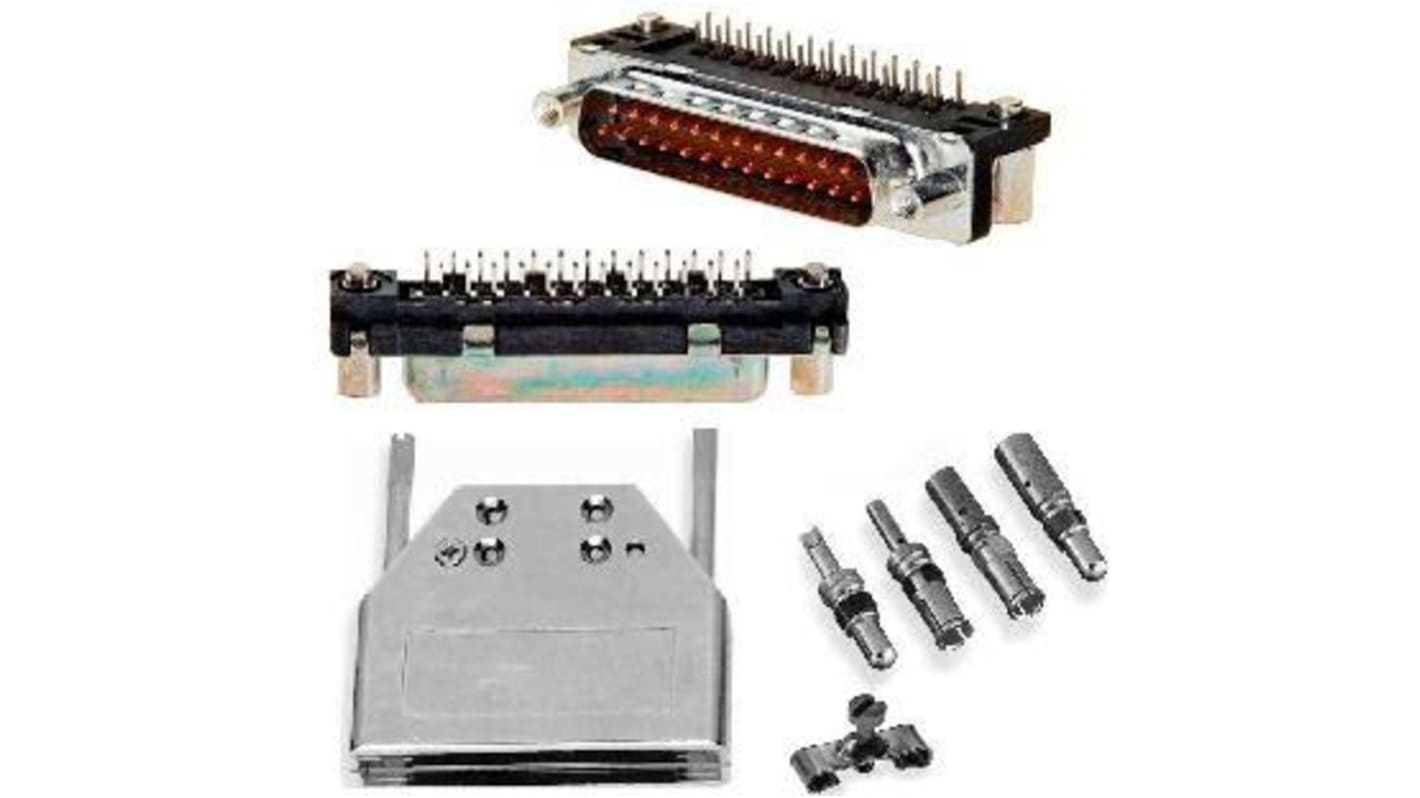

Amphenol ICC ID 25 Way Right Angle Plug-In Mount D-sub Connector Plug, 2.76mm Pitch, with Screw

RS Stock No.:: 137-2682
Mfr. Part No.:: ID25P33E4GV00LF
Brand:: Amphenol ICC

Amphenol ICC ID 25 Way Right Angle Plug-In Mount D-sub Connector Plug, 2.76mm Pitch, with Screw

70 In stock - FREE next working day delivery available

Added

Price Each (In a Pack of 5)

£0.832

(exc. VAT)

£0.998

(inc. VAT)

Units	Per unit	Per Pack*
5 +	£0.832	£4.16
*price indicative

RS Stock No.:: 137-2682
Mfr. Part No.:: ID25P33E4GV00LF
Brand:: Amphenol ICC

Technical Reference

25W RIGHT ANGLE D-SUB PLUG drawing

Legislation and Compliance

COO (Country of Origin):: IN

Product Details

The Amphenol ICC D-sub connector plug is ID series which has 25 way right angle through hole, 2. 76mm of pitch and plug in mounting type.

Termination Method: Solder
Gender: Male
Voltage Rating: 1.0 kV

Specifications

Attribute	Value
Number of Contacts	25
Gender	Male
Body Orientation	Right Angle
Mounting Type	Plug-In Mount
Pitch	2.76mm
D Connector Type	Standard D-Sub
Mounting Hardware	Screw
Termination Method	Solder
Mixed Contact Layout	25W2
Current Rating	5.0A
Housing Material	Polyester
Voltage Rating	300.0 V
Length	53.03mm
Width	12.58mm
Depth	18.3mm
Series	ID
Dimensions	53.03 x 12.58 x 18.3mm
Contact Material	Copper Alloy
Minimum Operating Temperature	-55.0°C
Maximum Operating Temperature	+125°C
