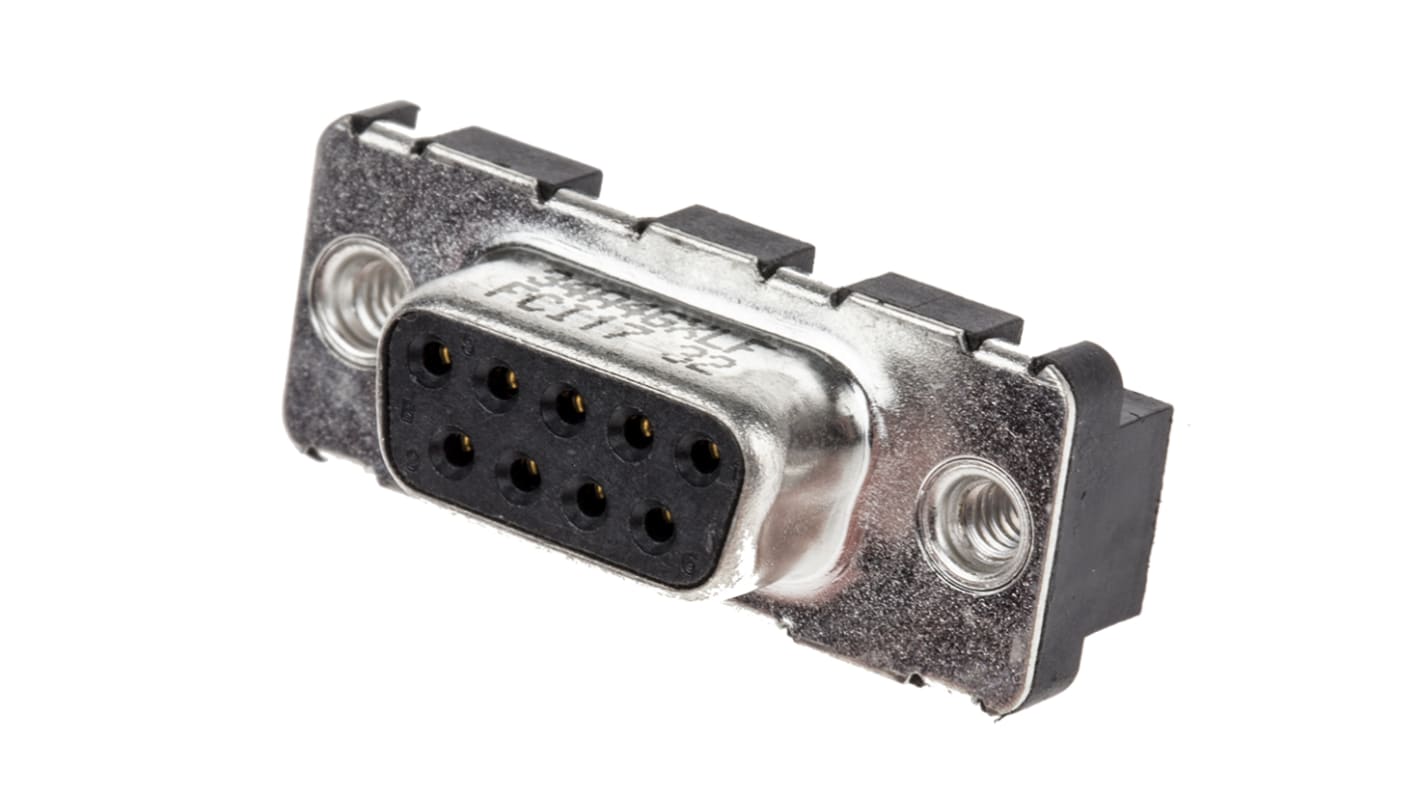

Amphenol ICC 9 Way Plug-In Mount D-sub Connector Socket, 2.74mm Pitch, with Screw
- RS Stock No.:
- 137-2569
- Mfr. Part No.:
- D09S34A4GX00LF
- Brand:
- Amphenol ICC
Available to back order for despatch 10/09/2024
Added
Price Each (In a Tray of 30)
£1.313
(exc. VAT)
£1.576
(inc. VAT)
| Units | Per unit | Per Tray* |
| 30 + | £1.313 | £39.39 |
| *price indicative | ||
- RS Stock No.:
- 137-2569
- Mfr. Part No.:
- D09S34A4GX00LF
- Brand:
- Amphenol ICC
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details
The Amphenol ICC D-sub connector plug is Delta D series which has 9 way right angle through hole, 2. 74mm of pitch and plug in mounting type.
Termination Method: Solder
Gender: Female
Voltage Rating: 300 V
Gender: Female
Voltage Rating: 300 V
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 9 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Plug-In Mount |
| Pitch | 2.74mm |
| D Connector Type | Standard D-Sub |
| Termination Method | Solder |
| Mounting Hardware | Screw |
| Mixed Contact Layout | 9W2 |
| Length | 30.81mm |
| Width | 12.55mm |
| Depth | 13.07mm |
| Contact Material | Phosphor Bronze |
| Dimensions | 30.81 x 12.55 x 13.07mm |
